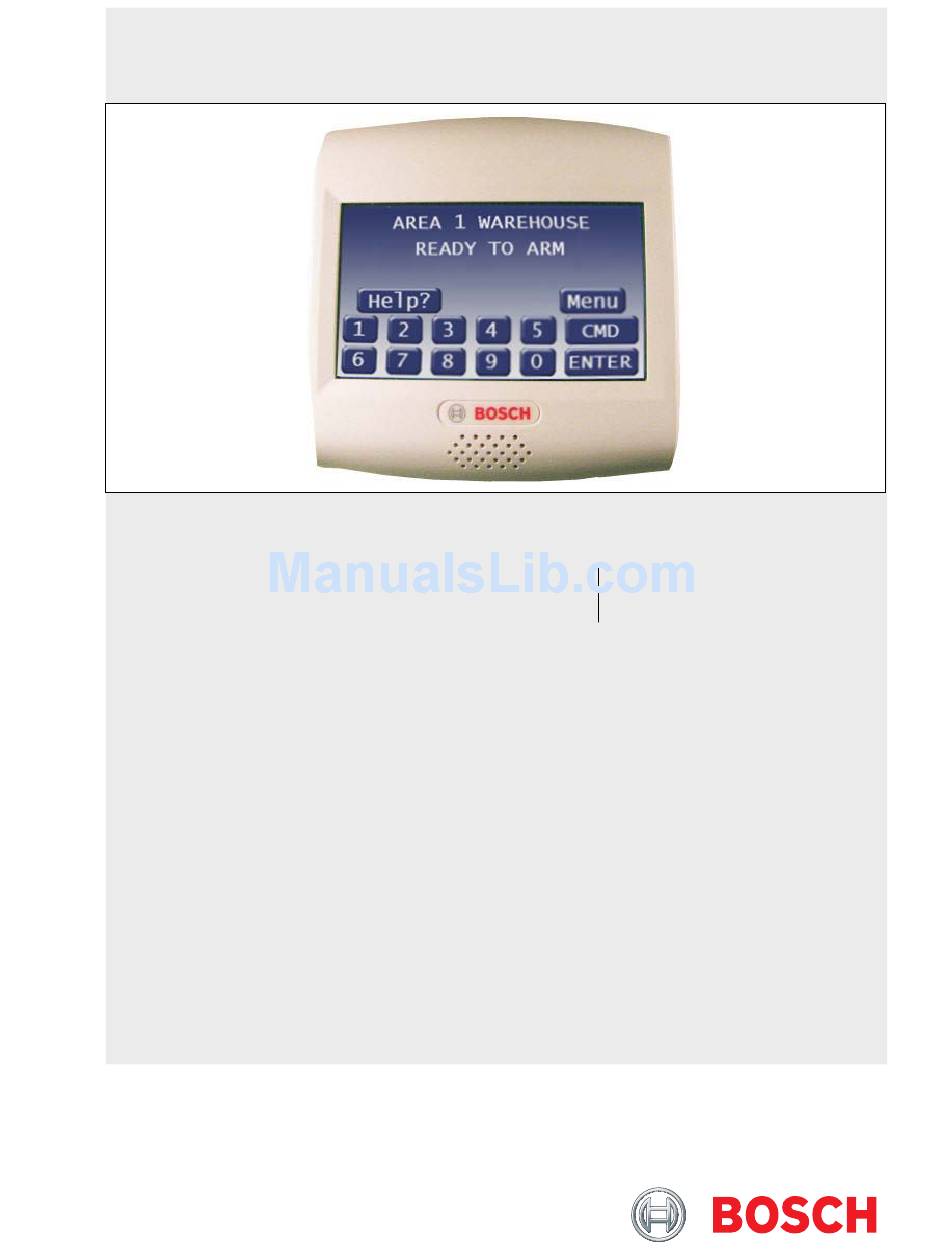

Your Keypad The D1265 keypad uses up to four rows of 20 characters each to display system messages and graphical buttons used to select a menu and associated functions. In addition to system messages and buttons, the keypad shows, as needed, ten numerical buttons (0 to 9) and two function buttons (CMD and ENTER).
D1265 | Owner's Manual | Part I: Security System Basics Part I: Security System Basics Using the keypad Pressing the Previous or Next button while in the Your security system provides quick access to functions Menu List allows you to scroll through the list of...
Page 8
D1265 | Owner's Manual | Part I: Security System Basics Fire Points Fire points exclusively monitor fire detection devices. They are always armed and cannot be disarmed. You can clearly distinguish fire points from other non-fire points at the keypad.
D1265 | Owner's Manual | Part I: Security System Basics Your Custom Display “At an idle state” means that the system is not currently performing a function entered by a user. There are three idle states the system might be in: ...
D1265 | Owner's Manual | Part I: Security System Basics View Faulted or Bypassed Points Warning Displays and Tones To properly arm your system, all the exterior points Your keypad emits one of several distinct tones and (doors and windows) and interior points (motion displays custom text to alert you to system events.
D1265 | Owner's Manual | Part I: Security System Basics Fire Alarms Fire alarms are the highest priority events. When a fire point activates, your keypad emits a pulsating high- pitched fire tone. Evacuate all occupants and investigate for smoke or fire. Ensure that all occupants know the difference between the burglary tone and the fire tone.
D1265 | Owner's Manual | Part I: Security System Basics Burglary Alarms Fire Trouble and Fire Supervisory Events Burglary alarms are the second priority. When a When a fire trouble or fire supervisory condition burglary point activates while your system is armed, occurs, your keypad emits three warble tones, then a your keypad emits a steady high-pitched burglary tone.
D1265 | Owner's Manual | Part I: Security System Basics Entry Delay Tone and Display Non-Fire Trouble and Supervisory Events When you enter an armed system through a point When a trouble event occurs, your keypad might be programmed for entry delay, the keypad emits a...
D1265 | Owner's Manual | Part I: Security System Basics How Your System Reports Alarms Your security system might be programmed to automatically seize your telephones when sending reports to your security company. Once the report is completed, your security system restores the telephone line to normal operation (check with your security company).
D1265 | Owner's Manual | Part II: System Commands Table 2: Keypad Commands Part II: System Commands Some of these functions might not be COMMAND Function available in your system. Please consult Master Arm your security company to determine which...
D1265 | Owner's Manual | Part II: System Commands Turning the System Off (Disarming) Passcode Protected Commands and Functions Entering your personal passcode turns off your security system. When the system is turned on, you must enter Commands and/or Functions within your system...
D1265 | Owner's Manual | Part II: System Commands Turning On the System (Arming) With a Turning On the System (Arming) With Duress Passcode Doors or Windows Open Your passcode might have a special duress feature that If a protected door or window is open, you might have can be your personal passcode with its last digit the option of “force arming”...
Page 18
D1265 | Owner's Manual | Part II: System Commands 6. Once the last bypassed point is shown, the display changes to show the button to either force arm the faulted points (Force Arm) or force arm the faulted/bypassed points (Force/Bypass Arm).
D1265 | Owner's Manual | Part II: System Commands Master Arm (CMD + 1) 5. If your system is programmed to require a passcode when performing a CMD 1, the Description display prompts you to enter your passcode. Use this function to turn on both the perimeter and The passcode is shown as asterisks (*).
D1265 | Owner's Manual | Part II: System Commands Master Arming all Areas 9. To arm all available areas, press the Arm button when the display reads Master Arm All. If you prefer, you might use the Master Arm command in the function list. Press the Menu button to access the function list configured in the keypad.
D1265 | Owner's Manual | Part II: System Commands Master Arm Instant (CMD + 1 + 1) Perimeter Instant (CMD + 2) Use this function to turn on a single area, both Turn On the Perimeter With No Delays perimeter and interior without delays. When entering...
D1265 | Owner's Manual | Part II: System Commands 4. The display shows Perimeter On Instant. 4. The display shows Exit Now! # seconds remaining (# = exit delay time remaining). After arming the perimeter without delays, you cannot enter or exit the premises without After the exit delay expires, Perimeter On disarming the system.
D1265 | Owner's Manual | Part II: System Commands Silence Trouble Sound/Clear Trouble View Alarm Memory (CMD + 4 + 0) Display (CMD + 4) Description Description Your system stores events that occurred since the last time memory was cleared. Use CMD 40 to view Alarm Use CMD 4 to silence the trouble sounder during Memory.
D1265 | Owner's Manual | Part II: System Commands If there are no events to view, There are If you prefer, you might use the function currently no events in memory shows. list in place of Steps 2 and 3 to initiate this function.
D1265 | Owner's Manual | Part II: System Commands 6. Move through this list by pressing the Next Pt Reset Sensors (CMD + 4 + 7) button. Description Detection devices, such as smoke detectors and shock sensors, must be reset after being activated. This function momentarily removes power from these sensors to reset them.
D1265 | Owner's Manual | Part II: System Commands Entering Watch Mode Watch Mode (CMD + 6) 1. The display shows disarmed idle text. Description 2. Press the CMD button. The display shows With your security system disarmed, you can use *System Command*.
D1265 | Owner's Manual | Part II: System Commands Perimeter Partial (CMD + 8) If you prefer, you might use the function list in place of Steps 2 and 3 to initiate Partially Turn On the Perimeter this function. Description...
D1265 | Owner's Manual | Part II: System Commands 5. The display prompts the user to exit the area Special Alerts (CMD + 7 and CMD + 9) and starts counting down # seconds to arm the Description system. Commands 7 and 9 can be programmed to respond to specific situations that might need immediate attention.
D1265 | Owner's Manual | Part II: System Commands Using Command 9 1. Ensure the display shows disarmed idle text. 2. Press the CMD button. The display shows *System Command*. 3. Press the 9 button. If you prefer, you might use the function list in place of Steps 2 and 3 to initiate this function.
D1265 | Owner's Manual | Part III: Advanced Commands Part III: Advanced Commands Use this section of the manual to perform advanced system functions like add and delete user passcodes, reassign authority levels to user passcodes and operate or change programmed scheduled events (Skeds) from the keypads.
D1265 | Owner's Manual | Part III: Advanced Commands User Passcodes A three to six digit number entered at a keypad to access the system. 5. The display changes to show Enter point Bypass a Point (CMD + 0) number or press next key.
Page 32
D1265 | Owner's Manual | Part III: Advanced Commands P3 ENTRY DELAY is now bypassed indicates 7. If the bypassed point is a Fire Point, the the point was successfully bypassed. message Fire Point Bypassed begins alternating in the display with A1 Area Is Off.
D1265 | Owner's Manual | Part III: Advanced Commands Unbypass A Point (CMD + 0 + 0) 6. If digits are pressed, the display shows Enter point number: #. As soon as a digit button is Description pressed, the display changes to Entering point...
D1265 | Owner's Manual | Part III: Advanced Commands No additional points indicates that there are Send Report (CMD + 4+1 or 4+2) no more points that can be bypassed. Description This function tests the communication link between your security system and your security company. It is an important part of maintaining a high level of security for your property.
D1265 | Owner's Manual | Part III: Advanced Commands 6. When the transmission is complete the keypad Remote Program (CMD + 4 + 3) shows Report sent for 5 sec. Description This function allows the user to initiate Remote Programming Software (RPS) sessions. When the phone is ringing at the control panel, the user initiates this function to have the control panel seize the line.
D1265 | Owner's Manual | Part III: Advanced Commands If you prefer, you might use the function If you prefer, you might use the function list in place of Steps 2 and 3 to initiate list in place of Steps 2 and 3 to initiate this function.
D1265 | Owner's Manual | Part III: Advanced Commands Change Time/Date (CMD + 4 + 5) If you prefer, you might use the function list in place of Steps 2 and 3 to initiate The time and date in your system must be correct for this function.
Page 38
D1265 | Owner's Manual | Part III: Advanced Commands Enter the new time using a 12-hour (HH:MM) format. 8. Press the ENTER button. Example: If the desired time is 12:34, press 1 The Time/Date Display button is used to show + 2 + 3 + 4 how the time and date entered appears.
D1265 | Owner's Manual | Part III: Advanced Commands Door Control (CMD + 4 + 6) 4. The display changes and shows all authorized choices of Cycle Door, Unlock Door, and Description Secure Door. There are three functions with the door control function: ...
Page 40
D1265 | Owner's Manual | Part III: Advanced Commands 4. The display changes to show that all the doors 2. The display reads *Secure Door*1 2 3 4 5 6 7 8 are at a normal state except for Door 3, which is if all door are at a normal state and are cycled.
D1265 | Owner's Manual | Part III: Advanced Commands Access Level 9. After selecting whether to disable or enable the level, the display prompts you again to enter an This function is used to manually enable/disable access Authority Level to modify.
D1265 | Owner's Manual | Part III: Advanced Commands Change Display (CMD + 4 + 9) Extend Closing (CMD + 5 + 1) Your system might be programmed to expect you to Show Continuous Time/Date arm within a scheduled closing window, which is a...
Page 43
D1265 | Owner's Manual | Part III: Advanced Commands If you have not armed or extended closing, the Please If you prefer, you might use the function Close Now message and beep reappears after 10 list in place of Steps 2 and 3 to initiate minutes.
D1265 | Owner's Manual | Part III: Advanced Commands Chg Skeds (CMD + 5 + 2) When an appears in the Sked display, it is an indication that “Except on Holidays” is enabled. Description Specific holidays are programmed by your A Sked is a function programmed to be performed security company.
D1265 | Owner's Manual | Part III: Advanced Commands Table 4: Sked Table SKED # Except on Time Date Day of Week Function Holiday SKED 1 Yes / No S M T W T F S SKED 2 Yes / No...
D1265 | Owner's Manual | Part III: Advanced Commands Delete User (CMD + 5 + 3) If the user number entered is not a valid user in the system, the display shows This user is This function allows a user to be deleted.
D1265 | Owner's Manual | Part III: Advanced Commands Change Relay (CMD + 5 + 4) 5. If the relay is valid and turned off, the display changes to Change Relay* Relay 123 is Your security company might program relays for currently off.
D1265 | Owner's Manual | Part III: Advanced Commands 7. If the new passcode is valid, the display changes If you prefer, you might use the function to Enter new passcode again: list in place of Steps 2 and 3 to initiate this function.
Page 49
D1265 | Owner's Manual | Part III: Advanced Commands Contact your security company if you don’t know what 4. The display changes to show Add / Change user numbers, authority levels, or areas are available. User Enter user #: Refer to the Appendix on page 67 for further information on adding passcodes.
Page 50
D1265 | Owner's Manual | Part III: Advanced Commands Add/Change Passcode If your system has a door access control available in the control panel, this menu allows 1. Pressing the Passcode button allows you to the following User items to be changed: add/change a user’s passcode.
Page 51
D1265 | Owner's Manual | Part III: Advanced Commands If a duplicate passcode is entered, the keypad The display changes to Enter new passcode momentarily reads Passcode is already in use. again: Please try again. Enter the new passcode again.
Page 52
D1265 | Owner's Manual | Part III: Advanced Commands Add/Change Level Press the No button to advance to Add/Change Passcode (if the control panel 1. Pressing the Level button allows you to does not have access control) or to Change Sub- add/change a user’s authority level.
Page 53
D1265 | Owner's Manual | Part III: Advanced Commands Adding/Changing a User’s Name Another option is to use the numeric buttons to add characters to the text. For the buttons with 1. Pressing the Continue button once you enter a...
D1265 | Owner's Manual | Part III: Advanced Commands Add/Change Card Add/Change Sub-User ID For each user in the control panel with access control, 1. Pressing the Card button allows you to there can be up to four access cards; one Master User add/change a user’s access card or credential.
D1265 | Owner's Manual | Part III: Advanced Commands 6. If the card is accepted, the display changes to Fire Test (CMD + 5 + 8) either Card added or Card changed if the Use this function to test fire points and other 24-hour card already exists in your system.
Page 56
D1265 | Owner's Manual | Part III: Advanced Commands 4. When the display shows ### points remain to 7. During the Fire Test you might want to refer to be tested you can begin. (### is the number of the points that remain untested by pressing the points).
D1265 | Owner's Manual | Part III: Advanced Commands Display Rev (CMD + 5 + 9) Service Menu (9 + 9 + Enter) The service menu is used to access the following 1. Ensure your keypad shows idle disarmed text.
D1265 | Owner's Manual | Part III: Advanced Commands Using View Log Using Print Log 1. Press the View Log button. 1. Press the Print Log button. 2. The display changes to Enter start date: 2. The display changes to Enter start date:...
D1265 | Owner's Manual | Part III: Advanced Commands Using Default Text Using Service Walk Test This function allows the current state of the area for 3 The Service Walk Test function is only sec before returning to idle text.
D1265 | Owner's Manual | Part IV: Multi-Area Use Watch Mode Part IV: Multi-Area Use CMD 7 CMD 9 Working with Multiple Areas from a Single A last group of functions don’t relate to specific areas Keypad and are thus system-wide.
D1265 | Owner's Manual | Part IV: Multi-Area Use View Point Status Table 5: Screen Area Definitions Use this function to identify the number or location of each point in an area, and to show the current Line # Area Definition condition of any point you select.
D1265 | Owner's Manual | Part IV: Multi-Area Use Move To Area (CMD + 5 + 0) If the user's authority level will not permit access to a certain area and that area is With this function you can perform tasks in an area not within the scope of the keypad, or the other than the one you’re in without having to...
D1265 | Owner's Manual | Part IV: Multi-Area Use 4. The display changes and shows Master Arm 2. The keypad shows the following: All with the following options: Previous button– scrolls to the last area that can be armed (based on passcode and authority level) ...
D1265 | Owner's Manual | Part IV: Multi-Area Use Turn On the Entire System Without Delays 6. Pressing the Arm button causes AREA 1 WAREHOUSE is now arming… to display for You can use this function list function to turn on the...
D1265 | Owner's Manual | Part IV: Multi-Area Use Turning Off the System 4. If entering through a door which is part of an area that is armed, the display instructs you to Turning Off Multiple Areas with a Passcode enter your passcode to disarm.
D1265 | Owner's Manual | Part IV: Multi-Area Use Turning Off Selected Areas If your passcode has the proper authority level this function allows you to turn off areas other than the one you are in. 1. The display initially shows that the system is armed.
Door Control CMD 46 Cycle Door Unlock Door Secure Door Access Control Level Change Display CMD 49 Change Time/Date CMD 45 Change Passcode CMD 55 Add User CMD 56 Del User CMD 53 Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
I = Disarm to Perimeter Instant, D = Disarm All, Blank = No Disarm Rights Disarm Level Function Level M = Any Armed State, D = Disarmed state, C = Any Armed Function Level state, Blank = Function disabled Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
User (Token) Worksheet (User 000 to 038) D9412GV3/D7412GV3/D9412GV2/D7412GV2 Only Master ID ###-0 Sub-User ###-1 Sub-User ###-2 Sub-User ###-3 Site Card Data Site Card Data Site Card Data Site Card Data Not Available Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
User (Token) Worksheet (User 039 to 075) D9412GV3/D7412GV3/D9412GV2/D7412GV2 Only User Master ID ###-0 Sub-User ###-1 Sub-User ###-2 Sub-User ###-3 Site Card Data Site Card Data Site Card Data Site Card Data Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
User (Token) Worksheet (User 076 to 114) D9412GV3/D7412GV3/D9412GV2/D7412GV2 Only (101-249 = D9412GV3/D9412GV2 only) User Master ID ###-0 Sub-User ###-1 Sub-User ###-2 Sub-User ###-3 Site Card Data Site Card Data Site Card Data Site Card Data Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
User (Token) Worksheet (User 115 to 150) (101-249 = D9412GV3/D9412GV2 only) User Master ID ###-0 Sub-User ###-1 Sub-User ###-2 Sub-User ###-3 Site Card Data Site Card Data Site Card Data Site Card Data End RADXUSR1 Handler Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
User (Token) Worksheet (User 151 to 189) (101-249 = D9412GV3/D9412GV2 only) User Master ID ###-0 Sub-User ###-1 Sub-User ###-2 Sub-User ###-3 Site Card Data Site Card Data Site Card Data Site Card Data Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
User (Token) Worksheet (User 190 to 226) D9412GV3/D7412GV3/D9412GV2/D7412GV2 Only (101-249 = D9412GV3/D9412GV2 only) User Master ID ###-0 Sub-User ###-1 Sub-User ###-2 Sub-User ###-3 Site Card Data Site Card Data Site Card Data Site Card Data Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
User (Token) Worksheet (User 227 to 249) (101-249 = D9412GV3/D9412GV2 only) User Master ID ###-0 Sub-User ###-1 Sub-User ###-2 Sub-User ###-3 Site Card Data Site Card Data Site Card Data Site Card Data Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
If the AC power supply is OFF and the back-up recommended that you test your system once a week battery is either missing or dead, sensors will not to be sure that all system components are working detect intrusion. properly. Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
4 - Kitchen 7. If it is determined that the alarm was accidentally sounded, the bell should be silenced, the detectors reset, and your security company notified immediately that there is no emergency situation. Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
Arming your system starts exit delay time. The keypad Indicates that the function requested can only be emits a repeating beep tone and shows Exit Now!. performed when the area is disarmed. Disarm the area to perform the function. Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
The display clears when AC power returns. Service Phone Line #1 (or #2) Indicates telephone line trouble. Call your phone company from another phone to report telephone trouble. This message might not appear in some systems. Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
Service Zonex Bus 1 (or 2) Shows when a problem has occurred with the control panel’s Point Bus Wiring. Call your security company. Fire Point Bypass This display indicates that fire points have been bypassed. Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
Do not spray any liquid directly onto the keypad. It could run inside the case and damage electrical circuits. Your Alarm Company Name: Call This Number Before Testing Bosch Security Systems, Inc. | 9/10 | F01U169130-02...
