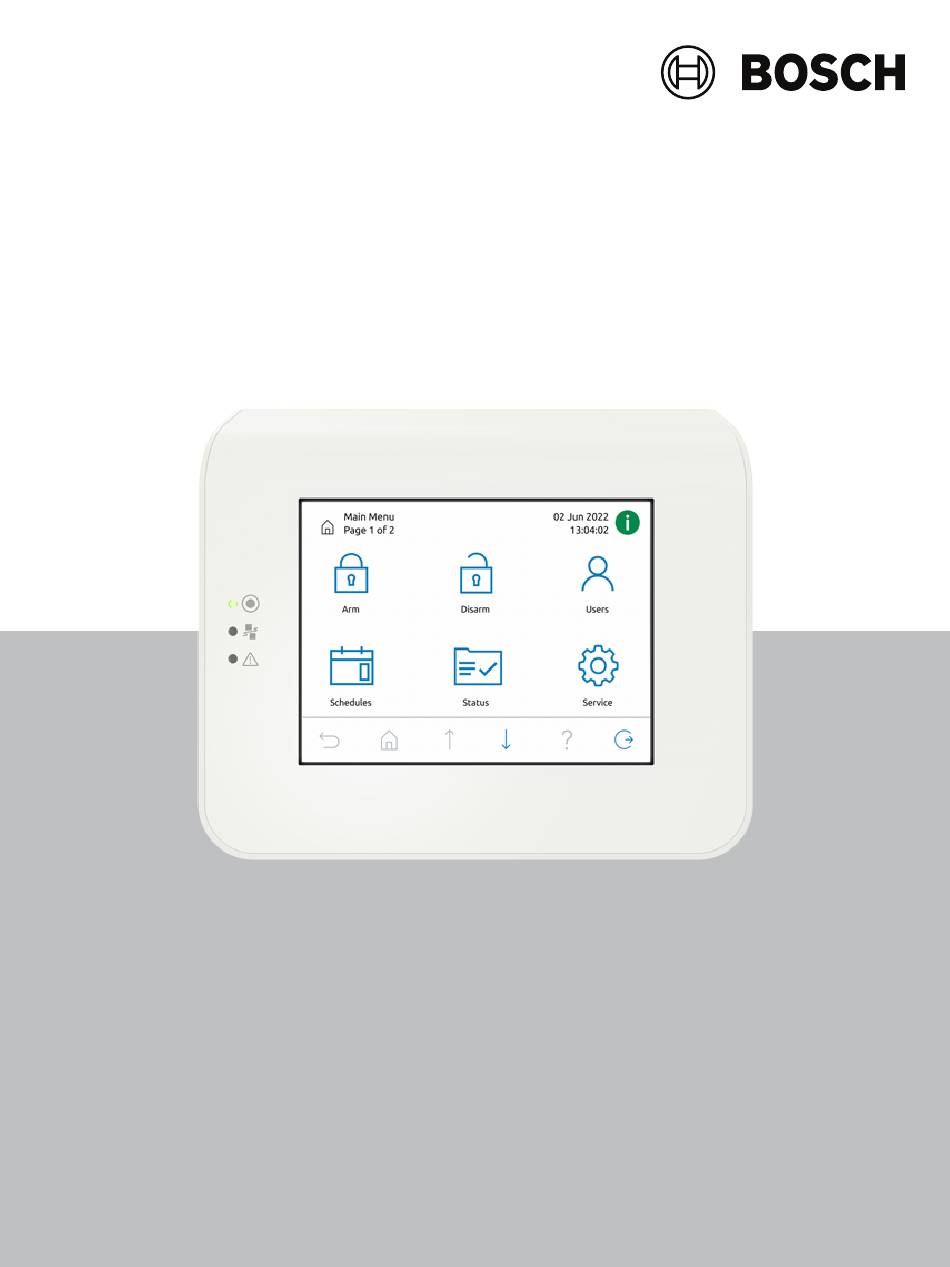

- Page 1 MAP Touch Keypad 5000 IUI‑MAP0002‑3 User Manual...
-
Page 3: Table Of Contents
Bell and indicator test 5.8.8 Changing/viewing output state 5.8.9 Manufacturer authorization 5.8.10 Adjusting volume/brightness 5.8.11 Setting chime mode 5.8.12 Blocking time Internal programs 5.10 Event memory 5.11 Managing remote access Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... - Page 4 | Table of contents MAP Touch Keypad 5000 Troubleshooting Maintenance 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual...
-
Page 5: Safety
This product and/or battery must be disposed of separately from household waste. Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 6: Short Information

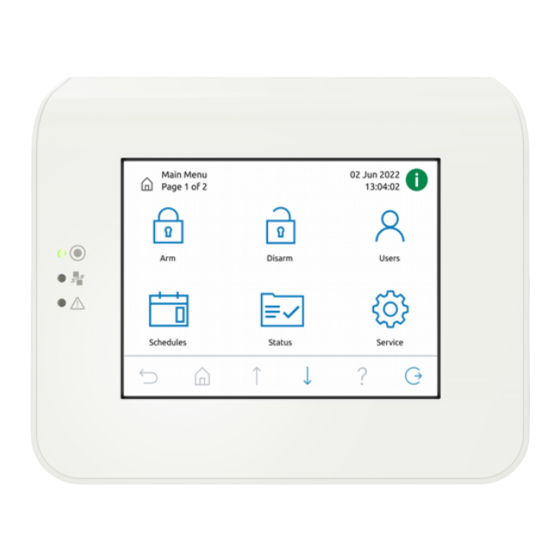

This manual describes how to operate the MAP keypad. Introduction The MAP keypad is an input device for the MAP 5000 system. Each keypad has a vibrant-color 14.5 cm (5.7 inch) TFT LCD screen. The durable touch screen provides access to system functions through an interface with intuitive icons. Users touch the images directly on the screen to arm, disarm, or select other menu options. -
Page 7: System Overview
To operate the LCD screen, tap the icons and buttons shown on the screen with moderate pressure. – To avoid damage of the LCD screen, do not use sharp objects during operation. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 8: Main Menu
This icon is used to view additional system information and to clear events, alarms or troubles. Flashing red: not yet cleared system events and alarms Flashing yellow: not yet cleared system troubles Green: no additional system information available 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... - Page 9 Shows the next page on screens with more than one page. Help Shows helpful information about the active screen. Exit Logs the user off and switches the display to the idle screen. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual...
-
Page 10: Getting Started
A user is logged off automatically if there has been no activity for two minutes. This value can be configured by the installer via RPS for MAP. For more information, contact your installer or system administrator. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... -
Page 11: Operation
An anti-masking message appears, if an object is placed in front of a motion detector that is capable of detecting masking attempts. Start the motion detector test for the area in which the motion detector is located. Refer to Motion detector test, page 28. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 12: Search And Sort Functions
For example, areas can be filtered by their arming status and devices can be filtered by their fault or bypass status. Choose a filter selection. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... -
Page 13: Arming Areas
All active or faulted devices, that either can be bypassed or cannot be bypassed, are displayed. Resolve the issues of the listed devices to make this area ready to arm. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 14: Disarming Areas
– Option 3: Disarm Selected Areas Choose this option to disarm one or several areas from a list. Access to blocking time menu. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... -
Page 15: Managing Users
To manually select a user ID, press Enter User ID and type in the user ID. To confirm the user ID, press The user options are displayed. How to add a user name Press Enter User Name. The user name options are displayed. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... - Page 16 In case of a temporary user, enter the number of days for which the user is activated (0 - 99). If you enter 0, the temporary user will be an inactive user. Inactive users can be activated by the installer. To confirm the temporary user duration, press 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual...
-
Page 17: Deleting Users
The Users menu with four menu options is displayed. ð How to delete users Press Delete Users. A list of the users is displayed. Select the user you want to delete. A confirmation message is displayed. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 18: Editing Users
This option can only be used if a smartkey profile is configured by the installer. For more information, contact your installer or system administrator. How to edit a smartkey user Press Edit Smartkey User. The smartkey options are displayed. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... - Page 19 11. Choose between one of the displayed languages. icon indicates the selection. 12. To confirm the user language, press The keypad user options are displayed. 13. Press Select Exit Delay. 14. Choose between Standard and Extended. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual...
-
Page 20: Changing Passcode
Select the schedule you want to view or edit. You can also search for schedules by name or filter active and inactive schedules. The selected schedule is displayed. To enable or disable the schedule, press the Schedule button. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... -
Page 21: System Status
In case a blocking time interval is configured for an area, it is indicated by the button. To access the blocking time menu, press For more information on blocking time, refer to Blocking time, page 30. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 22: Viewing Device Status
How to open the Status menu To open the Status menu, press The Status menu with four menu options is displayed. How to unbypass all devices Press Unbypass All Devices. A confirmation message is displayed. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... -
Page 23: System Service Functions
Press Event History. The event history options are displayed. The following options are available: – View History – Print History – Filter By Date Range – Filter By Event Type Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... - Page 24 Press Filter By Event Type. The filter options are displayed. The following filter options are available: – All Events – Alarm Events – Trouble Events – System Events – Arm/Disarm Events – Operation Events 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual...
-
Page 25: Viewing Version Information
ð icon indicates that the device is enabled. The icon and the yellow LED on the keypad indicate that the device is disabled. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 26: Setting Time And Date
The areas for which you want to start a walk test are disarmed. Press Start New Walk Test. Press Select Areas. All areas are displayed. Armed areas are displayed in light grey and cannot be selected. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... - Page 27 Triggered devices move from the list of untested points to the list of tested points. Optional: To print the seismic test, press the icon. For more information, refer to How to print a walk test, page 28. The seismic test is finished. ð Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual...
-
Page 28: Motion Detector Test
The speaker of the keypad emits a short beep. After three seconds the bell test for acoustic alarms has finished. ð ð After three minutes the indicator test for optical alarms has finished. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... -
Page 29: Changing/Viewing Output State
The Service menu with twelve menu options is displayed. ð How to adjust the volume and brightness of the keypad Press Adjust Volume/Brightness. To adjust the volume, press the Volume button and use the and the icons. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 30: Setting Chime Mode
Alternatively, the Blocking Time menu can be accessed through the Status menu. For more information, refer to Viewing area status, page 21. The Blocking Time menu – Option 1: View Blocking Time Choose this option to view the blocking time. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... -
Page 31: Internal Programs
Up to 14 internal programs can be configured. For more information, contact your installer or system administrator. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... -
Page 32: Event Memory
The number of reported alarms since the alarm system was installed is displayed. ð How to silence Press Silence. A confirmation message is displayed. ð The acoustic alarm on the local keypad and all acoustic alarms of remote devices are silenced. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual... -
Page 33: Managing Remote Access
The Authorize RPS Access button turns light grey and the remote access is enabled. ð How to disable the remote access Press Cancel RPS Authorization. ð The Cancel RPS Authorization button turns light grey and the remote access is disabled. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual... - Page 34 | Troubleshooting MAP Touch Keypad 5000 Troubleshooting Please contact your installer in case of problems or any unexpected behavior of the system. 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual...
- Page 35 This product and/or battery must be disposed of separately from household waste. Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment. Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual...
- Page 36 | Maintenance MAP Touch Keypad 5000 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual...
- Page 37 MAP Touch Keypad 5000 Maintenance | Bosch Sicherheitssysteme GmbH 06-2024 | V01 | F.01U.424.526 User Manual...
- Page 38 | Maintenance MAP Touch Keypad 5000 06-2024 | V01 | F.01U.424.526 Bosch Sicherheitssysteme GmbH User Manual...
- Page 40 Bosch Sicherheitssysteme GmbH Robert-Bosch-Platz 1 70839 Gerlingen Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2024 Building solutions for a better life 202409121111...
