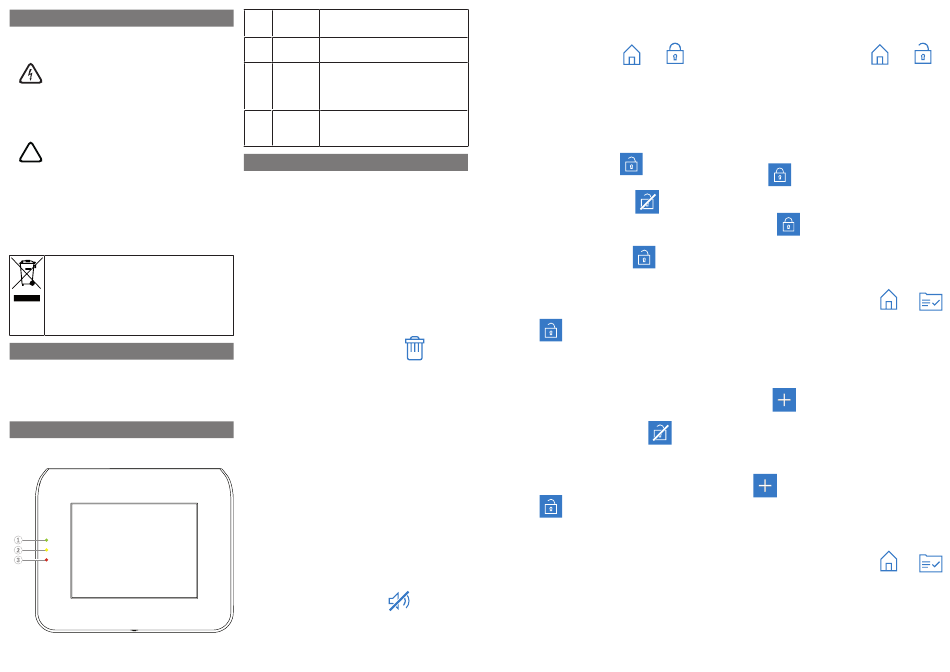

Bosch MAP 5000 Quick User Manual

Safety
Danger!
Electricity
Injuries due to electricity are possible if the
system is not operated correctly or if the sys-
tem is opened or modified. Never open or
modify the system. Contact your installer if
you want to get your system modified.
Caution!
Sensitive components
!
Damage of sensitive components is possible if
the system is not handled carefully or if the
system is opened or modified.
– Always handle the system carefully.
– Never open or modify the system.
– Please contact your installer if you want to get your
system modified.
Old electrical and electronic equipment
This product and/or battery must be disposed
of separately from household waste. Dispose
such equipment according to local laws and
regulations, to allow their reuse and/or recyc-
ling. This will help in conserving resources, and
in protecting human health and the environ-
ment.
Short information
This document provides a short description on the most
important operations of the MAP 5000 system.
For detailed information and instructions on operation,
refer to the MAP touch keypad 5000 User manual.

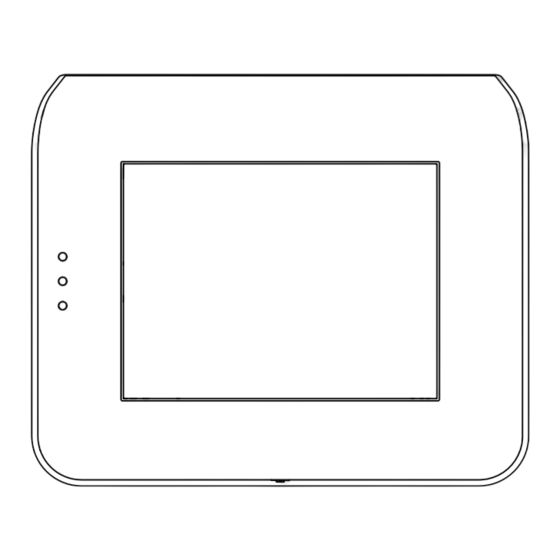

System overview
Three light-emitting diodes (LEDs) are located on the
left side of the MAP keypad housing:
Cal- Compon- Description
lout ent
1 Green LED Indicates that the keypad is in nor-
mal condition.
2 Yellow LED Indicates that there is a trouble con-
dition, that devices are covered, or
that devices of the system are by-
passed or disabled.
3 Red LED The default behavior indicates that
an alarm condition exists in the se-
curity system.
Operation
Logging in
How to log in
1. To view the login screen, tap the screen.
2. In the passcode field, enter your passcode.
The user passcode is a combination of the 3-di-
git user ID and a 6-digit password (e.g.
005 123456).
If the passcode is correct, the Main Menu is dis-
played.
Invalid passcode
If the passcode is not correct, an error message is dis-
played.
4 To empty the passcode field, press
When an incorrect passcode has been entered ten
times, the keypad is locked for two minutes per default.
These values can be configured by the installer via RPS
for MAP.
Silencing alarms
How to silence the acoustic alarm of the local
keypad
4 Touch the screen of the local keypad.
The login screen is displayed and the acoustic
ð
alarm on the local keypad is silenced.
How to silence all acoustic alarms of remote
devices
1. Log in to display all acoustic alarms. Refer to
How to log in.
The first and last alarms are displayed immedi-
ately.
2. To silence the alarms of all remote acoustic
devices and keypads, press
The alarms of all remote acoustic devices and
ð
keypads are silenced.
Arming areas
How to open the Arm menu
4 To open the Arm menu, press and
The Arm menu with three menu options is dis-
ð
played.
How to arm
4 Select one of the three menu options to proceed.
The area and their current arming possibility are
displayed.
– An area is ready to arm, if the icon is dis-
played.
– An area is not ready to arm, if the
played.
How to arm, if area is ready to arm
ü An area is ready to arm, if the icon is dis-
played. All devices in this area are in normal
state.
1. To arm an area that is ready to arm, press the
desired option or area.
2. Press
A countdown starts, indicating the remaining
time to exit the location.
3. Exit the area within the remaining time of the
countdown.
ð The area is armed.
How to make an area ready to arm
ü An area is not ready to arm, if the
displayed. There are active or faulted devices in
the area.
1. To arm an area that is not ready to arm, press
the desired option or area.
2. Press
All active or faulted devices, that either can be
bypassed or cannot be bypassed, are displayed.
3. Resolve the issues of the listed devices to make
this area ready to arm.
How to force arm
4 If you want to arm the area without the devices
listed and if the preconditions are fulfilled, press
Force Arm.
Disarming areas
How to open the Disarm menu
4 To open the Disarm menu, press
ð The Disarm menu with three menu options is dis-
played.
How to disarm
1. Select one of the three menu options to pro-
ceed.
The area and their current arming status are dis-
played. An area is armed and can be disarmed if
the icon is displayed.
2. To disarm an area, press the desired option or
area.
icon is dis-
3. Press
ð The area is disarmed.
Viewing area status
How to open the Status menu
1. To open the Status menu, press
2. The Status menu with four menu options is dis-
played.
How to view the area status
1. Press View Area Status.
A list with all areas and their status is displayed.
The symbol indicates that there is de-
tailed information to be displayed for an area.
You can also search for areas by name or filter
icon is
areas according to their arming or disarming
status.
2. To view details on the area status, press the
symbol.
Details on the area status are displayed.
ð
Bypassing
How to open the Status menu
1. To open the Status menu, press
2. The Status menu with four menu options is dis-
played.
How to bypass or unbypass a device
1. Press Bypass/Unbypass Device.
and
and
and
