User Guide
ACE SOFTWARE OPERATION
LAUNCHING THE SOFTWARE
When the EV-ADAQ4380-4FMCZ, EV-ADAQ4370-4FMCZ, or EV-
ADAQ4381-4FMCZ, and SDP-H1
the PC, launch the ACE Software. To launch the ACE Software, do
the following steps:
1. From the Start menu, select All Programs > Analog Devices
> ACE > ACE.exe to open the main software window, as shown
in Figure 17.
2. The ADAQ4380-4 Eval Board, ADAQ4370-4 Eval Board, or
ADAQ4381-4 Eval Board icon appears in the Attached Hard-
ware section.
3. If the EV-ADAQ4380-4FMCZ, EV-ADAQ4370-4FMCZ, or EV-
ADAQ4381-4FMCZ is not connected to the USB port through
analog.com
EVAL-ADAQ4380-4/EVAL-ADAQ4370-4/
boards are properly connected to

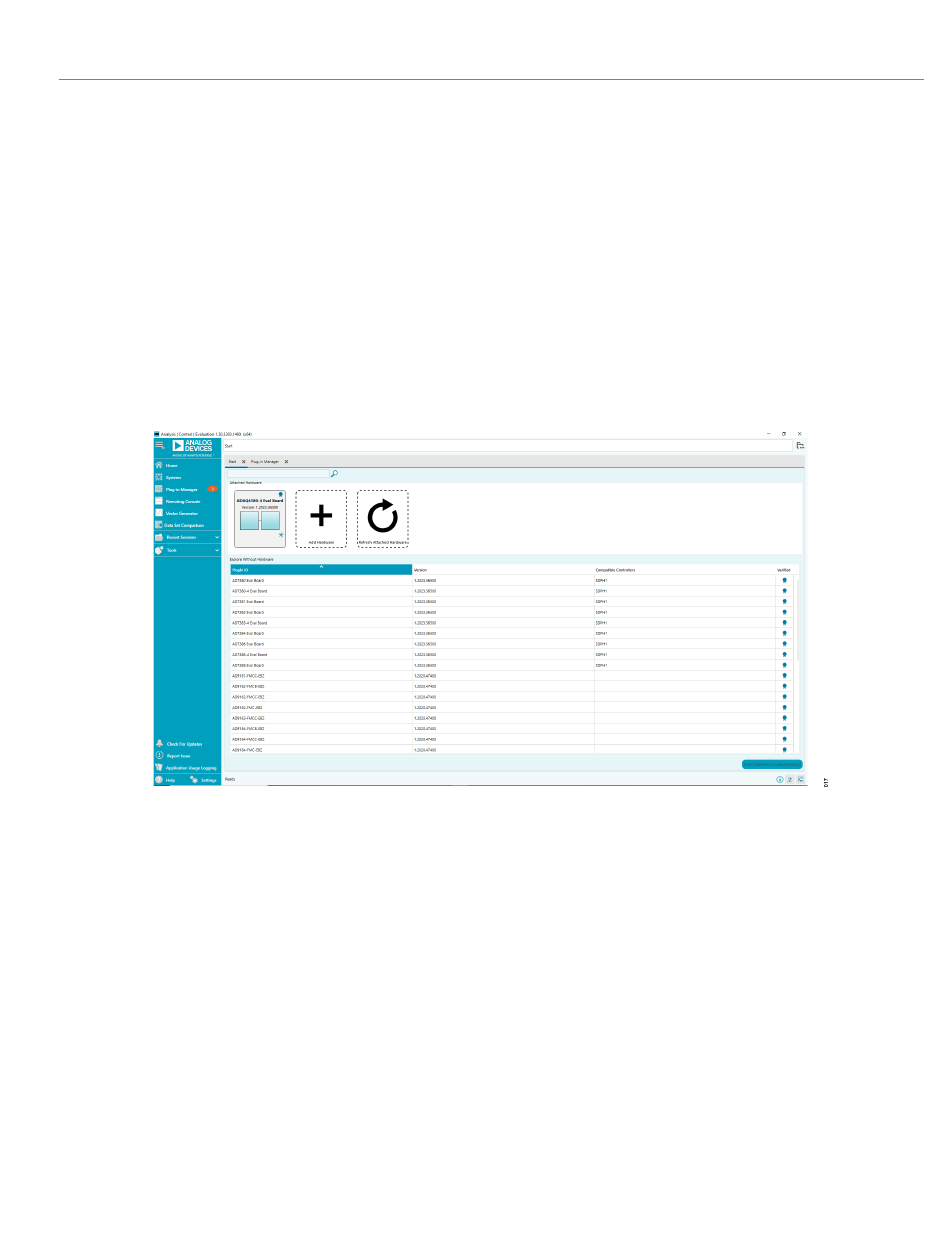

Figure 17. EVAL-ADAQ4380-4 ACE Software Main Window
EVAL-ADAQ4381-4
the SDP-H1 board when the software is launched, the
ADAQ4380-4 Eval Board, ADAQ4370-4 Eval Board, or
ADAQ4381-4 Eval Board icon does not appear in the Attach-
ed Hardware section. Connect the EV-ADAQ4380-4FMCZ, EV-
ADAQ4370-4FMCZ, or EV-ADAQ4381-4FMCZ, and SDP-H1
board to the USB port of the PC and wait a few seconds, then
continue following these instructions.
4. Double-click the ADAQ4380-4 Eval Board, ADAQ4370-4 Eval
Board, or ADAQ4381-4 Eval Board icon to open the board
view window, as shown in
5. Double-click the ADAQ4380-4, ADAQ4370-4, or ADAQ4381-4
chip icon to open the chip view window, as shown in
6. Click Proceed to Analysis in the chip view window to open the
analysis view window, as shown in
Figure 18.
Figure
Figure 20.
Rev. B | 11 of 20
19.
