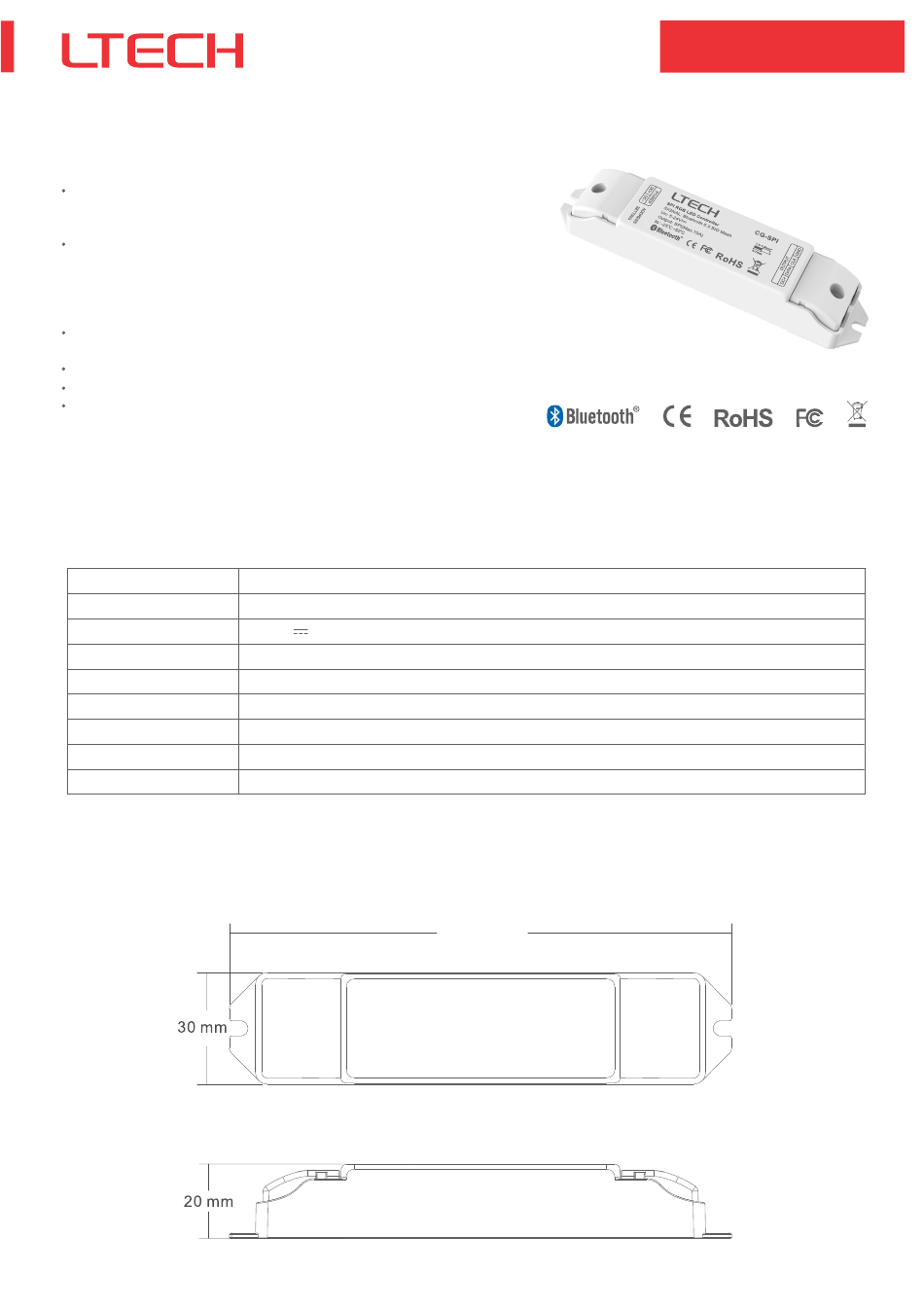

Bluetooth LED Pixel Controller
Bluetooth 5.0 SIG Mesh communication protocol allows for seamless relay
between nodes. Through the APP, edit the LED pixel strip parameters and
control brightness, colors and speed locally;
Multiple supported types of IC-drivern LED lights.TM1804/TM1809/TM1812/TM1803/
TM1814/TM1914/TM1914A/UCS1903/UCS1909/UCS1912/UCS2903/UCS2909/UCS2912/
UCS2904B/UCS5603A/UCS6912/WS2801/WS2803/WS2811/WS2812/WS2821/WS2812B/
APA102/APA104/KL590/KL592D/LPD6803/LPD1101/LPD8803/LPD8806/P9813/P943/
TLS3001/TLS3002/SK6812(RGB)/GS8206(BGR)/GS8208/SM16703.
Through the APP, select from a variety of dynamic lighting effects and adjust
speed, brightness, and directions of dynamic lighting effects.
Adjust RGB sequence, select the IC type, store and play customized scenes.
Provide 16 optional dynamic lighting modes and support loop playback.
Support brightness, color temperature and RGB adjustment for local scenes
and set a time to turn them on/off.
Technical Specs
Model
Wireless Protocol Type
Inut Voltage
Output Signal
Working Temperature
Channel of switch
Dimensions
Package Size
Weight (G.W)
Product Size
Unit：mm
CG-SPI
Bluetooth 5.0 SIG Mesh
5-24V
SPI
-25°C~50°C
Single Channel
135×30×20(L×W×H)
136.5×32×22(L×W×H)
52g±5g
CG-SPI
135 mm
1
Bluetooth5.0SIGMesh
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ltech CG-SPI
Summary of Contents for Ltech CG-SPI
- Page 1 Bluetooth5.0SIGMesh CG-SPI Bluetooth LED Pixel Controller Bluetooth 5.0 SIG Mesh communication protocol allows for seamless relay between nodes. Through the APP, edit the LED pixel strip parameters and control brightness, colors and speed locally; Multiple supported types of IC-drivern LED lights.TM1804/TM1809/TM1812/TM1803/...
-
Page 2: Terminal Description
Bluetooth5.0SIGMesh CG-SPI Terminal Description Power Input Socket LED Lamp Connection Socket ID Learning Button Indicator light Wiring diagram Power adapter CG-SPI LED pixel strip LED pixel strip wiring diagram a.Conventional connection method. 12Vdc 12Vdc Powersupply Pixel strip Powersupply DATA 12Vdc Powersupply b.Light fixtures and controller using different operating voltages. - Page 3 Bluetooth5.0SIGMesh CG-SPI Dynamic mode list Dynamic effect Dynamic effect Dynamic effect Dynamic effect 7-color jumping 7-color strobing 7-color fading 7-color gradient 7-color horse racing 7-color circle horse racing 7-color flow 7-color gradient flow 6-color trail 6-color circle trail Gradient trail...
-
Page 4: Application Diagram
CG-SPI 3. After linking the panel with the CG-SPI controller via APP, both the APP and the panel can simultaneously control the controller. When the panel is connected to the network, CG-SPI controller can be remotely controlled to turn lights on/off, play modes, perform cloud scenes and trigger automated linkage via APP. - Page 5 Create a home if you are a new user. Click “+” icon in the upper right corner to access the app installation. the “Add device” page. Select “LED Controller”- “RGB IC light (CG-SPI)”. Make sure the device has been connected to the light and powered on, then click “Search via Bluetooth”...
-
Page 6: Warranty Agreement
No any contract signed by LTECH. 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail. -
Page 7: Update Log
Bluetooth5.0SIGMesh CG-SPI Update Log Version Updated Time Update Content Updated by 20240202 Original version Yang Weiling...
