Ltech DMX-SPI-203 Manual

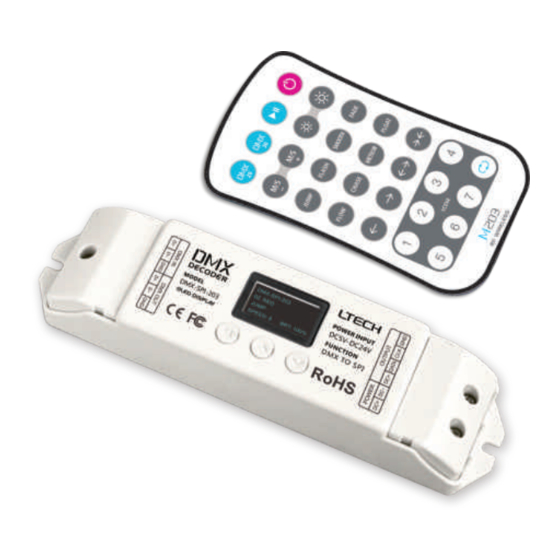

DMX-SPI-203
LED Controller
DMX-SPI-203 controls LED with the following compatible ICs: LPD6803, LPD1101, D705,
UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903,
UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, WS2801,
WS2803, WS2811, WS2812, P9813.
Supporting international standard protocol DMX512/1990 interface, with DMX administration
mode to invoke the built-in functions for choosing mode, speed, brightness, types and
direction changing by DMX512 console. Furthermore, it has the DMX decode mode,
customers could use DMX512 console to program & control every channel of the LEDs
with the compatible ICs listed above. 0-100% dimming range, program any lighting effect
required.
1. Product Parameter:
DMX SPI 203 Controller: - -
Input Voltage : 5~24Vdc
Power Consumption: 1W
(if the lamps are powered individual)
Output Signal: SPI(TTL)
Change Mode: 540
DMX Channel: DMX Manage Mode: 6CH
DMX Decode Mode: 510CH
DMX-SPI-203
LED
Controller
5
Control Qty: 1024 Pixels
Virtual Pixel: 1-6 times, Max 1024 pixel
Working Temperature:
-30℃～55℃
Dimensions: L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight(G.W.): 130g
1
M203 Remote
Working Voltage: 3V(battery CR2032)
Working Frequency: 2.4GHz
Package Dimensions: L228xW156xH35(mm)
Total Weight(G.W.): 240g

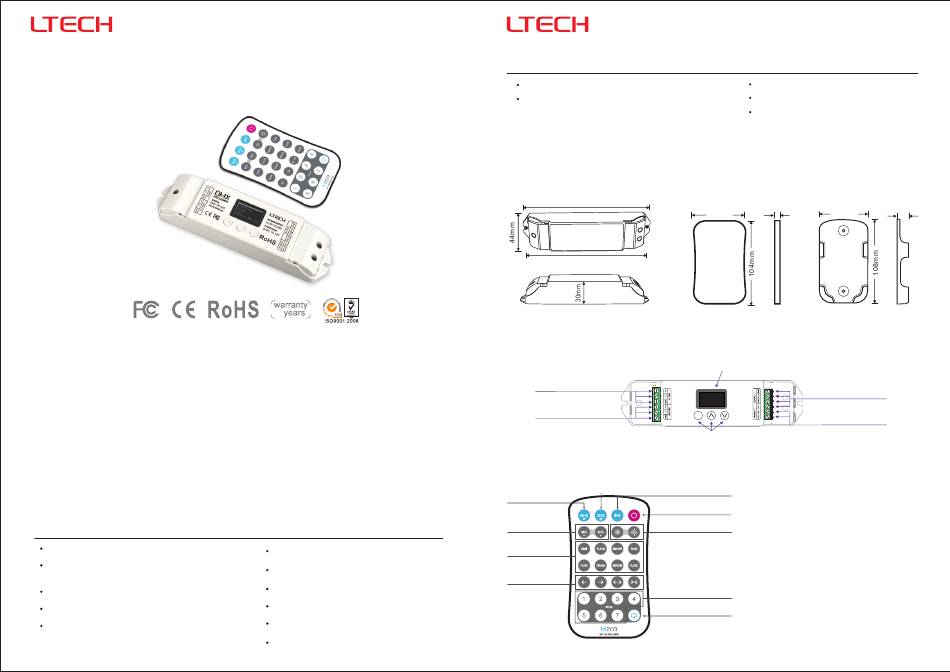

2. Product Dimension:
175mm
170mm
Controller
3. Terminal Description:
DMX Signal Input
Socket
RUN
DMX Signal Output
Socket
4. M203 Remote:
DMX 30 Mode
DMX 29 Mode
(Long press to turn ON/OFF the tone)
Mode/Speed
(Short press to change mode
Long press to adjust speed)
Type Keys
Direction Keys
(Short press to play scene
long press to save the current scene)
DMX-SPI-203
LED
Controller
Working Temperature: -20℃~55℃
Dimensions: L104×W58×H9(mm)
Weight(N.W.): 42g
63mm
60mm
Remote
Remote holder
OLED Screen
LED Lamps
Connection Socket
-
5 24Vdc
M
Power Input Socket
Function Keys
The Learning Remote Method:
Pause/Play
The controller and remote are Pre-synced at
ON/OFF
factory. If deleted accidentally, the sync method
.
is as follows
Brightness
Firstly, press M Key on the controller to enter the
setting interface. Secondly, press M Key again
to switch to "Remote Match" entry.
Then Press "∧ " or "∨ " button to enter remote
Scene Keys learning interface: Press any key on the remote
control to match with the controller.
Long press "∧" or "∨" button to delete ID, which
Loop Play
cancels the match.
(multiple remotes could be synced to one controller):
2
www.ltech-led.com
