Steris OT1000 Series Operator's Manual

Steris OT1000 Series Operator's Manual

Orthopedic surgical table
Hide thumbs Also See for OT1000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
10008511
en
Revision H
OT1000 Series
Orthopedic Surgical
Table
Operator Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OT1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steris OT1000 Series

Summary of Contents for Steris OT1000 Series

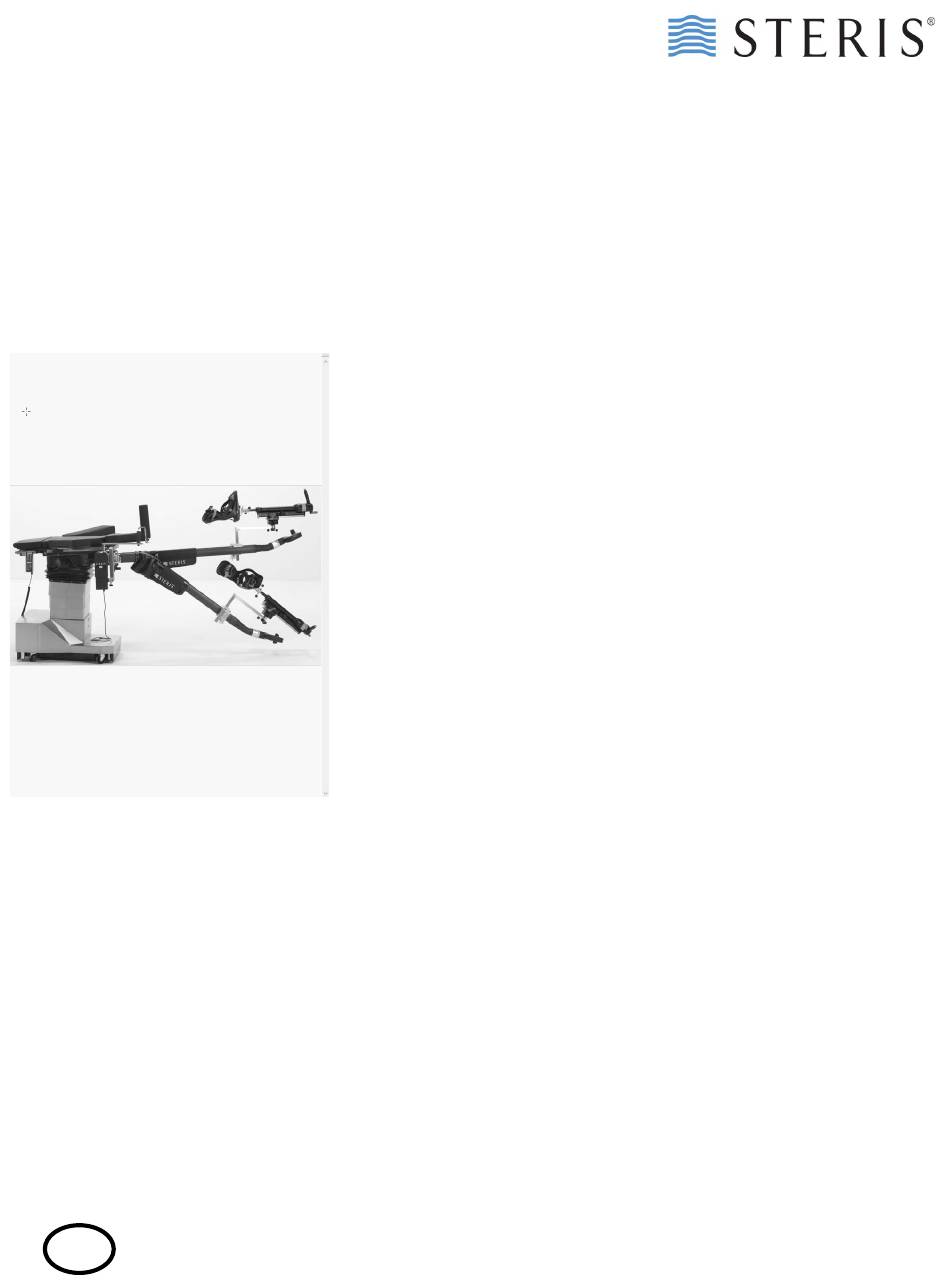

  • Page 1 OT1000 Series Orthopedic Surgical Table Operator Manual 10008511 Revision H...
