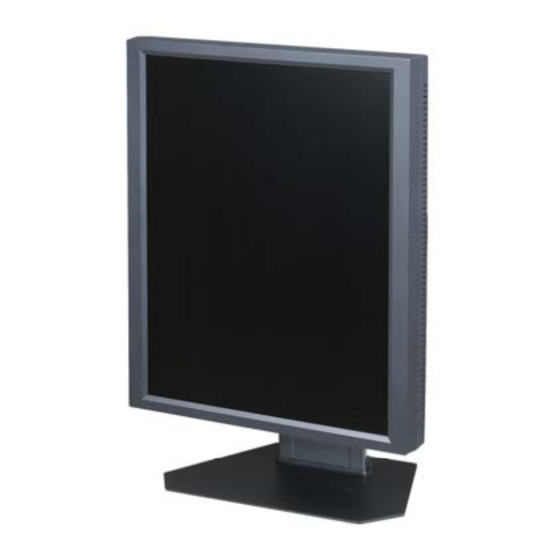

- Page 1 VividImage ® Medical Grade Monochrome Monitor OPERATION MANUAL MON-STE21MC-2MP MON-STE21MC-3MP MON-STE20MC-5MP MON-STE21MC-3MP...
-
Page 2: Notice For Users
VividImage Monochrome Monitor- MON-STE21MC-2MP / MON-STE21MC-3MP / MON-STE20MC-5MP: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Table Of Contents
Table of Contents NOTICE FOR USERS ............................ 2 FCC Statement ............................2 Declaration of Conformity ........................... 2 TIPS AND SAFETY PRECAUTIONS ......................4 Monitor and Accessory Checklist ....................... 4 Mounting ..............................4 Location ..............................4 ... -
Page 4: Tips And Safety Precautions
Tips and Safety Precautions - Do not display a still image for ten (10) or more Location hours. An afterimage may remain. - Use the monitor in a suitable environment. See - It may be difficult to see the image on the screen “Operating Temperature”... -
Page 5: Monitor Set-Up And Connections
Figure 1: Rear View of MON-STE21MC-3MP Monitor with Cable Cover Removed *Port is for the manufacturer to load firmware. It is not for end-user utilization. MON-STE21MC-2MP includes a D-SUB / VGA port (not shown) Step 3: Connecting the Video Inputs The video input cable(s) should be attached to the appropriately labeled ports on the back of the monitor as shown in Figure 1. -
Page 6: Step 4: Connecting The Power Cord
Step 4: Connecting the Power Cord Plug the appropriate end of the power cord into the 3-pronged interface on the back of the monitor. Plug the opposite end of the cord into an outlet. The Vacation Switch on the back of the monitor must be turned on. The Vacation Switch is a true on/off switch. -
Page 7: User Interface
User Interface The User Interface The monitor allows you to easily adjust the characteristics of the image being displayed. All of these adjustments are made using the control buttons on the back of the monitor. An on screen display shows changes as control buttons are adjusted. -
Page 8: On Screen Display - 2Mp
On Screen Display – 2MP The following On Screen Displays (OSD) are for the MON-STE19MC-2MP monitor: (OSD functions for the MON-STE21MC-3MP and MON-STE21MC-5MP can be found on page 15) OSD Adjustments Power on the Monitor. Press “Menu” button to start the OSD menu. Press “+”... -
Page 9: Osd Menu Function - 2Mp
On Screen Display Menu Function – 2MP The following OSD Menu Functions are for the MON-STE19MC-2MP monitor: (OSD Menu functions for the MON-STE21MC-3MP and MON-STE21MC-5MP can be found on page 15) Display Menu Auto Brightness Auto light sensor setting. Brightness Adjust the brightness of the screen. - Page 10 OSD Menu H-Position Move the OSD left and right on the screen. V-Position Move the OSD up and down on the screen. Rotation Rotate the OSD. Time Out Adjust OSD display time setting. Language Choose language of the display on the screen. Setup Menu All Reset Recall all factory default settings.
-
Page 11: Structure Of Osd Menus - 2Mp
Structure of On Screen Display Menus – 2MP The following Structure of OSD Menus are for the MON-STE19MC-2MP monitor: How To Lock Press “Menu” key to start OSD menu. Select “Setup Menu” and press “Enter.” Setup Menu All Reset DVI Select Information Lock Mode Overlapped... - Page 12 Selecting “Lock Mode” and pressing “Enter” will automatically save the settings. Setup Menu Setup Menu Lock Mode Lock Mode Mode 1 Mode 2 Lock Mode • Off: OSD Menu is not locked. Pressing “Menu” starts the OSD menu and all functions can be adjusted.
-
Page 13: How To Unlock
• If setting is in “Mode 1,” pressing “Menu” will show this image: OSD Locked • If setting is in “Mode 2,” pressing “Menu” will show this image: Auto Brightness How To Unlock If setting is in “Mode 1” or “Mode 2” and you want to unlock, hold the “-” key (the button on back of the monitor;... -
Page 14: Quick Access Controls
Quick Access Controls The Quick Access Controls allow direct adjustment of settings by pressing either the “Source” or “Auto” buttons on the user interface. (These settings are not accessed through the “Menu” button.) Input Source Selection Press “Source” to select the input source. DVI-A DVI-D •... -
Page 15: On Screen Display Menu Function - 3Mp & 5Mp
On Screen Display Menu Function – 3MP & 5MP The following OSD Menu Functions are for the MON-STE21MC-3MP and MON-STE20MC-5MP monitors: OSD Control Main Menu Button State Main Menu Sub Menu Description Brightness Brightness Adjust the brightness of the screen Contrast Contrast Adjust the contrast of the image... -
Page 16: Quick Access Controls
Quick Access Controls: Source Press “Source” to select the setting of Gamma. Gamma 2.0 Gamma Off Gamma 1.8 Gamma 2.2 Gamma User Gamma DICOM Mode item Selection Press “Auto” and the information will appear in the display. Document # Revision Date 16 of 22 82070-275, Revision A 1/16/2009... -
Page 17: Features
Features • The integrated interface ratified by the Digital Display Working Group (DDWG) that allows both digital and analog connectors off of one port. The “I” stands for integration for both digital and analog. The digital portion is DVI based. •... -
Page 18: Monitor Care / Troubleshooting
Monitor Care / Troubleshooting Monitor Care Troubleshooting Always remove the plug from the AC outlet when Please follow these troubleshooting tips prior to cleaning the monitor. contacting customer support. LCD Panel The image is not displayed on the screen - Is the power cord connected properly? Use a mild soap &... -
Page 19: Specifications
Specifications 21 Mono 2-MP 21 Mono 3-MP 20 Mono 5-MP ® VividImage Model # MON-STE21M-2MP MON-STE21M-3MP MON-STE20M-5MP INPUTS: RGBHV (computer) ● ● ● ● ● ● 1600 x 1200 2048 x 1536 2560 x 2048 Resolution Aspect Ratio 1000 cd/m2 800 cd/m2 850 cd/m2 Brightness... -
Page 20: Glossary
Glossary Black Level: This adjustment allows the display to be set to discriminate between small differences in dark or near black areas of the image. The adjustment should make a black area of the image (such as a deep shadow where all detail is lost in the image) appear black. The black level is decreased (less black) until a change toward light or grey is perceived in this area, then the adjustment should be increased slightly to restore the dark area to black. -
Page 21: Index
Index A O Accessory Checklist, 4 On Screen Display, 8 On Screen Display - 2MP, 8 On Screen Display & Menu Function – 3MP & B 5MP, 15 OSD, 9, 11 Black Level, 20 OSD (On-Screen Display) Controls, 17 Brightness, 20 OSD Controls, 7 OSD Menu Function –... -
Page 22: Contact Customer Support
Contact Customer Support 40 Melville Park Road Melville, NY 11747 (877) 887-1788 is a registered trademark of STERIS Corporation. ® is a registered trademark of VTS Medical Systems, LLC VividImage Printed in USA Document # Revision Date 22 of 22...
