APPLICATION

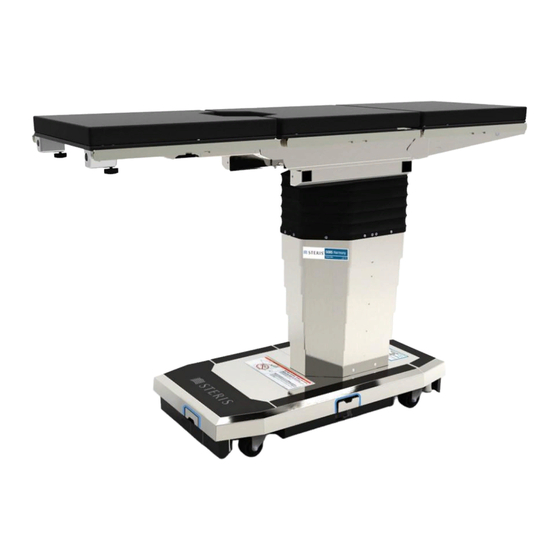

The STERIS 5085 SRT Surgical Table is a mobile,
electrohydraulically operated surgical table designed to
support virtually all general and bariatric surgical
procedures including cardiac and vascular, endoscopic,
gynecology, urology, nephrectomy, neurology,
ophtalmologic and orthopedics with the addition of STERIS
table accessories. The STERIS 5085 SRT Surgical Table also
offers a patient transport feature designed to safely move
patients on hard level surfaces within the surgical suite (from
pre-operative area to operating room and from operating
room to post operative recovery).

DESCRIPTION

The STERIS 5085 SRT Surgical Table is a mobile,
electrohydraulically operated surgical table specifically
designed to provide patient positioning flexibility required
for modern surgical care facilities. The STERIS 5085 SRT
Surgical Table features powered lateral tilt, Trendelenburg/
Reverse Trendelenburg, Zip-Slide™ movable tabletop and
adjustable height functions. This table is designed to
function with:
• 1200 lb (544 kg) load; with the ability to rotate and
raise/lower table but no tabletop articulation or slide.
• 1000 lb (454 kg) load; with the ability to rotate and all
patient posturing but without tabletop slide.
• 600 lb (272 kg) load; with the the ability to rotate, all
posturing, transport feature and tabletop slide.
The STERIS 5085 SRT Surgical Table is constructed of
aluminum alloy, stainless steel and other high quality
materials. Table is equipped with a large sliding tabletop
providing maximum radiological access without patient
reversing.
The STERIS 5085 SRT Surgical Table is powered by either
internal battery or facility electric through use of the
INTELLIPOWER ® dual power system.
The table control system accepts positioning commands
from three sources:
1. A primary Hand Control.
2. Physician-controlled foot control (which includes
Trendelenburg Tilts, Lateral Tilts and Height functions).
3. Backup Hand Control functions as override to primary
Hand Control. Located in table base.
PAD CONFIGURATION
❑ Latex-Free Pads (standard)
❑ FIT Pads (see SD888)
STERIS 5085 SRT SURGICAL TABLE
The Selections Checked Below Apply To This Equipment
TRANSPORT CONFIGURATION INCLUDES:
❑ Patient Safety Barriers
❑ Patient Straps
ACCESSORY PACKAGES
❑ Standard Accessory Package
❑ X-Ray Top
Options
❑ Foot Control
(Typical only - some details may vary.)
Overall size (W x L x H):
20 x 83 x 22.8 to 42.5" (508 x 2098 x 581 to 1080 mm).
Weight:
850 lb (386 kg) approximate.
The standard table configuration includes:
• Power adjustable height, back, leg, Trendelenburg, Zip-Slide
movable tabletop, radiolucent Kidney™ elevator mechanism,
flex/reflex, and lateral tilt functions.
• Manual, removable, adjustable head section.
• Pendant Hand Control.
• Mobile base with hydraulically operated self-compensating
floor locks.
STANDARDS
STERIS 5085 SRT Surgical Tables are in compliance with the
following standards:
• Underwriters Laboratories (UL) Standard 60601-1 2nd
Edition, as certified by ETL.
• Standard CSA-C22.2 No. 601.1-M90, Standard for Electro-
Medical Equipment, as certified by ETL (pending).
• IEC 60601-1: 1993, 2nd Edition, 1995, Electrical Safety, as
certified by ETL.
• IEC 60601-1-2: 2001, Electromagnetic Compatibility, as
certified by ETL.
• EN 55011: Group I, Class A, Emissions Testing, as certified
by ETL.
Item ________________________
Location(s)___________________
____________________________
SD894 (12/01/10)
