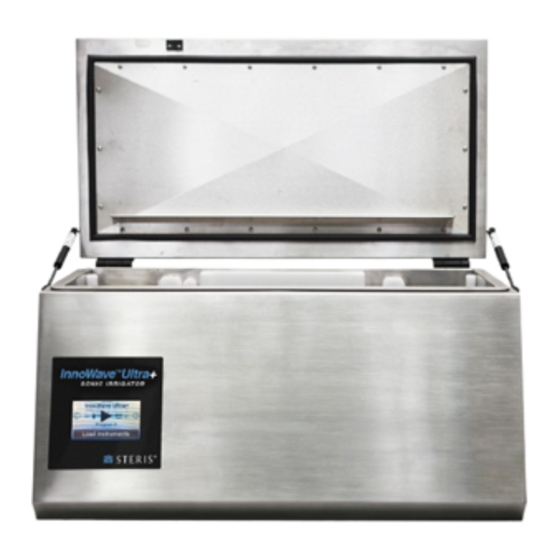

InnoWave™ Ultra+ Sonic Irrigator
Operator Manual
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InnoWave Ultra+ and is the answer not in the manual?

Questions and answers

Related Manuals for Steris InnoWave Ultra+

Summary of Contents for Steris InnoWave Ultra+

  • Page 1 InnoWave™ Ultra+ Sonic Irrigator Operator Manual ENGLISH...
  • Page 3 LIMITED RIGHTS NOTICE TECHNICAL DOCUMENTATION/DATA: This technical manual shall not, without the written permission of STERIS be either (a) used, released, disclosed, or reproduced in whole or in part or (b) used in whole or in part for manufacture except that (i) such release, disclosure or use is necessary for emergency repair or overhaul;...
  • Page 4 InnoWave Ultra+ Sonic Irrigator Operator Manual Revision History Revision Date Summary 06 Sep 2017 First release. 18 Dec 2017 Seismic Kit in chapter 2 under Installation Requirements and chapter 5 under General Specifications. Cabinet in chapter 2 under Additional Accessories. Cabinet Instruction in chapter 6 as Cabinet Instructions.

  • Page 5: Table Of Contents

    InnoWave Ultra+ Sonic Irrigator Operator Manual Table of Contents Safety Information 1.1 Safety Precautions 1.2 Personal Protective Equipment 1.3 Transportation and Storage 1.3.1 Lifting 1.3.2 Storage Markings 1.3.3 Environmental Conditions 1.4 Recommended Operator Training General Information 2.1 Intended Purpose of Equipment 2.2 Equipment Features 2.3 Equipment Identification 2.4 Manufacturer Information...
  • Page 6 InnoWave Ultra+ Sonic Irrigator Operator Manual Using the Touchscreen Display 4.1 The Touchscreen Display 4.2 Screensaver Mode on the Display 4.3 Entering an Operator PIN (if enabled) 4.4 Menu Navigation 4.5 Main Menu Functions 4.6 Information on the Display During a Wash Cycle Preparing Chemicals 5.1 Use of Chemicals 5.2 Recommended Chemistries —...
  • Page 7 InnoWave Ultra+ Sonic Irrigator Operator Manual 7.6 Pausing or Aborting a Wash Cycle 7.7 Wash Cycle Errors The Rewash Feature 8.1 Rewash Program Setting 8.2 The Rewash Counter 8.3 On Completion of a Rewash Cycle Maintenance 9.1 Important Safety Information 9.2 Daily Cleaning and Inspection 9.3 Weekly Cleaning and Inspection 9.4 Checking the Time and Date Settings...
  • Page 8 InnoWave Ultra+ Sonic Irrigator Operator Manual 11.2 Downloading Logs to a USB Flash Drive Troubleshooting 12.1 Diagnosing Error Codes 12.2 Troubleshooting Equipment Performance Wash Programs 13.1 Wash Program Configuration 13.2 Complete Wash Cycle Program 13.3 Wash Only Program 13.4 Open Programs 13.5 Decontamination Program Specification 14.1 Performance...
  • Page 9 InnoWave Ultra+ Sonic Irrigator Operator Manual Appendices Appendix A: Service Record Appendix B: Training Records Appendix C: Decontamination Certificate Appendix D: Operator and Supervisor Authorization Codes Index TABLE OF CONTENTS...
  • Page 10 Operator Manual InnoWave Ultra+ Sonic Irrigator This page intentionally blank viii...

  • Page 11: Safety Information

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Safety Information This chapter contains important safety information about the equipment. Read this entire manual before attempting to install, operate, or perform any maintenance on the equipment. Make sure all personnel understand the contents of this manual. This manual contains important information on the proper use and maintenance of this equipment.

  • Page 12: Safety Precautions

    InnoWave Ultra+ Sonic Irrigator Operator Manual Safety Precautions The following safety precautions must be observed when operating or servicing the equipment. WARNING indicates potential for personal injury. CAUTION indicates potential for damage to equipment. For emphasis, certain safety precautions are repeated throughout this manual. It is important to review ALL safety precautions before operating or servicing the equipment.
  • Page 13 InnoWave Ultra+ Sonic Irrigator Operator Manual WARNING — Electric shock hazard To avoid risk of electric shock, this equipment must be connected to a mains supply with a protective earth. Dangerously high voltages are present inside the equipment. Do not remove any panel or attempt to gain access to the interior of the electrical cabinet.
  • Page 14 InnoWave Ultra+ Sonic Irrigator Operator Manual WARNING — Burn hazard Since temperatures within the equipment can reach +60 °C (+140 °F) during and after operation, take care when opening the lid at the end of a wash cycle. Allow sufficient time for items to cool before handling, cleaning, or commencing maintenance procedures.
  • Page 15 InnoWave Ultra+ Sonic Irrigator Operator Manual WARNING — No user-serviceable parts No user-serviceable parts inside the equipment. To avoid personal injury, improper equipment performance, invalidation of the equipment warranty, or other costly damage, service and repair should only be performed by a service technician approved by the equipment manufacturer.
  • Page 16 InnoWave Ultra+ Sonic Irrigator Operator Manual CAUTION— Equipment damage This equipment should not be used for any purpose other than that defined by the manufacturer as a sonic irrigator. Never place items or person(s) on the lid as this may result in damage to the equipment.

  • Page 17: Personal Protective Equipment

    InnoWave Ultra+ Sonic Irrigator Operator Manual Personal Protective Equipment When operating or servicing this equipment, the following Personal Protective Equipment (PPE) must be worn: Goggles / safety glasses Protective gloves Protective clothing Boots with toe protection Transportation and Storage Make sure the package marking instructions and environmental conditions are always followed during the transportation and storage of the equipment.

  • Page 18: Environmental Conditions

    InnoWave Ultra+ Sonic Irrigator Operator Manual 1.3.3 Environmental Conditions This equipment can be transported and stored safely in the following environmental conditions: Temperature range: +2 ºC to +60 ºC (+36 ºF to +140 ºF) Pressure range: 0.50 bar to 1.06 bar (50 kPa to 106 kPa) Humidity range: 30% to 90% relative humidity...

  • Page 19: Recommended Operator Training

    InnoWave Ultra+ Sonic Irrigator Operator Manual Recommended Operator Training IMPORTANT The equipment owner has responsibility for training and keeping training records for all persons involved in operating and maintaining this equipment. Training should be regularly reviewed. It is recommended that operator training should cover, as a minimum, the following sections of this manual: Safety Information on page 1...
  • Page 20 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...
  • Page 21 InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER General Information This chapter provides general information about the equipment. 2.1 Intended Purpose of Equipment 2.2 Equipment Features 2.3 Equipment Identification 2.4 Manufacturer Information 2.5 Applied Standards 2.6 Compliance 2.7 RoHS Requirements 2.8 Disposal of equipment GENERAL INFORMATION...

  • Page 22: Intended Purpose Of Equipment

    InnoWave Ultra+ Sonic Irrigator Operator Manual Intended Purpose of Equipment The InnoWave Ultra+ Sonic Irrigator is designed to thoroughly clean (remove tissue, blood, and other contaminants from) a variety of reusable surgical instruments. Cleaning is achieved through a combination of ultrasonic cavitation and low- frequency cannulated pulse enhancement (CPE) fluid recirculation to dislodge and flush away unwanted debris from both the outside and inside surfaces (hollow instruments only) of items placed in wash tank.

  • Page 23: Equipment Identification

    Unit 7 & 8 Stor�ord Hall IWULTRAPL www.STERIS.com Industrial Park, Dunmow Road Bishop’s Stor�ord Her�ordshire, CM23 5GZ 0119 12345 00 STERIS Ireland Limited IDA Business and Technology Park 110VAC 60Hz Tullamore, County Offaly R35 X865, Ireland 1.2kW 2020-04-01 DOC11183 Issue 3...

  • Page 24: Applied Standards

    InnoWave Ultra+ Sonic Irrigator Operator Manual Applied Standards Standards that are applicable, subject to regional requirements and model variants made available in those regions, are shown below. Table 2.1 Applied Standards Standard Title ANSI C63.4-2014 American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.

  • Page 25: Compliance

    InnoWave Ultra+ Sonic Irrigator Operator Manual Table 2.1 Applied Standards (continued) Standard Title IEC 62366-1:2015+AMD1:2020 Medical devices — Part 1: Application of usability engineering to medical devices. Compliance This equipment has been designed to perform within the guidelines recommended by international decontamination standards.
  • Page 26 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 27: Connecting The Equipment

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Connecting the Equipment Before the sonic irrigator can be operated, it must be unpacked and connected to site water supplies and a site drain using the enclosed items. If the equipment owner requires assistance in connecting the sonic irrigator to the site water supplies and site drain, this should be sought from the supplier.

  • Page 28: Unpacking

    InnoWave Ultra+ Sonic Irrigator Operator Manual Unpacking Remove the equipment from the packing crate and remove all external packing. Open the lid and remove any protective packing and loose items from inside the tank. Enclosed Items Checklist Make sure all items, as described in the below, are present.
  • Page 29 InnoWave Ultra+ Sonic Irrigator Operator Manual Table 3.1 Enclosed Items (continued) Item Image Description Chemical pickup Water inlet hose with blue indicator Water inlet hose, stainless steel Overflow hose, 50 mm I/D x 1 m Hose clamp, 50 to 70 mm Drain hose Hose clamp, 22 to 32 mm 1/2 in.
  • Page 30 InnoWave Ultra+ Sonic Irrigator Operator Manual Table 3.1 Enclosed Items (continued) Item Image Description Disposable recirculation filter pack of 24 9-way pin to pin serial cable, male to female CONNECTING THE EQUIPMENT...

  • Page 31: Ports And Connections On The Equipment

    InnoWave Ultra+ Sonic Irrigator Operator Manual Ports and Connections on the Equipment Ports and connections to external services are on the rear of the equipment. Refer to the illustration below to identify where to connect water supply and drain hoses, the chemical pickup, an optional thermal printer, and a USB flash drive.

  • Page 32: Connecting The Cold Water Hose

    InnoWave Ultra+ Sonic Irrigator Operator Manual Connecting the Cold Water Hose Unpack the cold water hose. Make sure the washer is present inside the elbow connector end of the hose. Identify the cold water inlet. The cold water inlet is located on the rear of the sonic irrigator and is labeled COLD 5-30ºC 2-5 BAR.

  • Page 33: Connecting The Hot Water Hose

    InnoWave Ultra+ Sonic Irrigator Operator Manual Attach the elbow connector of the cold water hose to the cold water inlet. Turn the hose nut clockwise until hand tight on the thread of the inlet. Connect the free end of the cold water hose to a site cold water supply. Make sure the hose is not kinked or restricted when the sonic irrigator is in the operating position.
  • Page 34 InnoWave Ultra+ Sonic Irrigator Operator Manual Before connecting the hose to the rear of the sonic irrigator, insert a hose washer into the end of the hose with an elbow connector. Identify the hot water inlet. The hot water inlet is located at the rear of the sonic irrigator and is labeled HOT 50-80ºC 2-5 BAR.

  • Page 35: Connecting The Drain Hose

    InnoWave Ultra+ Sonic Irrigator Operator Manual Connecting the Drain Hose Unpack the hose adapter and the flat rubber washer. Push the washer over the threaded end of the hose adapter up to the shoulder. Locate the drain outlet. The drain outlet is on the rear of the sonic irrigator and is labeled DRAIN.
  • Page 36 InnoWave Ultra+ Sonic Irrigator Operator Manual Using a wrench, tighten the hose adapter by turning clockwise no more than a further 1/4 turn beyond hand tight. Do not over-tighten using the wrench as this may damage the hose adapter. Unpack the drain hose and the hose clamp. Identify the thinner end of the drain hose: this end will connect to the drain adapter attached in step 5.

  • Page 37: Connecting The Overflow Hose

    InnoWave Ultra+ Sonic Irrigator Operator Manual The free end of the drain hose should be inserted into a site drain fitted with a drain trap. The drain hose must not loop or kink and must not rise above the height of the drain outlet at the rear of the equipment.
  • Page 38 InnoWave Ultra+ Sonic Irrigator Operator Manual Identify the overflow outlet. The overflow outlet is located in the middle on the rear of the sonic irrigator. Push one end of the overflow hose onto the overflow outlet. Tighten the hose clamp so that it compresses the hose onto the outlet.

  • Page 39: Fitting A Recirculation Filter And The Tank Drain Filter

    InnoWave Ultra+ Sonic Irrigator Operator Manual Fitting a Recirculation Filter and the Tank Drain Filter During a wash cycle, fluids are pumped from the tank through to the basket flush ports and then through any attached hoses and distal connectors. To prevent debris in the tank from blocking the ports and hoses, a recirculation filter is fitted in the tank.

  • Page 40: Switching On Electrical Power

    InnoWave Ultra+ Sonic Irrigator Operator Manual Put the drain filter into the tank drain on the right side of the tank. Switching on Electrical Power Switch on power to using the isolation switch of the external power socket into which the equipment is plugged. Switch on the power on the rear of the sonic irrigator.
  • Page 41 InnoWave Ultra+ Sonic Irrigator Operator Manual After the POST completes successfully, the equipment is ready for use. CONNECTING THE EQUIPMENT...
  • Page 42 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...
  • Page 43 InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Using the Touchscreen Display This chapter describes how to use the touchscreen display. 4.1 The Touchscreen Display 4.2 Screensaver Mode on the Display 4.3 Entering an Operator PIN (if enabled) 4.4 Menu Navigation 4.5 Main Menu Functions 4.6 Information on the Display During a Wash Cycle USING THE TOUCHSCREEN DISPLAY...

  • Page 44: Using The Touchscreen Display

    InnoWave Ultra+ Sonic Irrigator Operator Manual The Touchscreen Display The touchscreen display is used to adjust wash cycle parameters and operate the equipment. The display also provides information on equipment settings and activity during a wash cycle operation. Screensaver Mode on the Display If the ultrasonic cleaner is inactive for more than 10 minutes, the display enters the screensaver mode.

  • Page 45: Entering An Operator Pin (If Enabled)

    InnoWave Ultra+ Sonic Irrigator Operator Manual Entering an Operator PIN (if enabled) If the equipment has been setup to require an operator authorization code before operation, Enter Pin Number appears after power- on. Operator PIN codes are listed in Operator and Supervisor Authorization Codes on page 151.

  • Page 46: Menu Navigation

    InnoWave Ultra+ Sonic Irrigator Operator Manual Menu Navigation On the display, the symbols are used to scroll left and right through the menu. The large symbol in the center and any text below it indicate the current selection. Any operator choices are usually shown at the bottom of the display. To return to the main menu from any sub-menu, touch the return symbol at the top-left of the display.

  • Page 47: Main Menu Functions

    InnoWave Ultra+ Sonic Irrigator Operator Manual Main Menu Functions The main menu provides access to settings for common equipment functions, as described in the table below. To return to the main menu from any selection or sub-menu, touch the symbol at the top-left of the display until the main menu is reached. Table 4.1 Main Menu Functions Name Function...

  • Page 48: Information On The Display During A Wash Cycle

    InnoWave Ultra+ Sonic Irrigator Operator Manual Information on the Display During a Wash Cycle Figure 4.1 Example of the display during a wash cycle A. Pause; touch to pause the wash cycle. B. Current wash cycle stage. C. Temperature of fluids (water and chemical mix) in the tank. D.
  • Page 49 InnoWave Ultra+ Sonic Irrigator Operator Manual Symbols in the center of the display give additional information on the equipment activity during the wash stages: Symbol Meaning Represents the inlets to tank. Blue represents cold water inlet, red represents hot water inlet, yellow represents chemical inlet. When an inlet is open, allowing fluids into tank, a "stream"...
  • Page 50 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...
  • Page 51 InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Preparing Chemicals This chapter describes the use of chemicals with the sonic irrigator. 5.1 Use of Chemicals 5.2 Recommended Chemistries — North America Only 5.3 Recommended Chemistries — Outside North America 5.4 Connecting the Chemical Pickup 5.5 Using a Chemical Bottle 5.6 Priming the Chemical Pump PREPARING CHEMICALS...

  • Page 52: Use Of Chemicals

    InnoWave Ultra+ Sonic Irrigator Operator Manual Use of Chemicals The sonic irrigator has been designed to connect to a chemical bottle. Chemical is required during the main wash stage of a wash program. The chemical bottle is placed close to the sonic irrigator and is drawn up through a chemical pickup when required by wash program settings.

  • Page 53: Recommended Chemistries - North America Only

    InnoWave Ultra+ Sonic Irrigator Operator Manual Recommended Chemistries — North America Only CAUTION Using non- recommended chemicals, accessories, and replacement parts may cause damage to the equipment and could void both your warranty and guarantee of performance. Item Ref. Description 1C2408 Prolystica™...

  • Page 54: Recommended Chemistries - Outside North America

    InnoWave Ultra+ Sonic Irrigator Operator Manual Recommended Chemistries — Outside North America CAUTION Using non- recommended chemicals, accessories, and replacement parts may cause damage to the equipment and could void both your warranty and guarantee of performance. Item Ref. Description 1C39T4WR 8E-Zyme™...
  • Page 55 InnoWave Ultra+ Sonic Irrigator Operator Manual Push the connector of the chemical pickup into the chemical port. When fully inserted, a pin is pushed in and a securing clip moves to hold the connector in place. Tug gently on the connector to make sure it is held in the port and does not detach.

  • Page 56: Using A Chemical Bottle

    InnoWave Ultra+ Sonic Irrigator Operator Manual Push the connector of the chemical pickup into the chemical port. When fully inserted, a pin is pushed in and a securing clip moves to hold the connector in place. Tug gently on the connector to make sure it is held in the port and does not detach.
  • Page 57 InnoWave Ultra+ Sonic Irrigator Operator Manual The chemical bottle should be regularly replaced with fresh chemical, and whenever chemical is insufficient for planned wash cycles. The quantity of chemical in bottle should be checked regularly before wash operations. If the chemical pickup has been used previously with a chemical bottle, remove the chemical pickup from the old chemical bottle.

  • Page 58: Priming The Chemical Pump

    InnoWave Ultra+ Sonic Irrigator Operator Manual Priming the Chemical Pump Priming the chemical pump prevents cross- contamination when changing a chemical bottle, and ensures the correct dosage of chemical is delivered into the tank when demanded. The chemical pump should be primed in the following situations: Before the first wash cycle.
  • Page 59 InnoWave Ultra+ Sonic Irrigator Operator Manual On the display, from the main menu, touch repeatedly on until the flask is centered and Prime Chem. Pump and Detergent appear below the symbol flask symbol. On the display, touch Prime Chem. Pump at the bottom of screen. The button changes color to indicate that the chemical pump is now active and pumping chemical from the chemical bottle.
  • Page 60 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 61: Using The Instrument Basket

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Using the Instrument Basket This chapter describes the use of the instrument basket. 6.1 The Instrument Basket 6.2 Removing the Basket from the Tank 6.3 Loading General Instruments 6.4 Loading Cannulated Instruments 6.5 Docking the Basket into the Tank 6.6 Unloading Instruments from the Basket USING THE INSTRUMENT BASKET...

  • Page 62: The Instrument Basket

    InnoWave Ultra+ Sonic Irrigator Operator Manual The Instrument Basket The instrument basket has 6 flush ports for lumen flushing of cannulated instruments. The basket can be used to process instruments of the following types: General surgical instruments Cannulated (lumened) instruments The instrument basket can be loaded with a mix of general and cannulated instruments.

  • Page 63: Removing The Basket From The Tank

    InnoWave Ultra+ Sonic Irrigator Operator Manual Removing the Basket from the Tank The basket should always be removed from the tank for loading and unloading of instruments. Never place instruments directly into the tank. WARNING — Burn hazard Since temperatures within the equipment can reach +60 °C (+140 °F) during and after operation, take care when opening the lid at the end of a wash cycle.

  • Page 64: Loading General Instruments

    InnoWave Ultra+ Sonic Irrigator Operator Manual Move the basket to a draining area away from the sonic irrigator to allow any residual fluid to drain out. If the basket contain instruments that have been processed in a wash cycle, see Unloading Instruments from the Basket on page 61.

  • Page 65: Loading Cannulated Instruments

    InnoWave Ultra+ Sonic Irrigator Operator Manual Any small instruments that may fall through the basket mesh should be first placed inside a smaller mesh tray, and then placed in the basket. If no cannulated instruments are being processed, make sure a luer hose attached to a distal connector is added to each flush manifold to aid water circulation.
  • Page 66 InnoWave Ultra+ Sonic Irrigator Operator Manual Select a distal connector that best fits over the end of the instrument. The distal pack, included with the equipment when shipped, has 4 sizes of distal connector. The instrument should be able to push through the silicone opening of the distal connector and not fall out, but not be held tightly as the area being clamped will not be cleaned.
  • Page 67 InnoWave Ultra+ Sonic Irrigator Operator Manual Place the instrument with attached distal connector and luer hose into the basket. Make sure the instrument does not poke through the basket or point upwards. Attach the luer hose to a basket flush port. Push the connector of the luer hose into a port until it clicks into position.

  • Page 68: Docking The Basket Into The Tank

    InnoWave Ultra+ Sonic Irrigator Operator Manual Docking the Basket into the Tank The basket should be docked in the tank before attempting to start a wash cycle. Make sure that instruments are completely contained within the basket and are not in contact with either the walls or floor of the tank.
  • Page 69 InnoWave Ultra+ Sonic Irrigator Operator Manual Clean the 3 water level sensors with a soft nylon brush or non-greasy alcohol wipes. Inspect the 2 tank ports. The tank ports should be clear of any debris or deposits, and the red silicone port seal should be present and in good condition. Make sure that no instruments protrude through or above the basket and that no instruments are pointing upwards.
  • Page 70 InnoWave Ultra+ Sonic Irrigator Operator Manual The basket will only dock in the tank when orientated with flush ports at the front. Always orientate the basket so that the flush ports are at the front before attempting to dock the basket in the tank. Slowly lower the basket into the tank, keeping it level at all times.

  • Page 71: Unloading Instruments From The Basket

    InnoWave Ultra+ Sonic Irrigator Operator Manual 10. Release the basket handles and make sure the side latches engage over the top edge of the basket on both sides. If necessary, push the basket down until both side latches are engaged. Unloading Instruments from the Basket IMPORTANT It is recommended that hoses are removed one at a time in order to inspect the...
  • Page 72 InnoWave Ultra+ Sonic Irrigator Operator Manual Push the tab on the basket flush port to release the luer hose, then pull the luer hose to disconnect it from the basket flush port. Turn the luer lock counter-clockwise to disconnect the luer hose from the distal connector.
  • Page 73 InnoWave Ultra+ Sonic Irrigator Operator Manual Inspect the luer hose and distal connector for ruptures or damage. Discard any damaged luer hose or distal connector. If the luer hose or distal connector is damaged, the instrument will require reprocessing. USING THE INSTRUMENT BASKET...
  • Page 74 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 75: Performing A Wash Cycle

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Performing a Wash Cycle This chapter describes how to perform a wash cycle, monitor progress of a wash cycle, and confirm completion of a successful wash cycle. 7.1 Cleaning Before Every Wash Cycle 7.2 Selecting a Wash Program 7.3 Starting a Wash Cycle 7.4 Wash Cycle Stages...

  • Page 76: Cleaning Before Every Wash Cycle

    InnoWave Ultra+ Sonic Irrigator Operator Manual Cleaning Before Every Wash Cycle The following cleaning should always be performed before every wash cycle, unless the tank fluids have been retained using the rewash function. In the case of a tank full of fluids, only step 1 below can be performed.
  • Page 77 InnoWave Ultra+ Sonic Irrigator Operator Manual If the tank is empty, remove the filter from the tank drain. Clean the filter with disinfectant cleaner, then rinse under running water. Fit the filter in the tank. If the tank is empty, clean the 3 water level sensors with a soft nylon brush or non- greasy alcohol wipes.

  • Page 78: Selecting A Wash Program

    InnoWave Ultra+ Sonic Irrigator Operator Manual Selecting a Wash Program The wash program that the sonic irrigator will use for the next wash cycle is shown on the Load Instruments screen. The sonic irrigator defaults to the wash program last used. To select a different wash program, follow the procedure below.

  • Page 79: Starting A Wash Cycle

    InnoWave Ultra+ Sonic Irrigator Operator Manual Starting a Wash Cycle From the main menu, touch repeatedly until the start cycle symbol is centered and Load Instruments appears at the bottom of the display. Confirm that the wash program name shown on the display matches the desired wash program.

  • Page 80: Wash Cycle Stages

    InnoWave Ultra+ Sonic Irrigator Operator Manual Wash Cycle Stages The stages of a wash cycle are controlled by the wash program parameters. Some wash programs may skip some stages. The wash program parameters can be checked through the supervisor menu. Start cycle Confirm loading Confirm basket is docked in tank.

  • Page 81: On Completion Of A Wash Cycle

    InnoWave Ultra+ Sonic Irrigator Operator Manual On Completion of a Wash Cycle This procedure describes the operator actions necessary on the completion of a normal wash cycle, such as set in program 1 "Complete Wash Cycle". This procedure does not apply for the completion of rewash cycles, and instead actions described in On Completion of a Rewash Cycle...
  • Page 82 InnoWave Ultra+ Sonic Irrigator Operator Manual Open the lid slowly and partially to allow hot vapors to escape from the tank. When vapors have escaped, the lid can be opened fully. WARNING — Burn hazard Since temperatures within the equipment can reach +60 °C (+140 °F) during and after operation, take care when opening the lid at the end of a wash cycle.

  • Page 83: Pausing Or Aborting A Wash Cycle

    InnoWave Ultra+ Sonic Irrigator Operator Manual Pausing or Aborting a Wash Cycle During operation it is possible to pause or abort the wash cycle if required. During the wash cycle, touch the symbol located at the top-left of the display. The wash cycle is immediately paused and Cycle Paused appears on the display.

  • Page 84: Wash Cycle Errors

    InnoWave Ultra+ Sonic Irrigator Operator Manual Wash Cycle Errors If an unexpected condition occurs, the equipment will abort the wash cycle, emit an audible alarm, and an error message will be shown on the display with the reason for the abort.
  • Page 85 InnoWave Ultra+ Sonic Irrigator Operator Manual If the tank was not empty when the abort occurred, the tank will empty automatically. The sonic irrigator will then reset and the display returns to the main menu. Instruments must be reprocessed if the error occurred during the wash cycle. PERFORMING A WASH CYCLE...
  • Page 86 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 87: The Rewash Feature

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER The Rewash Feature This chapter describes the rewash feature, which can be set for any unlocked wash programs, and may be available on some shipped equipment configurations. 8.1 Rewash Program Setting 8.2 The Rewash Counter 8.3 On Completion of a Rewash Cycle THE REWASH FEATURE...

  • Page 88: Rewash Program Setting

    InnoWave Ultra+ Sonic Irrigator Operator Manual Rewash Program Setting Within a wash program, if the rewash parameter is set above zero, the rewash feature is enabled. When the rewash feature is enabled, the tank fluids do not drain at the end of the first wash cycle.

  • Page 89: On Completion Of A Rewash Cycle

    InnoWave Ultra+ Sonic Irrigator Operator Manual On Completion of a Rewash Cycle At the end of a rewash cycle, if the number of washes with tank fluids is less than the number set in the rewash counter, the tank fluids can be retained in the tank for the next wash cycle.
  • Page 90 InnoWave Ultra+ Sonic Irrigator Operator Manual Open the lid slowly and partially to allow hot vapors to escape from the tank. When hot vapors have escaped, the lid can be opened fully. WARNING — Burn hazard Since temperatures within the equipment can reach +60 °C (+140 °F) during and after operation, take care when opening the lid at the end of a wash cycle.
  • Page 91 InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Maintenance This chapter describes maintenance of the equipment, including periodic cleaning and inspection. WARNING — No user-serviceable parts No user-serviceable parts inside the equipment. To avoid personal injury, improper equipment performance, invalidation of the equipment warranty, or other costly damage, service and repair should only be performed by a service technician approved by the equipment manufacturer.

  • Page 92: Important Safety Information

    InnoWave Ultra+ Sonic Irrigator Operator Manual Important Safety Information Before performing any maintenance, make sure that the mains power is disconnected. All maintenance procedures should be carried out in a well-lit environment: the recommended minimum lighting level is 500 lux (46.5 foot-candle). Follow the recommended safety precautions for cleaning products in use.

  • Page 93: Daily Cleaning And Inspection

    InnoWave Ultra+ Sonic Irrigator Operator Manual Daily Cleaning and Inspection The cleaning and inspection described below is a general guide for use. The equipment owner should review and set a cleaning and inspection procedure that is appropriate for their frequency and manner of use. If the tank is full, due to the use of the rewash function, the tank should first be emptied by aborting the wash cycle, or choosing to end the rewash.
  • Page 94 InnoWave Ultra+ Sonic Irrigator Operator Manual Remove the basket from the tank and inspect it. Make sure the basket flush ports are undamaged and free of blockages or debris. Inspect under the basket and make sure the basket manifolds are undamaged and free of blockages or debris. Note: Basket manifolds are designed to fit loosely in the corners of the basket.
  • Page 95 InnoWave Ultra+ Sonic Irrigator Operator Manual Remove the drain filter from the drain. Inspect the condition of the filter. Remove any soil and clean the filter with a disinfectant cleaner and then rinse under running water. Refit the filter in the tank drain. Clean the 3 water level sensors with a soft nylon brush or non-greasy alcohol wipes.

  • Page 96: Weekly Cleaning And Inspection

    InnoWave Ultra+ Sonic Irrigator Operator Manual 11. With a clean wet cloth, remove any trace of disinfectant cleaner from internal and external surfaces of the sonic irrigator and the lid. 12. Cleaning performance should be tested each day the sonic irrigator is used, and all test results recorded.

  • Page 97: Time Setting Adjustment

    InnoWave Ultra+ Sonic Irrigator Operator Manual 9.4.1 Time Setting Adjustment On the display, within the main menu, touch repeatedly until the clock symbol is centered and the time and date appear below it Touch Set Time at the bottom of the display. On the Set Time screen, touch to adjust hours, minutes, seconds settings as required.

  • Page 98: Performing A Full Decontamination

    InnoWave Ultra+ Sonic Irrigator Operator Manual On the Set Date screen, touch to adjust day, month, year settings as required. Touch to return to the main menu. Performing a Full Decontamination Perform a daily cleaning procedure according to Daily Cleaning and Inspection page 83.
  • Page 99 InnoWave Ultra+ Sonic Irrigator Operator Manual Put the container of disinfectant solution in the basket. Connect a luer hose with an attached distal connector to a flush port on each basket manifold. This aids fluid circulation to ensure both manifolds are disinfected. Put the basket into the tank and make sure it is fully docked.

  • Page 100: Accessories And Replacement Parts

    InnoWave Ultra+ Sonic Irrigator Operator Manual Confirm that the wash cycle completed with no errors. 10. If preparing equipment for shipping, fill out a Decontamination Certificate. See Decontamination Certificate on page 149. If the Decontamination Certificate is not visible, the courier and/or the supplier can refuse to accept item(s).

  • Page 101: Equipment Servicing

    InnoWave Ultra+ Sonic Irrigator Operator Manual Table 9.1 Accessories and Replacement Parts (continued) Item number Description IW1028 Distal connectors yellowe, 8 mm (pack of 10) IW1029 Distal connectors green, 12 mm (pack of 10) MED4817 Chemical pickup HOSE002 Water inlet hose with blue indicator HOSE007 Water inlet hose, stainless steel HOSE010...
  • Page 102 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 103: The Supervisor Menu

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER The Supervisor Menu This chapter describes the supervisor menu. 10.1 Functions Available Through the Supervisor Menu 10.2 Unlocking the Supervisor Menu 10.3 Changing the Supervisor PIN 10.4 Viewing Locked Wash Programs 10.5 Viewing or Editing Unlocked Wash Programs 10.6 Changing the Language Used by the Display THE SUPERVISOR MENU...

  • Page 104: Functions Available Through The Supervisor Menu

    InnoWave Ultra+ Sonic Irrigator Operator Manual 10.1 Functions Available Through the Supervisor Menu The supervisor menu unlocks access to following: • Change the PIN used to unlock the supervisor menu. • View factory-set wash programs settings. • Edit user-definable wash programs settings (if enabled). •...

  • Page 105: Changing The Supervisor Pin

    InnoWave Ultra+ Sonic Irrigator Operator Manual 10.3 Changing the Supervisor PIN IMPORTANT If the supervisor PIN is changed and then forgotten, it can only be reset by a manufacturer-approved service technician. A service visit to reset the supervisor PIN is not covered by warranty, and is chargeable to the customer.

  • Page 106: Viewing Locked Wash Programs

    InnoWave Ultra+ Sonic Irrigator Operator Manual Use the number pad on display to confirm the new 6-digit supervisor PIN. If the new supervisor PIN entered the first and second time do not match, the supervisor PIN will not be changed and you must try again. If the new supervisor PIN entered the first and second time match, the supervisor PIN is changed and the display will return to Enter New Pin .
  • Page 107 InnoWave Ultra+ Sonic Irrigator Operator Manual On the display, touch repeatedly until the wash program to be viewed appears under the wash program symbol Touch View Program to view the wash program parameters. Pre-wash On the left is the duration of the pre-wash stage in minutes.

  • Page 108: Viewing Or Editing Unlocked Wash Programs

    InnoWave Ultra+ Sonic Irrigator Operator Manual Rewash In the center is the number of times the tank fluids will be used for washing. If value is zero, rewash is not performed and tank fluids are drained after every washing stage. Rinsing On the left is the water temperature for the rinsing stage.
  • Page 109 InnoWave Ultra+ Sonic Irrigator Operator Manual IMPORTANT Sonic activity during the degassing and washing stages of a wash program can increase the temperature of the tank water at a rate up to 0.5 °C/min. (0.9 °F/min.). Setting a hot wash cycle with a long period of degassing and a long duration wash stage can cause the tank water to exceed the maximum permitted temperature, resulting in the system aborting the cycle and reporting error code 23 ( water temperature too high ).
  • Page 110 InnoWave Ultra+ Sonic Irrigator Operator Manual Pre-wash On the left, set the duration of the pre-wash in minutes (0 to 20). On the right, set the number of times the pre-wash is performed (0 to 3). If either value is set to zero, pre-wash is not performed.
  • Page 111 InnoWave Ultra+ Sonic Irrigator Operator Manual Rinsing On the left, set the water temperature (0 °C to +60 °C, or +32 °F to +140 °F). In the center, set the duration in minutes (0 to 20). On the right, set the number of times the rinsing stage is performed (0 to 3). If either duration or number of times is set to zero, rinsing is not performed.

  • Page 112: Changing The Language Used By The Display

    InnoWave Ultra+ Sonic Irrigator Operator Manual 10.6 Changing the Language Used by the Display Unlock the supervisor menu using the supervisor PIN. See Unlocking the Supervisor Menu on page 94. On the display, touch repeatedly until the symbol is centered and Language appears.
  • Page 113 InnoWave Ultra+ Sonic Irrigator Operator Manual Touch OK to confirm the language selection. The language used by the equipment is changed and the display returns to the Language screen. THE SUPERVISOR MENU...
  • Page 114 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 115: Downloading Wash Cycle Logs

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Downloading Wash Cycle Logs During wash operations, parameters are reported at key stages as an ASCII serial data stream. This cycle log is stored in internal memory and can be downloaded onto a connected USB flash drive for external reporting and analysis.

  • Page 116: Recommended Usb Flash Drives

    InnoWave Ultra+ Sonic Irrigator Operator Manual 11.1 Recommended USB Flash Drives The following brands are recommended for use with this equipment: • Toshiba TransMemory • Kingston Data Traveler • SanDisk Cruzer Switch 11.2 Downloading Logs to a USB Flash Drive Make sure the USB flash drive is formatted to FAT32.
  • Page 117 Touch OK on the display to return to the main menu. Remove the USB flash drive from the data port. On the USB flash drive, the wash cycle logs are saved in the following location: STERIS\<machine serial number>\<cycle range>\<cycle number>.txt DOWNLOADING WASH CYCLE LOGS...
  • Page 118 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 119: Troubleshooting

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Troubleshooting This chapter describes error messages that may be shown, and performance issues that may occur during operation of the equipment. When an error message or performance issue occurs, the following tables indicate common causes of errors, and corrective actions. If an error cannot be diagnosed and corrected, or a problem occurs which is not described in this manual, please contact supplier.

  • Page 120: Diagnosing Error Codes

    InnoWave Ultra+ Sonic Irrigator Operator Manual 12.1 Diagnosing Error Codes Use the table below to diagnose and remedy error codes reported on the display. Table 12.1 Error Codes and Remedy Actions Error Error Message Description Code Mains supply to equipment was interrupted during a cycle. Mains power removed Turn equipment back on and repeat cycle.
  • Page 121 InnoWave Ultra+ Sonic Irrigator Operator Manual Table 12.1 Error Codes and Remedy Actions (continued) Error Error Message Description Code Make sure non-foaming chemical is being used. Chamber water level Check equipment and water connections for leaks. If equipment is leaking, contact supplier to arrange a qualified technician inspection.
  • Page 122 InnoWave Ultra+ Sonic Irrigator Operator Manual Table 12.1 Error Codes and Remedy Actions (continued) Error Error Message Description Code Switch the equipment off, then on again. If problem Sonic generator over persists, contact supplier to arrange a qualified technician current inspection.
  • Page 123 InnoWave Ultra+ Sonic Irrigator Operator Manual Table 12.1 Error Codes and Remedy Actions (continued) Error Error Message Description Code Make sure room temperature is below +40 °C (+104 °F). Internal ambient temperature too high Make sure cooling fan air intake is not blocked or restricted.

  • Page 124: Troubleshooting Equipment Performance

    InnoWave Ultra+ Sonic Irrigator Operator Manual 12.2 Troubleshooting Equipment Performance Use the tables below to diagnose and remedy any performance issues. Observed problem: Sonic irrigator does not power-up. Possible causes and solutions: Make sure that the main disconnect switch is in the ON position and that electrical power is supplied to the equipment.
  • Page 125 InnoWave Ultra+ Sonic Irrigator Operator Manual Observed problem: Check Chemical appears on the display. Possible causes and solutions: Make sure that there is sufficient chemical required by the wash program and replace the bottle if there is insufficient chemical. Make sure that the chemical pickup is fully-inserted into the chemical bottle. Make sure that the chemical pickup is not kinked or restricted.
  • Page 126 InnoWave Ultra+ Sonic Irrigator Operator Manual Observed problem: Wipe Fill Sensors appears on the display. Possible causes and solutions: Debris on the water level sensors can cause a fill timeout. The 3 water level sensors should be cleaned. If the fault persists after thorough cleaning, contact supplier.
  • Page 127 InnoWave Ultra+ Sonic Irrigator Operator Manual Observed problem: Instruments not clean after wash cycle. Possible causes and solutions: Make sure that only a recommended chemical is used. Make sure that the chemical is used according to manufacturer instruction. Instruments may be excessively soiled or have been left soiled for more than 2 hours.
  • Page 128 InnoWave Ultra+ Sonic Irrigator Operator Manual Observed problem: Close lid appears on the display. Possible causes and solutions: Make sure that the lid is completely closed. Make sure that instruments in the basket are not preventing the lid from closing. Observed problem: Instrument channels and inside surfaces not cleaned.
  • Page 129 Note: The equipment basket should always be used, and the indicator(s) placed inside the basket. Make sure to use only a chemical that is recommended by STERIS and the indicator IFU. Make sure that the chemical dose is as stated in the wash program parameters, and the indicator IFU.
  • Page 130 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...
  • Page 131 InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Wash Programs This chapter details the wash programs that may be setup on a sonic when shipped. 13.1 Wash Program Configuration 13.2 Complete Wash Cycle Program 13.3 Wash Only Program 13.4 Open Programs 13.5 Decontamination Program WASH PROGRAMS...

  • Page 132: Wash Program Configuration

    InnoWave Ultra+ Sonic Irrigator Operator Manual 13.1 Wash Program Configuration A total of 6 wash programs are stored in the sonic irrigator internal memory. The wash programs are loaded into the equipment memory before shipping. The table below describes the wash program set that is currently shipped. Table 13.1 Wash Program Configuration Program slot Unlocked (editable)

  • Page 133: Complete Wash Cycle Program

    InnoWave Ultra+ Sonic Irrigator Operator Manual 13.2 Complete Wash Cycle Program The Complete Wash Cycle program is validated to clean, with certainty, up to 5.0 kg (11.0 lb) of instruments. Instruments go through a prewash to dislodge visible soil and blood particles. The use of cold water during this stage avoids blood clotting or the formation of protein prions.

  • Page 134: Wash Only Program

    InnoWave Ultra+ Sonic Irrigator Operator Manual 13.3 Wash Only Program The factory- set Wash Only program is intended for the processing of heavily- soiled instruments or as a quick wash process before full cleaning. There is no pre-soak stage and the program proceeds immediately to the main wash stage. The tank is filled from hot and cold inlets.

  • Page 135: Decontamination Program

    InnoWave Ultra+ Sonic Irrigator Operator Manual Table 13.4 Open Program Settings Program numbers P3, P4, P5 Program name Open Supervisor editable yes (unlocked) Stage Parameter Default setting Duration 0 minutes Pre-wash Washes 1 Degassing Duration 0 minutes Detergent dose 160 ml (5.41 fl.oz) Washing Temperature +40 °C (+104 °F) Duration 0 minutes...
  • Page 136 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 137: Specification

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Specification This chapter provides information on the performance and physical specifications of the equipment. 14.1 Performance 14.2 Electrical Supply Requirements 14.3 Water Supply Requirements 14.4 Site Drain Requirements 14.5 Overall Dimensions and Weight 14.6 Tank Dimensions and Capacity 14.7 Basket Dimensions and Capacity 14.8 Languages...

  • Page 138: Performance

    InnoWave Ultra+ Sonic Irrigator Operator Manual 14.1 Performance Equipment designation Healthcare sonic irrigator Medical device class I Classifications Class 1 electrical shock protection, externally powered No applied parts IP rating: IPX0 Not suitable for use in oxygen-rich environment Designed for continuous use Intended purpose Internal and external cleaning of surgical instruments, hollow-ware and associated products.

  • Page 139: Electrical Supply Requirements

    InnoWave Ultra+ Sonic Irrigator Operator Manual 14.2 Electrical Supply Requirements Mains supply voltage fluctuations up to ±10% of nominal All model variants voltage Transient over- voltages typically present on mains supply (Over-voltage Category II) Pollution Degree 2 Power: 1.2 kW Voltage: 110 Vac 1P+N (100 Vac to 127 Vac) IW522015- Frequency: 50 Hz...

  • Page 140: Site Drain Requirements

    InnoWave Ultra+ Sonic Irrigator Operator Manual 14.4 Site Drain Requirements Requirement Drain connection 19 mm (3/4 in.) hose tail outlet from unit. Drain must be fitted with suitable traps. No loops in the drain hose, cut the hose to length to required. Overflow connection 48 mm (1.9 in.) outside diameter connection from sonic irrigator.

  • Page 141: Basket Dimensions And Capacity

    InnoWave Ultra+ Sonic Irrigator Operator Manual 14.7 Basket Dimensions and Capacity Metric US Units Basket length 484 mm 19.0 in. Basket width 253 mm 10.0 in. Basket depth 76 mm 3.0 in. Maximum load weight 5.0 kg 11.0 lb Maximum luer connections 12 (6 ports connected to 'Y' adapted hoses) 14.8 Languages The ultrasonic cleaner language, for the display and wash cycle logs, can be set to any of...
  • Page 142 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 143: Terms, Definitions, And Symbols

    InnoWave Ultra+ Sonic Irrigator Operator Manual HAPTER Terms, Definitions, and Symbols This chapter details terms and definitions used throughout this manual, and symbols which may appear on the equipment. 15.1 Terms and Definitions 15.2 Visual Symbols TERMS, DEFINITIONS, AND SYMBOLS...

  • Page 144: Terms And Definitions

    InnoWave Ultra+ Sonic Irrigator Operator Manual 15.1 Terms and Definitions The terms, as defined below, may appear throughout this manual. Abort, Aborting Stopping wash cycle quickly and not allowing equipment to complete the wash program. Accessories Optional devices or fittings that can be used with, or extend the functionality of equipment. Additives Chemicals and detergents used with equipment to achieve optimal cleaning performance.
  • Page 145 InnoWave Ultra+ Sonic Irrigator Operator Manual Cavitation The foundation of ultrasonic cleaning occurs when ultrasonic energy is introduced into a cleaning solution. This energy causes alternating low and high pressure phases. During low pressure phases, minute bubbles (or vacuum cavities) are formed: during high pressure phases, bubbles implode violently.
  • Page 146 InnoWave Ultra+ Sonic Irrigator Operator Manual Detergent A water-soluble cleansing agent which combines with impurities and dirt to make them more soluble. Dispensing, Dispensation The action of chemical being transported, in controlled measure, from chemical bottle into tank. Distal connector A special connector that attaches to, and facilitates, flushing through hollow and cannulated instruments.
  • Page 147 InnoWave Ultra+ Sonic Irrigator Operator Manual Irrigation Process of cleaning instruments through the use of controlled water flow and/or spray. See also "flushing". Loading Placing (and/or connecting) instruments to be processed within the equipment basket and then putting basket inside tank. Locked Describes factory-set parameters and wash programs that cannot be edited by operators or supervisors.
  • Page 148 InnoWave Ultra+ Sonic Irrigator Operator Manual Operator Person using equipment according to its intended purpose, as part of their regular work actvity. Overflow An equipment feature that ensures fluid flows to drain in the event that tank is overfilled, and does not spill over unit or floor.
  • Page 149 InnoWave Ultra+ Sonic Irrigator Operator Manual Program A sequence of actions that equipment performs in order to clean instruments. Also referred to as a "cycle". Protective Earth An earth ground connection to physical ground. When a fault occurs, current flows from the power system to earth.
  • Page 150 InnoWave Ultra+ Sonic Irrigator Operator Manual Sonic irrigation The use of ultrasonic waves to dislodge contaminants from instrument surfaces, and flushing to remove debris from instruments. Supervisor An operator who is able to access Supervisor Menu by using a valid supervisor identification number.
  • Page 151 InnoWave Ultra+ Sonic Irrigator Operator Manual Warning Advice alerting of a danger that can potentially cause personal injury or death. TERMS, DEFINITIONS, AND SYMBOLS...

  • Page 152: Visual Symbols

    InnoWave Ultra+ Sonic Irrigator Operator Manual 15.2 Visual Symbols The following symbols may appear on the equipment: Table 15.1 Visual Symbols Symbol Description UL Listed Mark Certifies that equipment meets requirements and standards of Underwriters Laboratories (UL). Accompanied by UL listing reference. FCC Declaration of Conformity Certifies that electromagnetic interference from device is under limits approved by Federal Communications Commission.
  • Page 153 InnoWave Ultra+ Sonic Irrigator Operator Manual Table 15.1 Visual Symbols (continued) Symbol Description Manufacturer Catalog Number Accompanied by manufacturer code unique to equipment model. Manufacturer Serial Number Accompanied by manufacturer code unique to this equipment. Medical Device Indicates that this equipment is a medical device, as defined by Medical Device Regulations (MDR) 2017/745.
  • Page 154 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank...

  • Page 155: Appendices

    InnoWave Ultra+ Sonic Irrigator Operator Manual Appendices Appendix A: Service Record Appendix B: Training Records Appendix C: Decontamination Certificate Appendix D: Operator and Supervisor Authorization Codes APPENDICES...

  • Page 156: Appendix A: Service Record

    Operator Manual InnoWave Ultra+ Sonic Irrigator Appendix A: Service Record The table below should be updated whenever this equipment is serviced, and made available in the event of a warranty claim or a breakdown repair. 6-Month Service 12-Month Service Serviced by Serviced by Cycles since last service Cycles since last service...

  • Page 157: Appendix B: Training Records

    InnoWave Ultra+ Sonic Irrigator Operator Manual Appendix B: Training Records The table below can be used for keeping training records. Date Name Title of training Signature of trainer APPENDICES...
  • Page 158 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank APPENDICES...

  • Page 159: Appendix C: Decontamination Certificate

    InnoWave Ultra+ Sonic Irrigator Operator Manual Appendix C: Decontamination Certificate IMPORTANT A full decontamination MUST be done when shipping equipment to supplier for any reason, including returns for repair or servicing. If a completed Decontamination Certificate is not visible on outside of shipping crate, courier and/or supplier CAN REFUSE to accept item(s).
  • Page 160 InnoWave Ultra+ Sonic Irrigator Operator Manual This page intentionally blank APPENDICES...

  • Page 161: Appendix D: Operator And Supervisor Authorization Codes

    InnoWave Ultra+ Sonic Irrigator Operator Manual Appendix D: Operator and Supervisor Authorization Codes There are 80 operator numbers each with unique PIN. Operator Operator Operator Operator 2040 4060 6080 8020 2181 4121 6141 8161 2262 4282 6222 8242 2263 4383 6323 8343 2484...
  • Page 162 Operator Manual InnoWave Ultra+ Sonic Irrigator This page intentionally blank APPENDICES...

  • Page 163: Index

    InnoWave Ultra+ Sonic Irrigator Index Classifications 128 Cleaning See  Maintenance Compliance 15 Contact details i, 119 Aborting wash cycle See  Wash cycle Accessories ii, 6, 43, 90 Applied standards See  Standards Audio 128 Date (adjusting) See  Time and Date Date of manufacture 13, 142 Decontamination Certificate 90, 149 Basket...
  • Page 164 InnoWave Ultra+ Sonic Irrigator Enclosed items 17-18 Environment cleaning 66, 83 inspection 83 altitude range 131 magnet 66, 83 ambient operating temperature 131 opening 18, 29, 48, 53, 66, 72, 80, 83, maximum humidity 131 noise generated 131 seal 66, 83, 117 Errors See ...
  • Page 165 InnoWave Ultra+ Sonic Irrigator Priming chemical pump See  Chemicals Printer cable 20 Progress bar 38, 107 Tank dimensions 130 docking ports 58, 84 maximum liquid volume 130 Recirculation filter 20, 29, 58, 66, 84, 91, Time and Date clock battery 128 inspection 66, 84 control accuracy 128 replacing 66...
  • Page 166 InnoWave Ultra+ Sonic Irrigator Wash cycle abort 74 completion 71 degassing 39, 70, 97, 99, 111, 123-125 downloading onto USB drive ii, 106 errors ii, 74 flushing 39, 52, 55, 70, 118, 123-124 information on display during cycle 38 pausing 38, 73 sonics 39 stages 70 starting 37, 69...

This manual is also suitable for:

WultraplIw522015-Iw522026-Iw522035-Iw522036-

Table of Contents

Save PDF
