Around The Right Side Of The System - NEC VERSA VX Manual

Hard Disk Drive — An internal hard disk drive comes installed in the NEC Versa.
!
The disk drive is upgradeable.

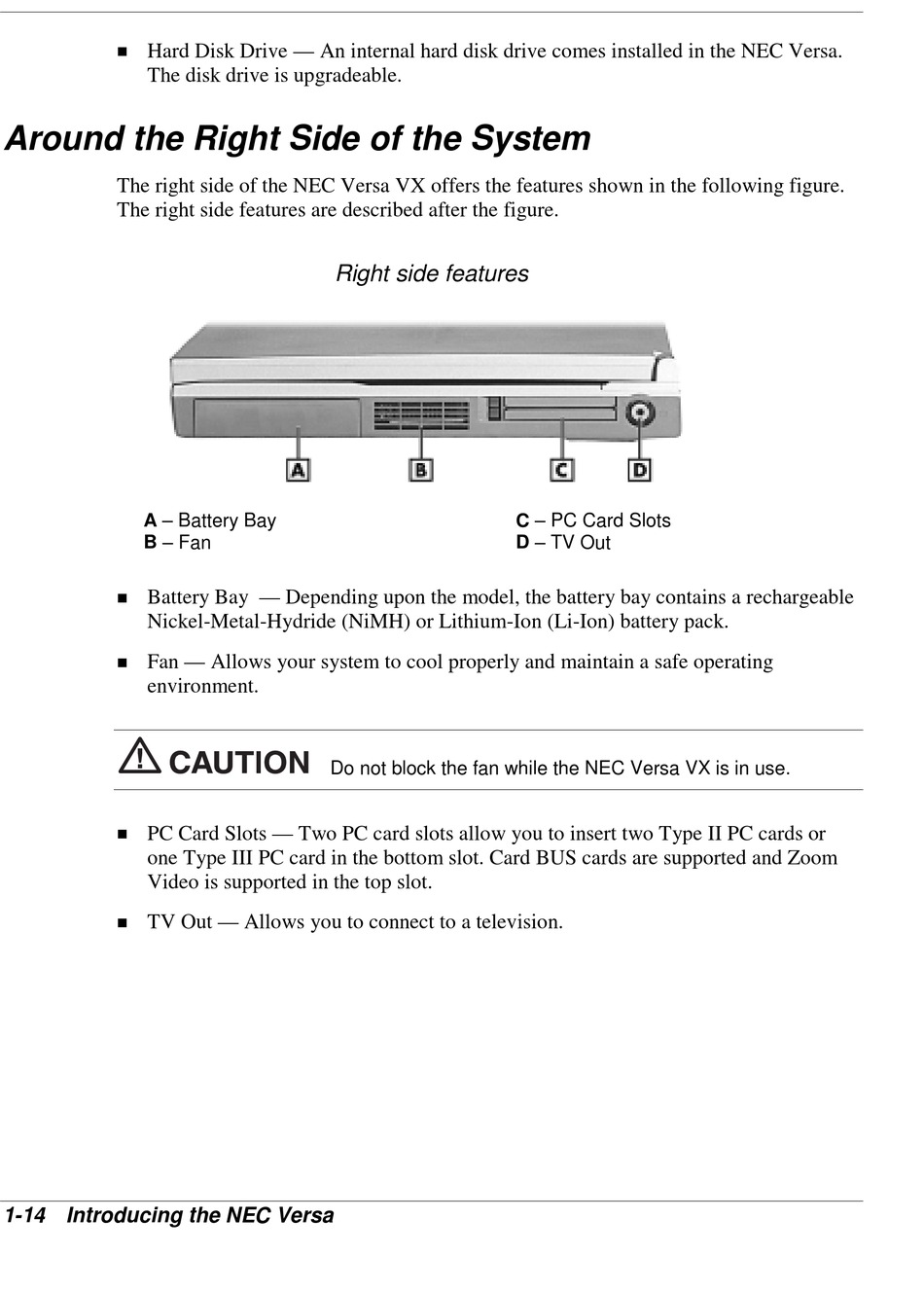

Around the Right Side of the System

The right side of the NEC Versa VX offers the features shown in the following figure.
The right side features are described after the figure.
A – Battery Bay
B – Fan
Battery Bay — Depending upon the model, the battery bay contains a rechargeable
!
Nickel-Metal-Hydride (NiMH) or Lithium-Ion (Li-Ion) battery pack.
Fan — Allows your system to cool properly and maintain a safe operating
!
environment.
PC Card Slots — Two PC card slots allow you to insert two Type II PC cards or
!
one Type III PC card in the bottom slot. Card BUS cards are supported and Zoom
Video is supported in the top slot.
TV Out — Allows you to connect to a television.
!
1-14 Introducing the NEC Versa
Right side features
Do not block the fan while the NEC Versa VX is in use.
C – PC Card Slots
D – TV Out
