— Line In — Lets you use another audio system, like a home stereo, as an input
— Headphones — Lets you plug in stereo headphones or powered speakers.
Volume Control — Allows you to control the speaker volume through the thumb
!
wheel.

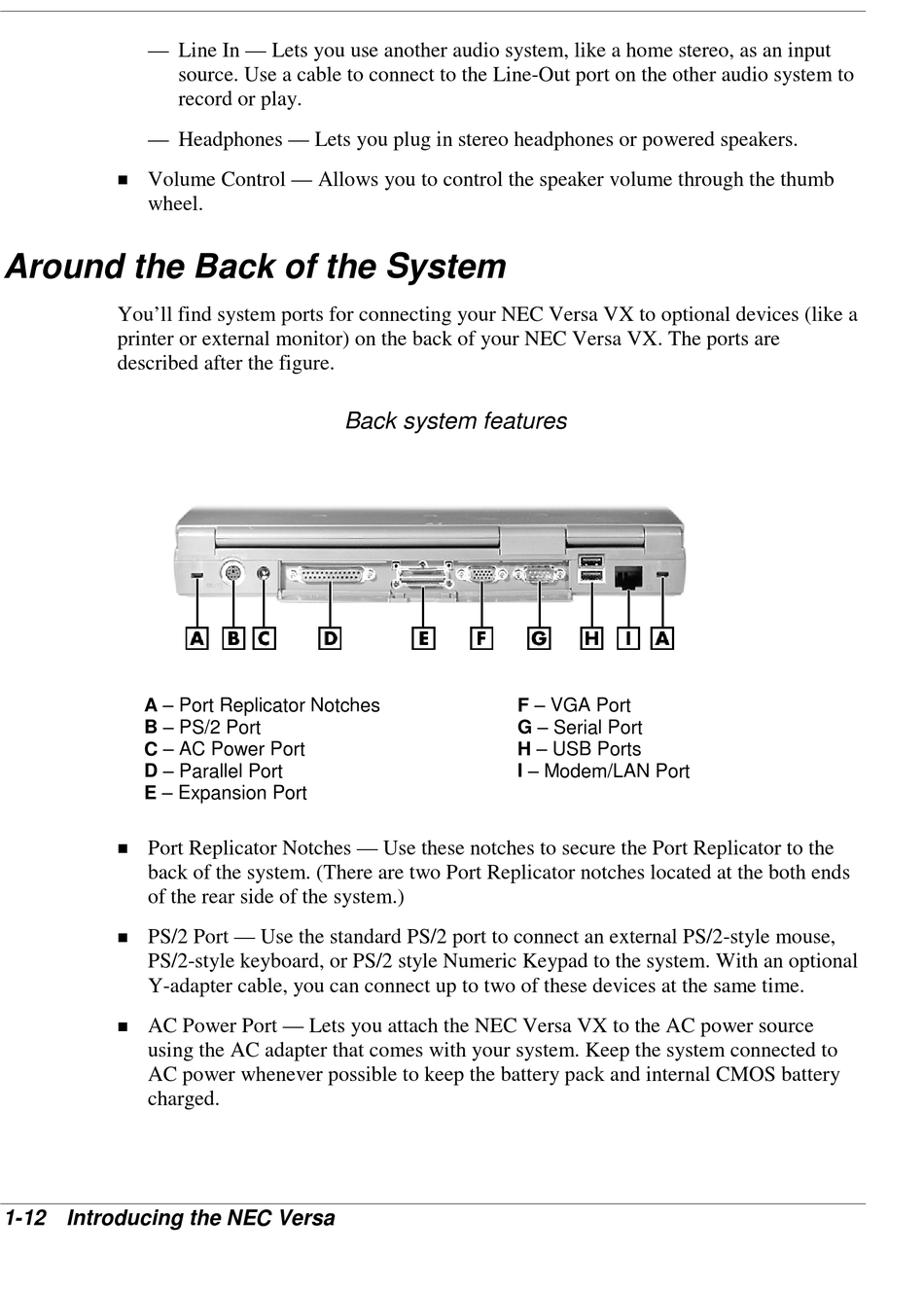

Around the Back of the System

You'll find system ports for connecting your NEC Versa VX to optional devices (like a
printer or external monitor) on the back of your NEC Versa VX. The ports are
described after the figure.
A – Port Replicator Notches
B – PS/2 Port
C – AC Power Port
D – Parallel Port
E – Expansion Port
Port Replicator Notches — Use these notches to secure the Port Replicator to the
!
back of the system. (There are two Port Replicator notches located at the both ends
of the rear side of the system.)
PS/2 Port — Use the standard PS/2 port to connect an external PS/2-style mouse,
!
PS/2-style keyboard, or PS/2 style Numeric Keypad to the system. With an optional
Y-adapter cable, you can connect up to two of these devices at the same time.
AC Power Port — Lets you attach the NEC Versa VX to the AC power source
!
using the AC adapter that comes with your system. Keep the system connected to
AC power whenever possible to keep the battery pack and internal CMOS battery
charged.
1-12 Introducing the NEC Versa
source. Use a cable to connect to the Line-Out port on the other audio system to
record or play.
Back system features
F – VGA Port
G – Serial Port
H – USB Ports
I – Modem/LAN Port
