Ethernet Control and DMX Thru

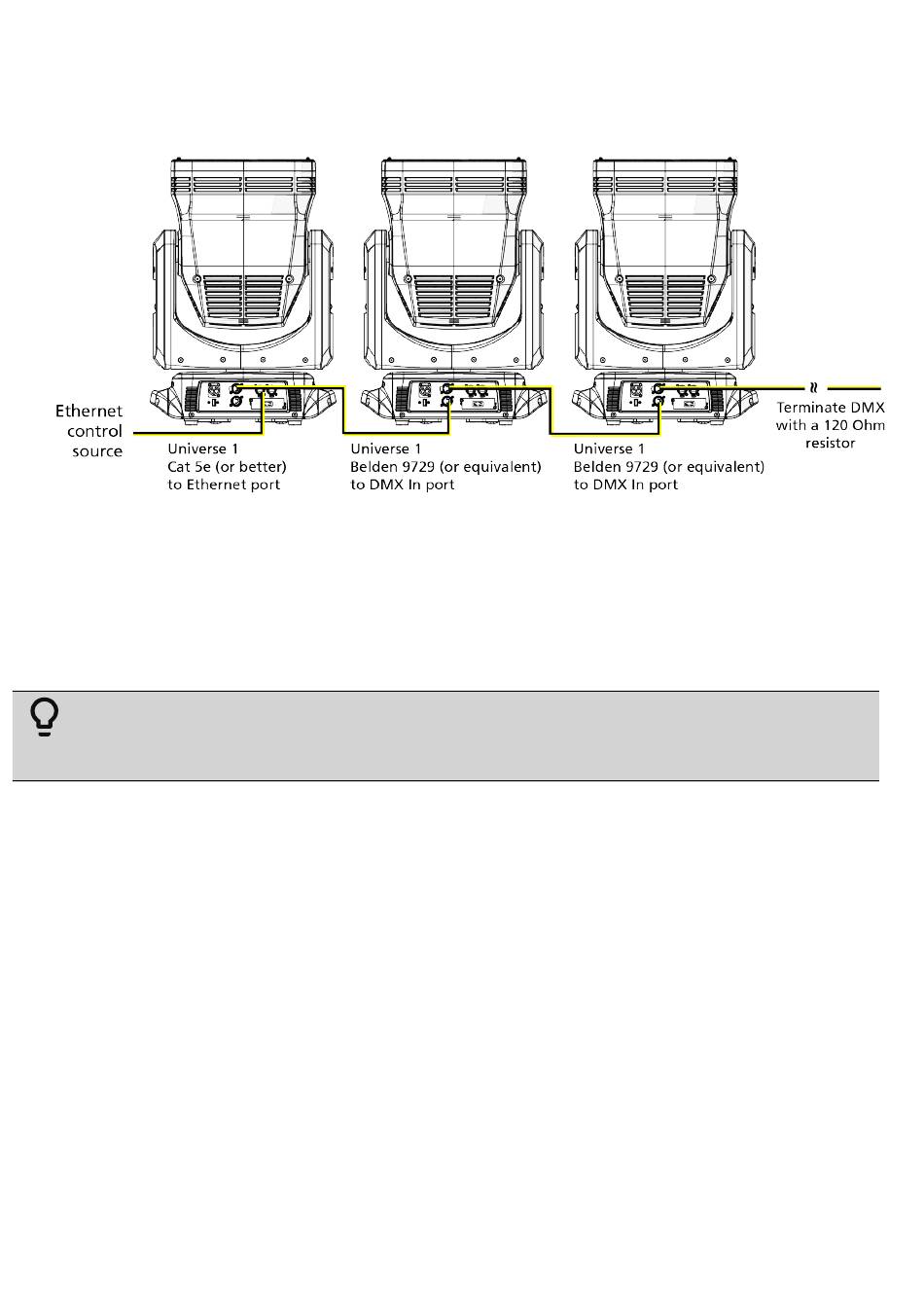

You can use Ethernet control and DMX Thru. When a fixture is set up to receive Ethernet
control input, it automatically distributes DMX via the DMX Thru port. The DMX signal is sent
as a single universe that corresponds to the universe of the fixture that is receiving Ethernet
control. This works with either the Art-Net protocol or sACN.
Set the DMX Start Address
Give each fixture a unique DMX starting address so that the correct fixture responds to the
control signals. This DMX start address is the channel number from which the fixture starts to
"listen" to the digital control information sent out from the control source.
Modify the fixture DMX start address on the user interface, located on the upper enclosure.
See Control Options on page 16
Example:
DMX starting address of the first fixture to 1, you could set the second fixture to 52
(51+1), the third to 103 (51+52), and so on.
Set the Control Source and Universe
For Ethernet control, you must configure the control source (Art-Net or sACN) and set a
universe (000-255) for each fixture. See
14
.
The Zeo requires 51 channels of control in standard mode. If you set the
Control Options on page 16
for details.
