Connecting Ei7. Built-In Encoders - SEW-Eurodrive DR Series Operating Instructions Manual

5.4

Connecting EI7. built-in encoders

INFORMATION
Observe the wiring diagrams in chapter "Overview of wiring diagrams"

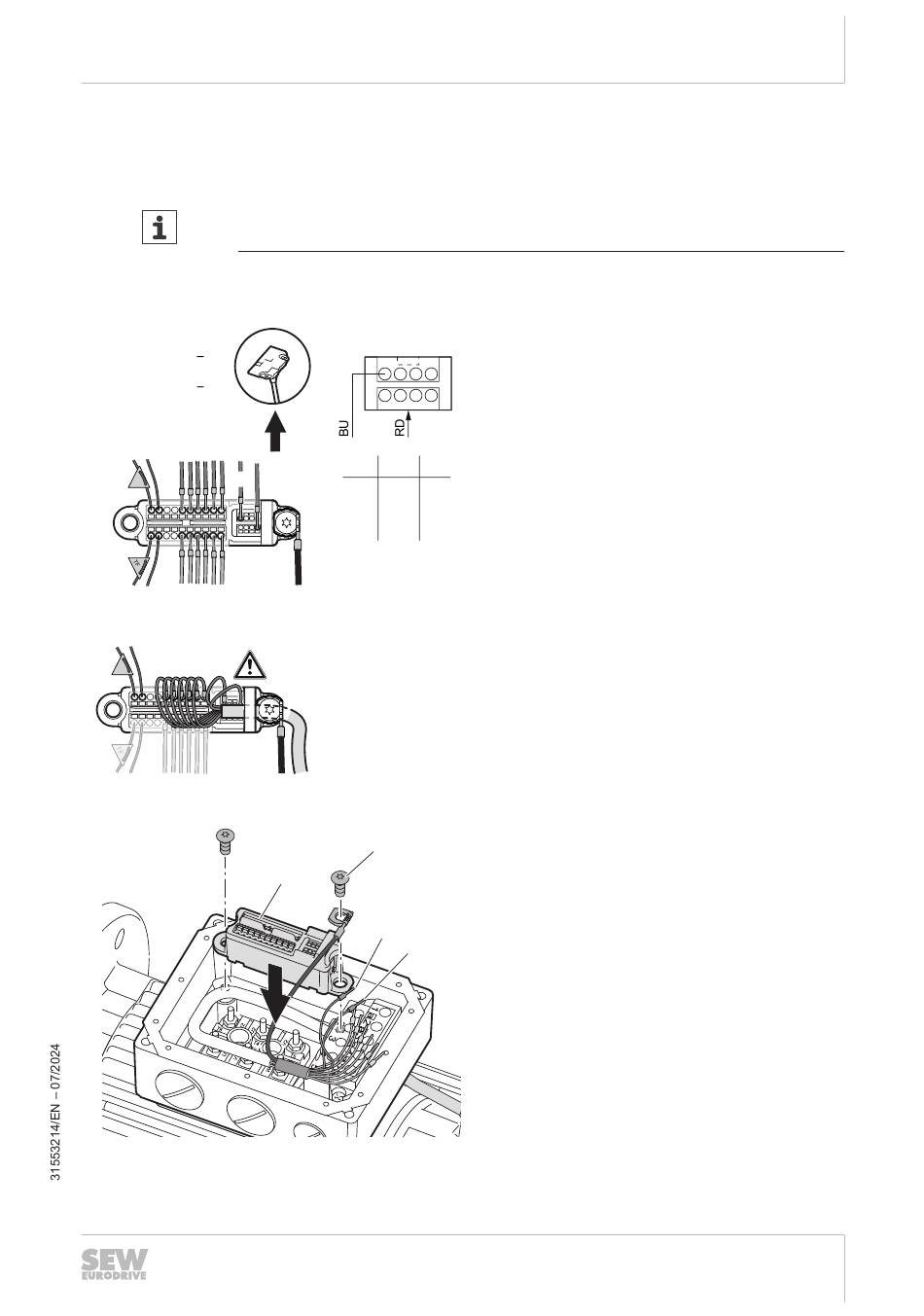

5.4.1 Wiring EI7. - with M12 connector and connection box
10 = GN = B
9 = YE = B
8 = WH = A
7 = BN = A
6 = PK = GND
5 = GY = +UB
1 < < 10
TF
TF
c
d
1 4
BU RD
EI71 c1 d4
EI72 c1 d3
EI76 c1 d2
EI7C c1 d1
9591928587
9656059787
[119] 5.0 Nm
[632] 1.8 Nm
[1522]
BU
RD
9592985483
Operating instructions – Built-In Encoders, Add-On Encoders and Safety Encoders
Electrical installation
Connecting EI7. built-in encoders
1. Wire the connection unit [1522] in accordance
with the installed encoder type and the wiring
diagrams (see "Overview of wiring diagrams").
1. Secure the connection unit with the M8 screws
[119] or M4 screws [632].
ð For M8 screws: Tightening torque 5 Nm
ð For M4 screws: Tightening torque 1.8 Nm
5
109
