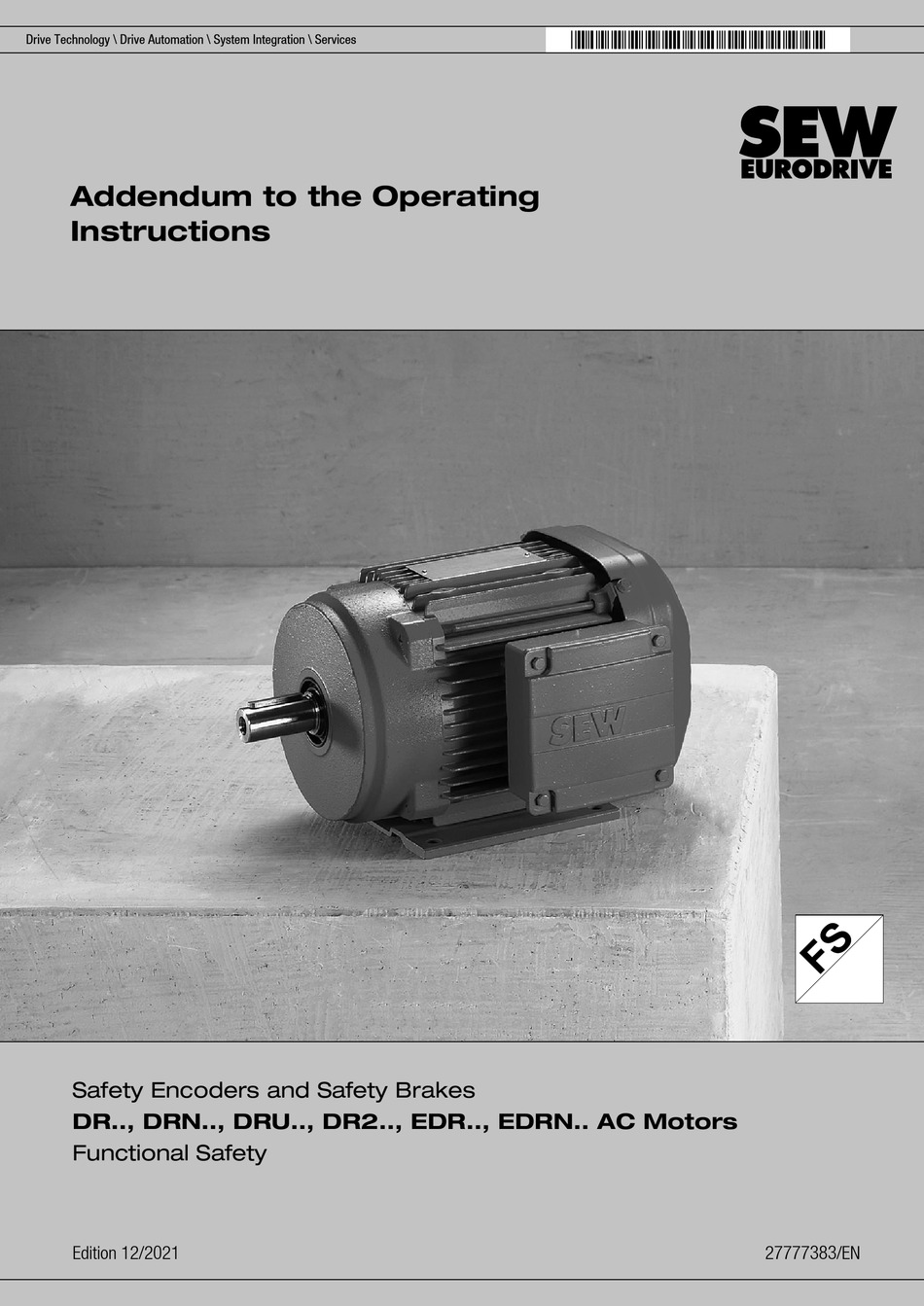

Drive Technology \ Drive Automation \ System Integration \ Services
Addendum to the Operating
Instructions
Safety Encoders and Safety Brakes
DR.., DRN.., DRU.., DR2.., EDR.., EDRN.. AC Motors
Functional Safety
Edition 12/2021
*27777383_1221*

27777383/EN
