Summary of Contents for SEW-Eurodrive DOP11B

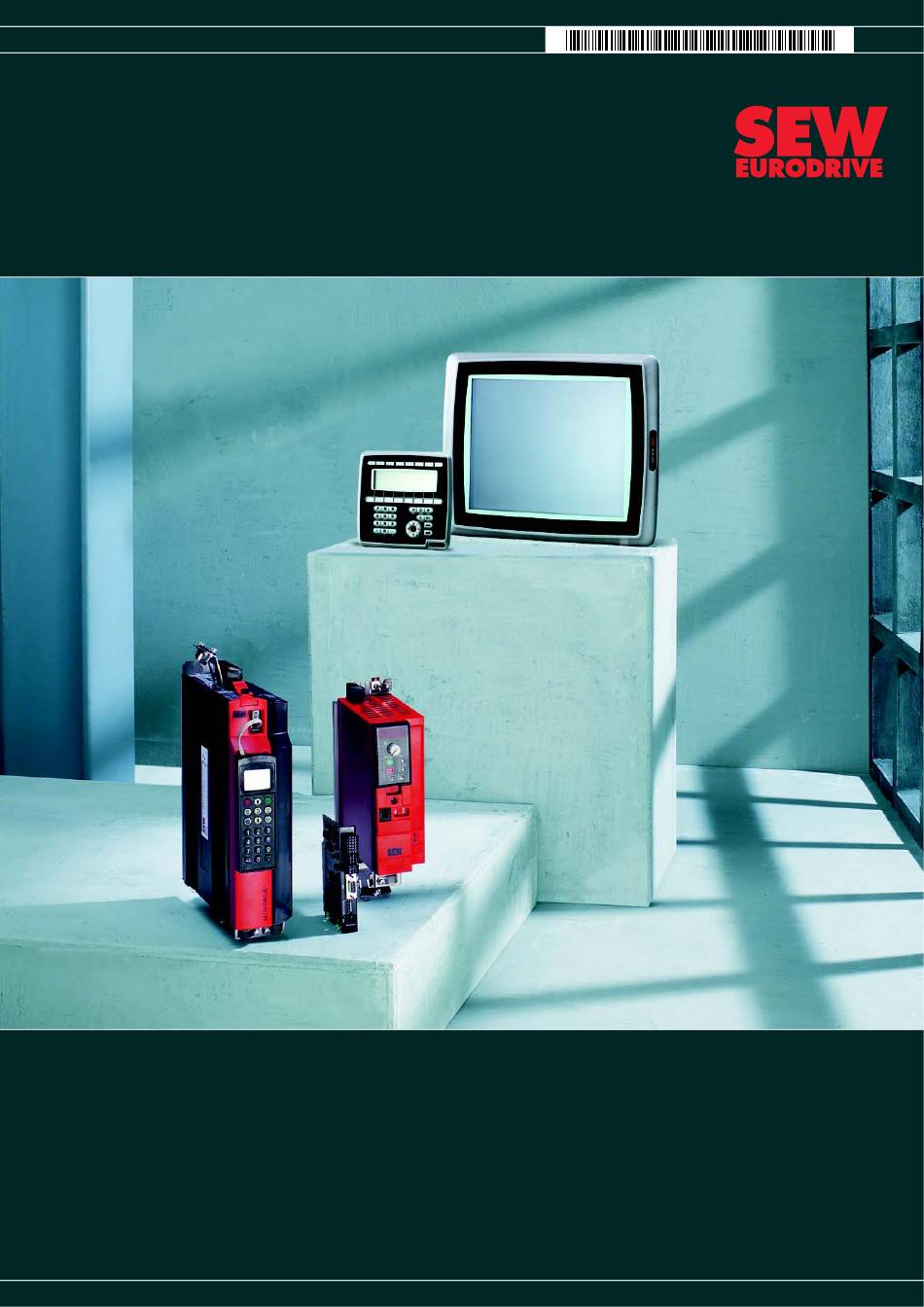

- Page 1 Drive Technology \ Drive Automation \ System Integration \ Services DOP11B Operator Terminals System Manual Edition 11/2008 16666828 EN...
- Page 2 SEW-EURODRIVE – Driving the world...
-
Page 3: Table Of Contents
Installation instructions for the basic unit ..........26 UL-compliant installation ................. 27 Space required for installation..............28 Installation procedure................29 Connecting basic units DOP11B-10 to DOP11B-60 ....... 31 Connection to a PC ................. 32 RS-485 connection ................. 33 Connecting RS-485 to PCS21A .............. 35 RS-232 connection via UWS11A ............ - Page 4 10.6 DOP11B-25 and -30 ................313 10.7 DOP11B-40................... 314 10.8 DOP11B-50................... 315 10.9 DOP11B-60................... 316 10.10 Label for DOP11B-10 to DOP11B-40 ........... 317 10.11 Label for DOP11B-50 and DOP11B-60 ..........317 10.12 Cable..................... 318 11 Appendix ......................320 11.1 Chemical resistance................320 11.2 Updating the operator terminal..............
-
Page 5: General Information
Possible dangerous situation Minor injuries Specific danger, e.g. electric shock STOP Possible damage to property Damage to the drive system or its environment NOTE Useful information or tip. Simplifies the handling of the drive system. System Manual – DOP11B Operator Terminals... -
Page 6: Right To Claim Under Limited Warranty
Notes on terminology The operator terminals of the DOP11B series (Drive Operator Panel) can communicate with SEW frequency inverters and selected programmable logic controllers (PLC) via different communication paths at the same time. -
Page 7: Safety Notes
Operation of the terminal is restricted to qualified personnel. Designated use The operator terminals of the DOP11B series are intended for the operation and diagnosis of industrial and commercial systems. A suitable response to communication errors between the DOP11B and the controller must be implemented for control. -
Page 8: Installation And Startup
Required protection devices: Overcurrent protective devices Safety functions WARNING The operator terminals of the DOP11B series may not execute any safety functions without higher-level safety systems. Severe or fatal injuries. • Use higher-level safety systems to ensure protection of equipment and personnel. -
Page 9: Transportation/Storage
Service and maintenance • The agreed limited warranty applies. • Clean the display and front of the terminal with a soft cloth and mild detergent. • Repairs must be performed by qualified personnel. System Manual – DOP11B Operator Terminals... -
Page 10: Unit Information, Installation And Hardware
The operator normally selects which menu is to be shown. The menus in the operator terminals are called blocks. Main menu Inverter Recipe Motor status Temperature status 53717AEN System Manual – DOP11B Operator Terminals... - Page 11 The functions are not only easy to use in the panel, they are also more cost-effective than conventional solutions with buttons, indicator lamps, time relays, preset counters and seven-day clocks. There are also functions to improve the application of the drive electronics. System Manual – DOP11B Operator Terminals...
- Page 12 If several blocks are used, the operator can switch between the different blocks by using jump commands. This creates a menu hierarchy, which produces a structured application. System Manual – DOP11B Operator Terminals...
- Page 13 LAN (Local Area Network), Internet or modem. In long production lines with many workplaces, several terminals can be connected to one or more controllers in the network. 10553AXX System Manual – DOP11B Operator Terminals...
- Page 14 When the PLC and inverter are connected to a terminal (two drivers in the terminal), data can be exchanged between the two units (analog and digital signals). RS-485 PLC protocol MOVILINK 60090AEN System Manual – DOP11B Operator Terminals...
-
Page 15: Unit Designation, Nameplates And Scope Of Delivery
Included in the scope of delivery: • DOP11B operator terminal • Installation equipment and installation template • Quick reference guide with assembly and installation notes • Phoenix COMBICON connector for DC 24 V, 5 mm, 3-pin System Manual – DOP11B Operator Terminals... -
Page 16: Dop11B-10 Unit Design
2 serial interfaces (RS-232 and RS-485 / RS-422); 2 can be used simultaneously • IP66 membrane keypad with navigation keys, numeric keypad and 6 function keys • 6 LEDs (two colors red / green) • 1 expansion slot • 512 KB application memory System Manual – DOP11B Operator Terminals... -
Page 17: Dop11B-15 Unit Design
2 serial interfaces (RS-232 and RS-485 / RS-422); 2 can be used simultaneously • IP66 membrane keypad with navigation keys, numeric keypad and 6 function keys • 6 LEDs (two colors red / green) • 1 expansion slot • 512 KB application memory System Manual – DOP11B Operator Terminals... -
Page 18: Dop11B-20 Unit Design
• 1 USB interface • IP66 membrane keypad with navigation keys, numeric keypad and 8 function keys • 16 LEDs (two colors red / green) • 1 expansion slot • 12 MB application memory System Manual – DOP11B Operator Terminals... -
Page 19: Dop11B-25 Unit Design
2 serial interfaces (RS-232, RS-485 / RS-422); 2 can be used simultaneously • 1 ETHERNET interface (RJ45 socket) • 1 USB interface • IP66 • Horizontal or vertical installation • 1 expansion slot • 12 MB application memory System Manual – DOP11B Operator Terminals... -
Page 20: Dop11B-30 Unit Design
2 serial interfaces (RS-232, RS-485 / RS-422); 2 can be used simultaneously • 1 ETHERNET interface (RJ45 socket) • 1 USB interface • IP66 • Horizontal or vertical installation • 1 expansion slot • 12 MB application memory System Manual – DOP11B Operator Terminals...
