TOUCH SCREEN CONTROL PANEL (KEYPAD)
On the upper front of the BWT AQA DRINK OFFICE model luminaire
are located the touch control buttons for water dispensing.
A description of the function of the individual buttons is given with reference to the
figure.
Room temperature, chilled, chilled carbonated water is dispensed with the first touch of the touch button
keypad lock (padlock) and the next touch of the button corresponding to t h e desired water type. Dispensing is stopped
by a further touch of the button corresponding to the desired water type.
The activation switches for cold water (cold) and chilled water (chilling) are located at the rear of the appliance. The activation of
cold water (cold) and the operation of the compressor of the refrigeration circuit (chilling) are indicated on the front of the
appliance by LED indicators.
The symbols on the control panel refer to the following functions:
◼ Room temperature water supply
◼ Cold water supply
Carbonated water supply
◼
◼ Keypad lock (padlock)
The LED indicators refer to the following functions:
COLD: Cold water activation
CHILLING: Refrigeration compressor service.
TEMPERATURE REGULATION
The temperature of the chilled water delivered by the appliance is adjustable (depending on the ambient temperature and the
temperature of the water to be treated) by means of the electromechanical thermostat located behind the appliance.
FREE INITIAL VISIT
After completion of all installation work, the BWT Service Department is at your disposal for a free initial inspection. During the
inspection, the user is shown how to operate the unit.
8 I N S T A L L A T I O N A N D U S E - A Q A D R I N K O F F I C E

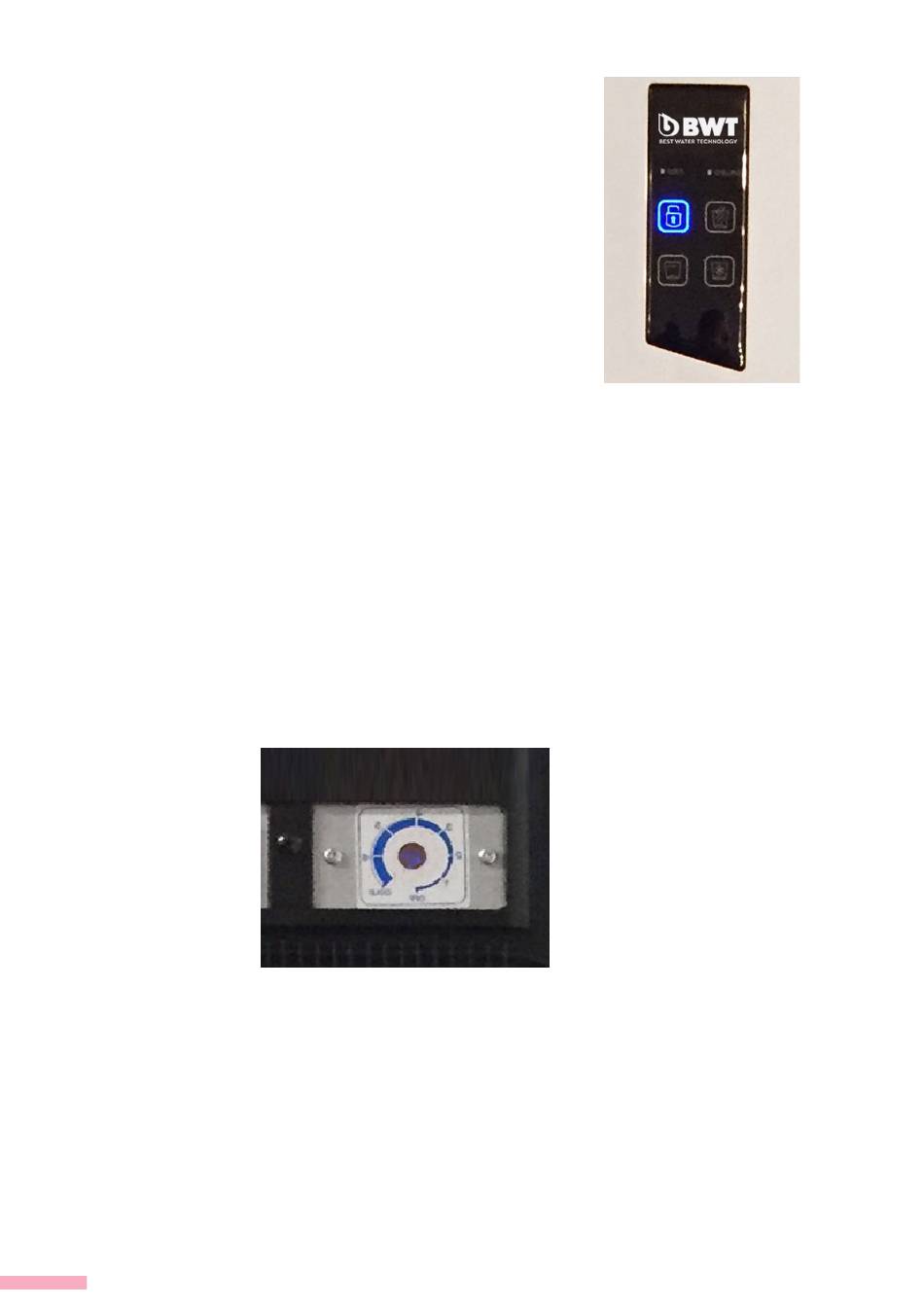

Keyboard detail photo
Photo detail rear thermostat
