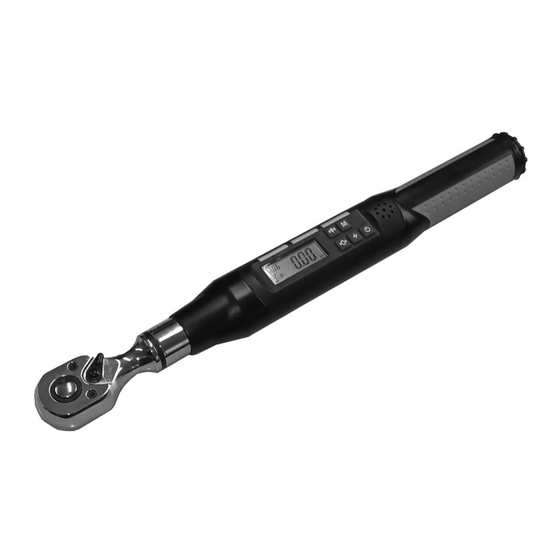

- Page 1 1/4” DRIVE DIGITAL TORQUE WRENCH MODEL NO: PRO235B PART NO: 1700821 USER INSTRUCTIONS ORIGINAL INSTRUCTIONS GC06/24...
-
Page 2: Lifetime Guarantee
INTRODUCTION Thank you for purchasing this CLARKE Torque Wrench. This CLARKE product has been designed to give long and trouble free service. If however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local CLARKE dealer. -
Page 3: Specifications
• Auto Power-Off • Peak Value Hold/Track selection • Target Torque Value pre-set • Low Battery indication • Moulded Storage Case SPECIFICATIONS Model PRO235B Drive Shank Size 1/4” Torque Measuring Range 3-30 Nm Selectable Unit of Measurement Nm, Lbf-in, Lb-ft & kgf.m... -
Page 4: The Control Panel
THE CONTROL PANEL THE DISPLAY A Target torque indicator B The value of torque displayed C Selectable units of measurement D Minus symbol for counter clockwise rotation E Peak/track mode F Battery Status indicator G Memory storage numbers PUSHBUTTON FUNCTIONS 1. -
Page 5: Auto Power Off
• The buzzer will sound and the LCD panel will display all characters. After 2 seconds the display will show 0.00. ‘TRACK’ • The wrench will be in mode, i.e., it will measure and display the actual torque detected. 3. To manually turn the wrench off, press and release the button. -
Page 6: Selecting The Unit Of Measurement
SETTING UP THE WRENCH SETTING PEAK AND TRACK MODE 1. Press to turn the wrench on. 2. Enter the mode selection by pressing the button. 3. Press the button to select (track) mode or for peak mode. 4. Press the button to confirm the selection. - Page 7 SELECTING THE TORQUE SETTING The wrench has 5 sets of memory storage for pre-setting the target torque. 1. Press the button to turn the wrench on. 2. Press the button to select the memory storage number between M1~M5. 3. Once the memory number is chosen, access the Target Torque program by pressing and holding the button for 5~10 seconds.
-
Page 8: Operation
OPERATION 1. Place the square drive on to the socket or extension bar, perpendicular to the nut/ bolt to be tightened. Smoothly tighten your fastening, applying even pressure throughout the operation. 2. ALWAYS use the correct size socket for the fastening and NEVER use sockets that are damaged. -
Page 9: Storage And Cleaning
Release the buttons until the screen appears showing the indicator “----” to reset the wrench. The factory settings will be restored. If further inaccuracy is suspected contact your local CLARKE dealer. DO NOT attempt to dismantle the wrench. BATTERY USE AND CARE The batteries must be replaced if, when switching on, there is no reading on the display or the ‘Battery Condition’... - Page 10 DECLARATION OF CONFORMITY - UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 11: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY- CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
