Summary of Contents for Clarke CHT879

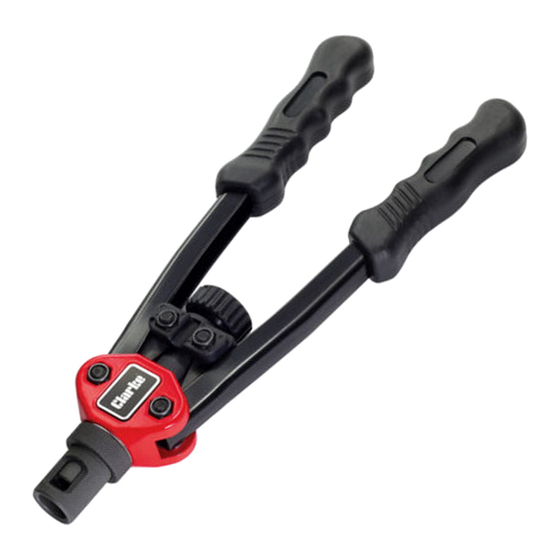

- Page 1 LONG/SHORT ARM THREADED NUT RIVETERS MODEL NO: CHT879 & CHT880 USER INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0918 ISS 1...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Riveter. Suitable for rivet nuts in aluminium, steel and stainless steel. The short arm version (CHT879) is ideal for access in restricted spaces while the long arm version (CHT880) has an adjustable stroke scale for improved accuracy.
- Page 3 FITTING THE MANDREL 1. Remove the sheath, locking ring and washer. 2. Slide the spring-loaded sleeve down to expose the hex shank 3. Screw your chosen your chosen mandrel into the hex shank as far as possible. 4. Release the sleeve. •...
- Page 4 2. Screw a rivet onto the mandrel until it is level with the mandrel tip 3. Turn the sheath anti- clockwise until the mandrel nut touches the rivet. 4. Screw down the locking ring so that it touches the body of the rivet gun. OPERATION 1.
