Summary of Contents for Clarke PSW1

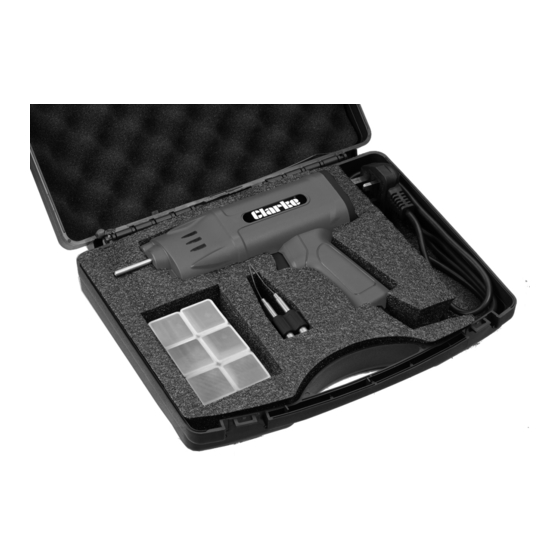

- Page 1 PLASTIC STAPLER/WELDER KIT MODEL NO: PSW1 PART NO: 3400771 USER INSTRUCTIONS GC06/23 ORIGINAL INSTRUCTIONS...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: Specifications
SPECIFICATIONS Item Specification Dimensions (L x W x H) 220 x 55 x 235 mm - product 330 x 275 x 80mm - carry case Weight 620 g (stapler only) Operating voltage & frequency 230V ~ 50 Hz Heater rated input wattage Heater rated input current <1A Plug fuse rating... -
Page 4: General Safety Warnings
GENERAL SAFETY WARNINGS WARNING: READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR INJURY. WORK AREA SAFETY 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents. 2. -
Page 5: Personal Safety
3. The staples used with this device are made of special materials, not ordinary steel wire. When the staples are used up, please contact your CLARKE dealer, otherwise any malfunction caused by the use of staples of other materials will not be covered by the warranty. -
Page 6: Safety Symbols
7. Cleaning and user maintenance shall not be made by children without supervision. 8. Please release the trigger immediately to stop heating once the heated staple turns red in the operation. SAFETY SYMBOLS Read instruction manual before use Hot Surfaces Wear protective gloves Wear eye protection Keep dry... -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing, make sure that a plug of identical specification is used. -
Page 8: Controls And Display
CONTROLS & DISPLAY Power supply indicator Yellow light on/single blue LOW heating light on Normal operation Green light comes on Overheating protection Red light flashes quickly (0.2sec) and the buzzer sounds. The device will recover automatically. (In general, it will recover within 5 minutes) Overload/short circuit Red light flashes quickly (0.5sec) and the... -
Page 9: Operation
OPERATION 1. Push fit the welding tip onto the heating elements. 2. Plug into the power supply and press the POWER button. Ensure the yellow PWR and a single blue LED status indicator are on. 3. According to the shape of the damage to be repaired, select the corresponding staple from the selection on page 12 and insert... - Page 10 10. Give the device a very slight twist to help the staple become completely embedded under plastic to prevent any chance of it pulling out. 11. Use a straight staple when repairing along the edge of the workpiece. 12. Cut off the exposed part of the staple or rock it back and forth with your hands until it breaks off.
-
Page 11: Care And Maintenance
4. In order to ensure good contact with staples, keep the small holes of copper heating rods clean. 5. Refer to your CLARKE dealer if any repairs are required. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 12 Part No;-1800213 8 mm Wave staples for repairing flat plastic surfaces that need extra reinforcement Part No;-1800214 Welding Tip Please re-order from your CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 13: Component Parts
COMPONENT PARTS Description No Description Control Panel Housing Printed Circuit Board Trigger Power Cable Copper Rod Consumable items listed on page 12 are available from your Clarke dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 14 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 15 DECLARATIONS OF CONFORMITY-CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
