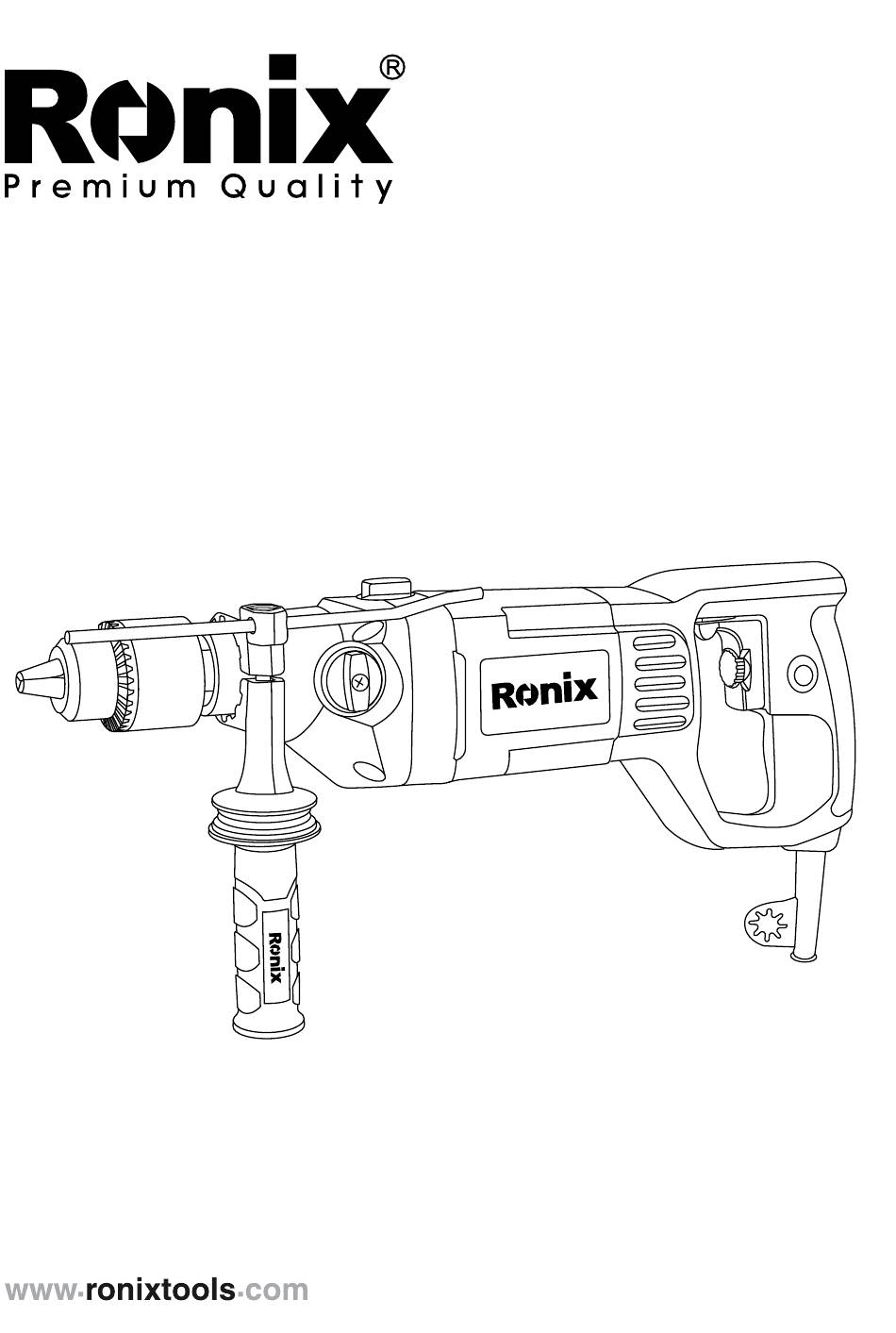

- Page 1 IMPACT DRILL TYPE D 16mm 2430...
-
Page 3: Specification
SPECIFICATION 2430 Model Max Power 1100W Voltage 220-240V Frequency 50-60Hz Chuck Type Keyed Chuck Chuck Size 16mm No Load Speed 0-1400/0-2800 RPM Impact Rate 0-45000 BPM Drilling Capacity 40 mm/ 16mm/ 26mm (Wood, Metal, Masonry) Body Material PA6+GF30 Dimensions 410mm×85mm×200mm Net Weight 3.75Kg... -
Page 4: Part List
PART LIST Impact / Drilling Function Selector Depth gauge Forward / Reverse Switch Keyed Chuck Lock-on Button Switch Trigger Speed Adjuster Knob Side Handle GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury, save all WARNING and instructions for future reference. -
Page 5: Work Area Safety
WORK AREA SAFETY - Keep work area clean and well lit. Cluttered or dark areas invite accidents. - Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. -
Page 6: Personal Safety
so on because touching metal surfaces will be interfered with the electromagnetic wave, thus causing potential injury or accidents. PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs or alcohol. -
Page 7: Residual Risks
Any power tool that cannot be controlled with the switch is dangerous and must be repaired. - Disconnect the plug from the power source from the power tool before making any adjustments, changing accessories or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. - Page 8 SERVICE Have your power tool serviced by a qualified repair-person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this operator's manual. SAFETY GUIDELINES DURING POWER TOOL OPERATION - The workpiece shall be fastened.
- Page 9 return stroke. The accessory installed on the power tool are likely to be clamped, for example: hypercharge of power tool or skewing of accessory installed on the power tool during work. - If hidden electric wires or power lines of the power tool itself might be cut off during work, you must hold the insulated handle to operate the power tool.
- Page 10 INSTALLATION AND REGULATION OF POWER TOOL ELEMENTS Before carrying out any works on the power tool it must be disconnected from the mains. Do not draw up the fastening elements too tight to avoid damaging the thread. Mounting / dismounting / settingup of some elements is the same for all power tool models.
- Page 11 Fig 3 Mounting / replacement of accessories With long-term use the drill bit may become very warm; use gloves to remove it. LOOSING OR TIGHTEN CHUCK (SEE FIG 4) - Release the cams grip with drill chuck key, then rotate the gear of chuck counter-clockwise with your hand (fig 4.1) until the cams move apart at the distance allowing an accessory to be mounted/ replaced (fig 4.2).
- Page 12 MOUNTING / DISMOUNTING OF THE DRILL CHUCK (SEE FIG 5,6) - To mount the gear rim chuck, carry out the operations in consecutive stages as it is shown in figure 5. Fig 5 - To dismount the gear rim chuck, carry out the operations in consecutive stages as it is shown in figure 6.
-
Page 13: Switching Off
Fig 7 INITIAL OPERATING OF THE POWER TOOL Always use the correct supply voltage: the power supply voltage must match the infor mation quoted on the power tool identification plate. Switching the power tool on/ off Short-term switching on / off To switch on, press and hold on/ off switch, to switch off: release it. - Page 14 components; - impact drilling - impact drilling in brick, concrete, natural stone. - Drilling, screwing, unscrewing: To switch to this operation mode, turn selector to the drilling sign coin cides with the mark on the body. Impact drilling: To switch to this operation mode, turn selector to the Impact drilling sign coincides with the mark on the body.
- Page 15 - Push on / off and lock it in the position with lock-on button. The required speed is dependent on the ma terial and can be determined with practical trials. When operating your power tool at a low speed for a long time, it has to be cooled down for 3 minutes. To do it, set a maximum speed and leave your power tool to run idle.
- Page 16 drilling non-ferrous metals and their alloys). When drilling hard metals, apply more force to the power tool and lower the rotation speed. When drilling large diameter holes in metal, first drill a hole with a smaller diameter and ream it till the necessary diameter (see fig 8). Fig 8 - In order to avoid splitting of the surface at an exit point of a drill bit when drilling holes in wood, follow the instructions shown in figure 9.
- Page 17 adhesive tape to the presumed hole center and drill after that (see fig 11). Start drilling at lower speed increasing it as the hole deepens. Fig 11 CAUTION: drill tiles in the impact-less drilling operation mode only. IMPACT DRILLING - During the impact drilling, the result does not depend on the pressure applied to the power tool this is caused due to the peculiarities in the impact mechanism design.
- Page 18 Fig 12 POWER TOOL MAINTENANCE Before carrying out any works on the power tool it must be disconnected from the mains. CLEANING OF THE POWER TOOL An indispensable condition for a safe long-term exploitation of the power tool is to keep it clean. Regularly flush the power tool with compressed air thought the ventilation slots.
