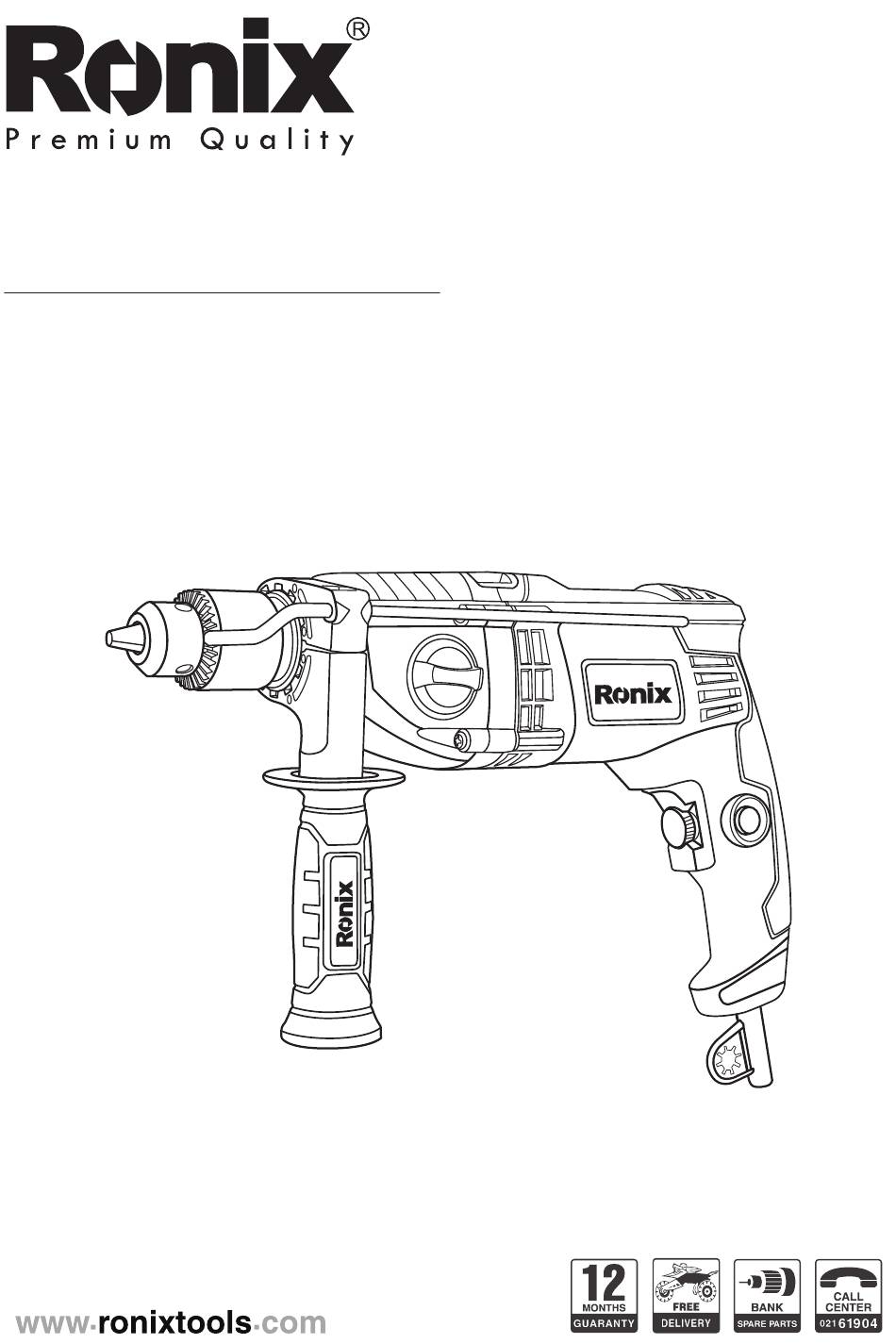

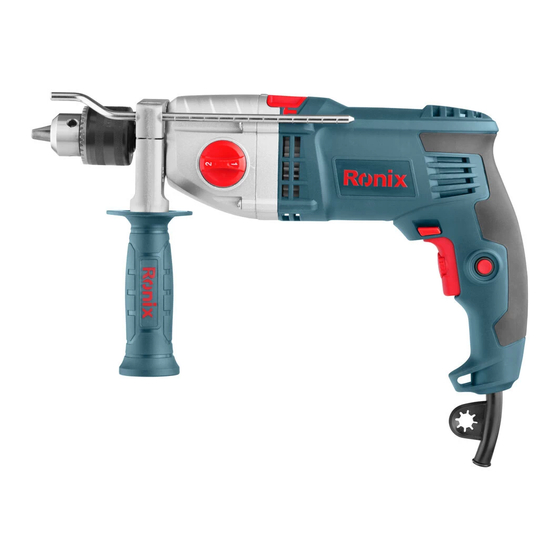

- Page 1 INSTRUCTION MANUAL 2221 IMPACT DRILL 13mm...
-
Page 3: Specification
USER MANUAL SPECIFICATION Voltage 220V Frequency 50Hz Power input 1050W No load speed 0~1200/0~3200 rpm Max Drilling capacity in Wood 40mm Max Drilling capacity in Steel 13mm Max Drilling capacity in Concete 16mm Net. Weight 3 Kg chuck key 1pc / depth guide 1pc / Accessories side handle 1pc PARTS LIST... -
Page 4: General Power Tool Safety Warnings
IMPACT DRILL 13mm NOTE: In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. CAUTION: To reduce the risk of electric shock do not open this device, there are not serviceable parts for customers. -
Page 5: Electric Safety
USER MANUAL create sparks which may ignite the dust or fumes. - Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRIC SAFETY - Power tool plugs must match the outlet. Never modify the plug in any way. -
Page 6: Personal Safety
IMPACT DRILL 13mm PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. Don’t use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. - Page 7 USER MANUAL POWER TOOL USE AND CARE - Don’t force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. - Don’t use the power tool if the switch doesn’t turn it on and off.
-
Page 8: Hammer Drill Safety Warnings
IMPACT DRILL 13mm SERVICE - Have your power tool serviced by qualified repair person using only identical replacement parts. This will ensure that the safety of power tool is maintained. - Follow instruction for lubricating and changing accessories. - Keep handles dry, clean and free from oil and grease. HAMMER DRILL SAFETY WARNINGS - Wear ear protectors when impact drilling. - Page 9 USER MANUAL INSTRUCTIONS FOR USE THIS DRILL HAS THE FOLLOWING FUNCTION The operating switch is used for all work carried out with the drilling machine. With the speed selection via the regulator wheel you have optimum control of the machine. The machine can be set to continuous operation with the locking button.
- Page 10 IMPACT DRILL 13mm The mechanical gear box of the machine can be set on two different positions: 1) Low speed: for drilling bigger holes which needs more force. 2) High speed: for drilling holes with lower diameters. PREPARING THE DRILLING MACHINE WARNING! When performing the following work, always ensure that the machine is not connected to the mains power supply.
- Page 11 USER MANUAL ADJUSTING THE BIT STOP The second handle has a retainer for the bit stop. Insert a drill. Now release the handle. Push the bit stop forwards until its end is in line with the end of the drill. Now push the bit stop back until the distance between the end of the bit stop and the end of the drill corresponds to the depth to which you would like to drill.
-
Page 12: Drilling Tips
IMPACT DRILL 13mm WORKING WITH THE DRILLING MACHINE Ensure that the mains power supply voltage is the same as the operating voltage of your machine. For details, please see the type plate. Insert the correct drill for the type of job to be performed. If necessary, adjust the bit stop. - Page 13 USER MANUAL - Never change the direction of motion when the machine is switched on. CARE OF THE TOOLS OVERLOAD Never use excessive force when drilling. Too much pressure reduces the speed of the machine, and the required power is greatly reduced.
