Summary of Contents for Ronix 2513T

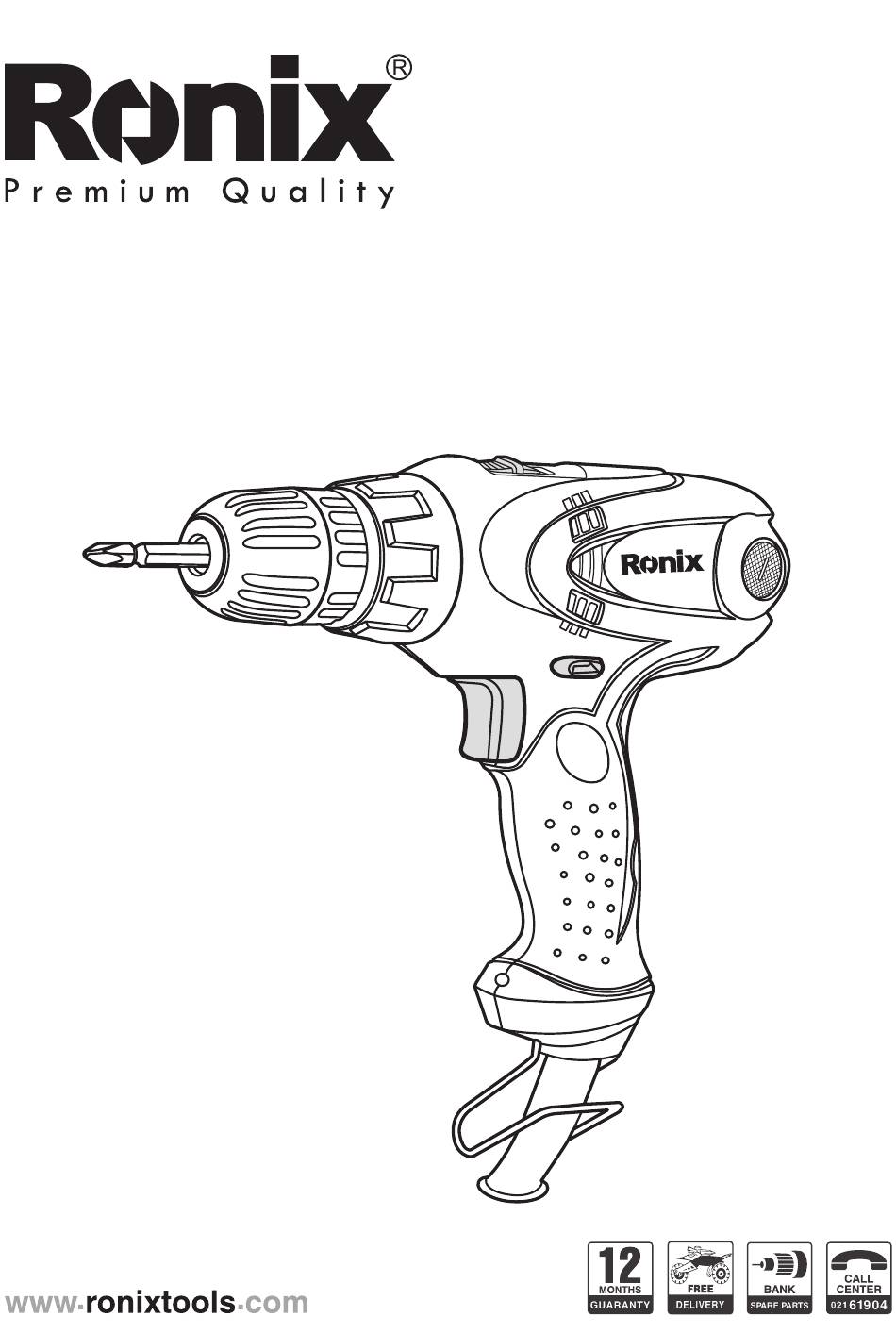

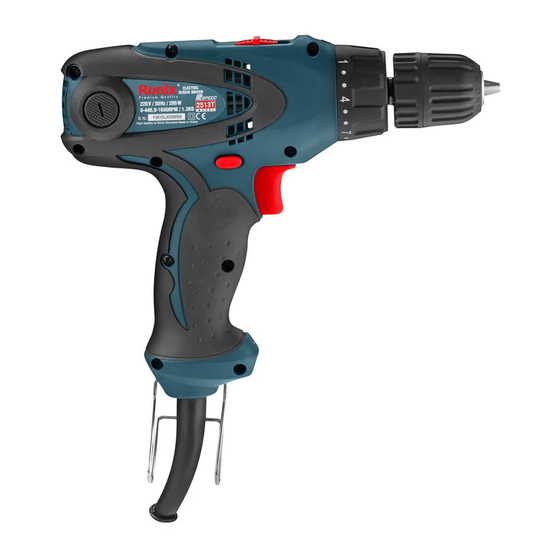

- Page 1 ELECTRIC SCREW DRIVER DRILL 2513T...
-
Page 2: Specifications
SPECIFICATIONS Model 2513T Rated Voltage 220V Rated frequency 50HZ Input power 280W No load speed 0-440 , 0-1650RPM Chuck capacity 3/8” (1-10mm) Wood 26mm Steel 10mm Torque settings 18+1 Safety class Net weight 1.3KG WARNING! To reduse the risk of injury user must read instruction manual. -
Page 3: Electrical Safety
- keep children and bystanders away while operating a power tool. distractions can cause you to lose control. ELECTRICAL SAFETY - power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. - Page 4 carrying power tools with your finger on the swich or energizing power tools that have the switch on invites accidents. - Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 5 - Use the power tools accessories and tool bits etc. in accordance with these instructions and in the manner intended for the particular type of power tools taking into account the working conditions and the work to be performed. use of the power tools for operation different from intemded could result in a hazardous situation.
-
Page 6: Changing The Tool
vibraton or other defects are detectedhave it repaired. Wear hearing protection while operating the power tools. The declared vibration total value has been measured in accordance with a standard test method and may be used for companing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure. -
Page 7: Removing The Drill Chuck
REMOVING THE SECURING SCREW The keyless chuck is secured with a securing screw against unintentional loosening from the drill spindle. completely open the keylees chuck and unscrew the securing screw in rotation direction. Please note that the securing screw has a left-hand thread. REMOVING THE DRILL CHUCK Clamp the short end of a hex key into the keyless chuck. -
Page 8: Starting Operation
OPERATING Never cover the air vents since they must always be open for proper motor cooling. STARTING OPERATION SWITCH ON AND OFF This tool is started and stopped by pressing and releasing the trigger on/off switch. The speed can be adjusted in the high gear or in the law gear, by controlling the trigger-pressing force. -
Page 9: Adjusting The Speed
ADJUSTING THE SPEED The speed of the switched on power tool can be variably adjusted on how far the on/off switch 5 is pressed. Fully automatic spindle locking (auto-lock). When the on/off switch 5 is not pressed, the drill spindle and thus the too holder are locked. - Page 10 eliminate all residual risk factors. -The following hazards may arise in connection with the power tool’s construction and design: 1) Damage to lungs if an effective dust mask is not worn. 2) Damage to health resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
- Page 11 managed and properly maintained Waring this machine produces an electromagnetic filed during operation.this filed may under some circumstances interfere with active or passive medical implants.to reduce the risk of serious or fatal injury,we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.
