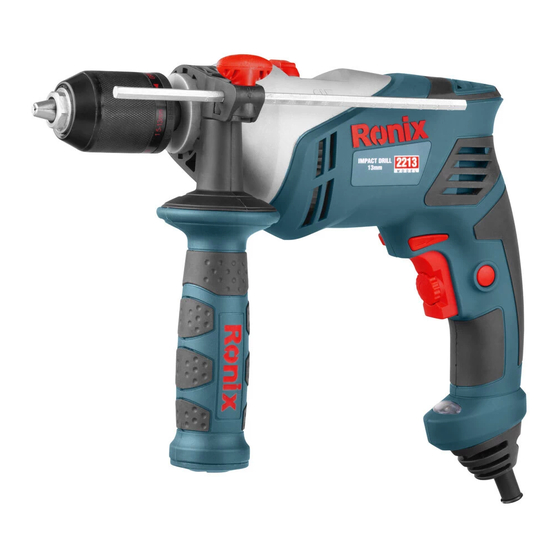

IMPACT DRILL 13MM
2213

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2213 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 2213

Summary of Contents for Ronix 2213

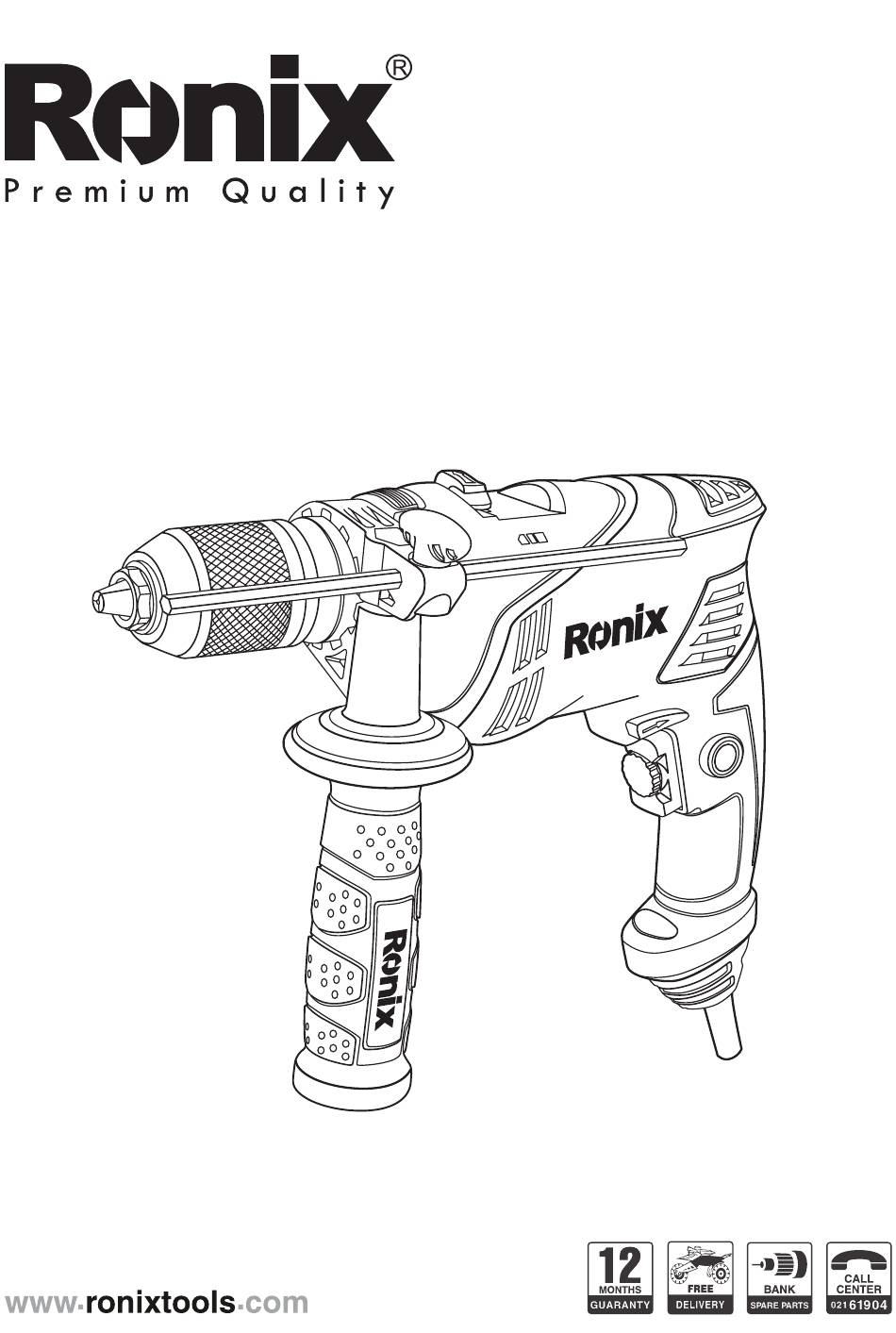

  • Page 1 IMPACT DRILL 13MM 2213...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS Model 2213 Voltage 220v Frequency 50Hz Power 650W Drilling Capacity 1.5-13mm Steel 13mm Concrete 13mm Wood 25mm No Load Speed 0-3000rpm Net Weight 2.4Kg PART LIST Hammer / Rotary Selector Direction Depth Switch Stop Guide Direction Switch Speed...

  • Page 3: Work Area

    1) Speed selection: With the speed selection via the regulator wheel you have optimum control of the machine. 2) Lock button: The machine can be set to continuous operation with locking button. 3) Adjustable Hand grip: The second handle gives you an additional way the holding the machine firmly.

  • Page 4: Electrical Safety

    tool. Distractions can cause you to lose control. ELECTRICAL SAFETY - Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electrical shock. - Avoid body contact with earthed or grounded surface such as pipes, radiators, ranges and refrigerators.
  • Page 5 Use of the power tool for operations different from intended could result in a hazardous situation. SERVICE - Have your power tool Serviced by a qualified repair person at RONIX SERVICE using only identical replacement parts. This will ensure that IMPACT DRILL...

  • Page 6: Additional Safety Instructions

    The use of accessories and at- tachments other than those specified in the operating instructions can cause injuries! - Always have your tool be repaired by certified technicians at RONIX SERVICE center! - This tool meets the relevant safety requirements!
  • Page 7 ADJUSTING DEPTH STOP GUIDE The second handle has a retainer for the Stop Guide. Insert a drill. Now release the handle. Push the Stop Guide forwards until its end is in line with the end of the drill. Now push the bit stop back until the distance between the end of the bit and the end of the drill corresponds to the depth to which you would like to drill.
  • Page 8 WORKING WITH THE DRILLING MACHINE Ensure that the mains power supply voltage is the same as the operating voltage of your machine. For details, please see the type plate. Insert the correct drill for the type of job to be performed. If necessary, adjust the bit stop.

  • Page 9: Drilling Tips

    operating switch. When the operating switch is released, the machine stop. If you would like to use continuous operation press the locking button while the operating switch is pressed. In order to switch off the machine during continuous operation, press the operating switch again the operating switch again and then let it go.
  • Page 10 When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician at RONIX SERVICE Center. USER MANUAL...
