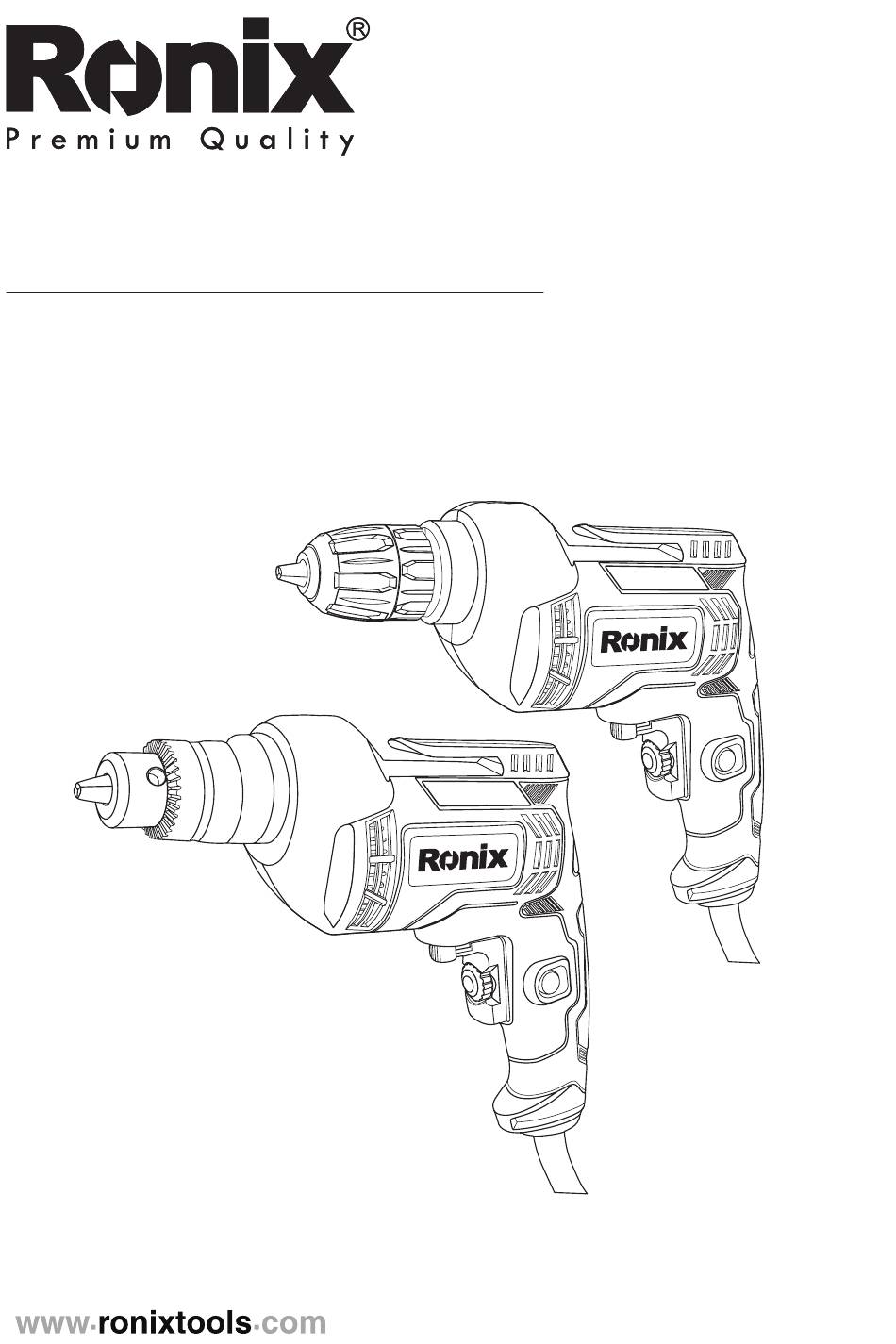

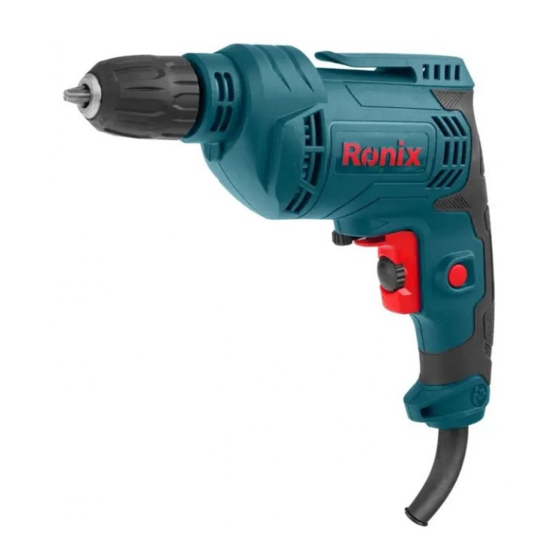

- Page 1 INSTRUCTION MANUAL 2112-2112A ELECTRIC DRILL...
-
Page 3: Technical Specifications
USER MANUAL TECHNICAL SPECIFICATIONS Model No. 2112-2112A Rated power input 450W Rated voltage 220-240V~50/60Hz No-load speed 0-4300/min Chuck capacity 0.6-6.5mm Max. drilling in steel 10mm Max. drilling in wood 20mm COMPONENTS, SPECIFICATIONS AND ACCESSORIES COMPONENTS LIST 1) Chuck 2) Switch lock button... -
Page 4: Safety Instructions
ELECTRIC DRILL SAFETY INSTRUCTIONS WARNING! Read all instructions Failure to follow all in structions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool. -
Page 5: Personal Safety
USER MANUAL edges or moving parts.Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors,use an extension cord suitable for outdoor use.Use of a cord suitable for outdoor use reduces the risk of electric shock. PERSONAL SAFETY a) Stay alert, watch what you are doing and use common sense when operating a power tool. - Page 6 ELECTRIC DRILL and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. POWER TOOL USE AND CARE a) Do not force the power tool. Use the correct power tool for your application.The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 7 USER MANUAL different from intended could result in a hazardous situation. SERVICE a) Have your power tool serviced by a qualified repair person using only identical replacement parts.This will ensure that the safety of the power tool is maintained. ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR DRILL 1)Always wear ear protectors with electric drill.Exposure to noise can cause hearing loss.
-
Page 8: Important Note
ELECTRIC DRILL IMPORTANT NOTE: Ensure your mains supply voltage is the same as your tool rating plate voltage.Remove the mains plug from socket beforecarrying out any adjustment or servicing. SYMBOLS Read the manual Warning Wear eye protection Wear ear protection WEEE marking ACCESSORIES WARNING! - Page 9 USER MANUAL Dia 1 Turn chuckkey clockwiseto tighten OPERATING THE ON/OFF SWITCH (SEE DIA2) Press the on/off switch in for operation, releaseswitch to stop.If you wish to use the drill continuously the switch lock button can be pushed in after the on/off switch has been depressed. To release the lock button simply depress on/off switch fully, the button will automatically release.
- Page 10 ELECTRIC DRILL VARIABLE SPEED CONTROL SELECTOR (SEE DIA3) The maximum speed can be altered by turning the variable speed control. Turn clockwise to increase and anti-clockwise to decrease speed.The speed of the drill varies with the amount of pressure applied to the on/off switch, i.e. more pressure for higher speed.
-
Page 11: Maintenance And Troubleshooting
USER MANUAL MAINTENANCE AND TROUBLESHOOTING WORKING HINTS FOR YOUR DRILL 1) Drilling steel HSS drill bits should always be used for drilling steel with a lower speed. 2) Screw driving Use a low speed to drive in or remove screws. 3) Pilot holes When drilling a large hole in tough material (i.e. -
Page 12: Spare Part List
ELECTRIC DRILL replace drill bit if worn. Check that the drill is set to forward rotation for normal use. 3) If a fault can not be rectified return the drill to qualified repair personel for service. SPARE PART LIST... - Page 13 USER MANUAL Exploding view screw chuck output spindle bearing 6200 circlip for shaft gear bearing bearing armature carbon brush brush holder brush holder cap stator left housing switch cord sleeve leading wire leading wire screw ST4x16 right housing cord Chuck Key...
