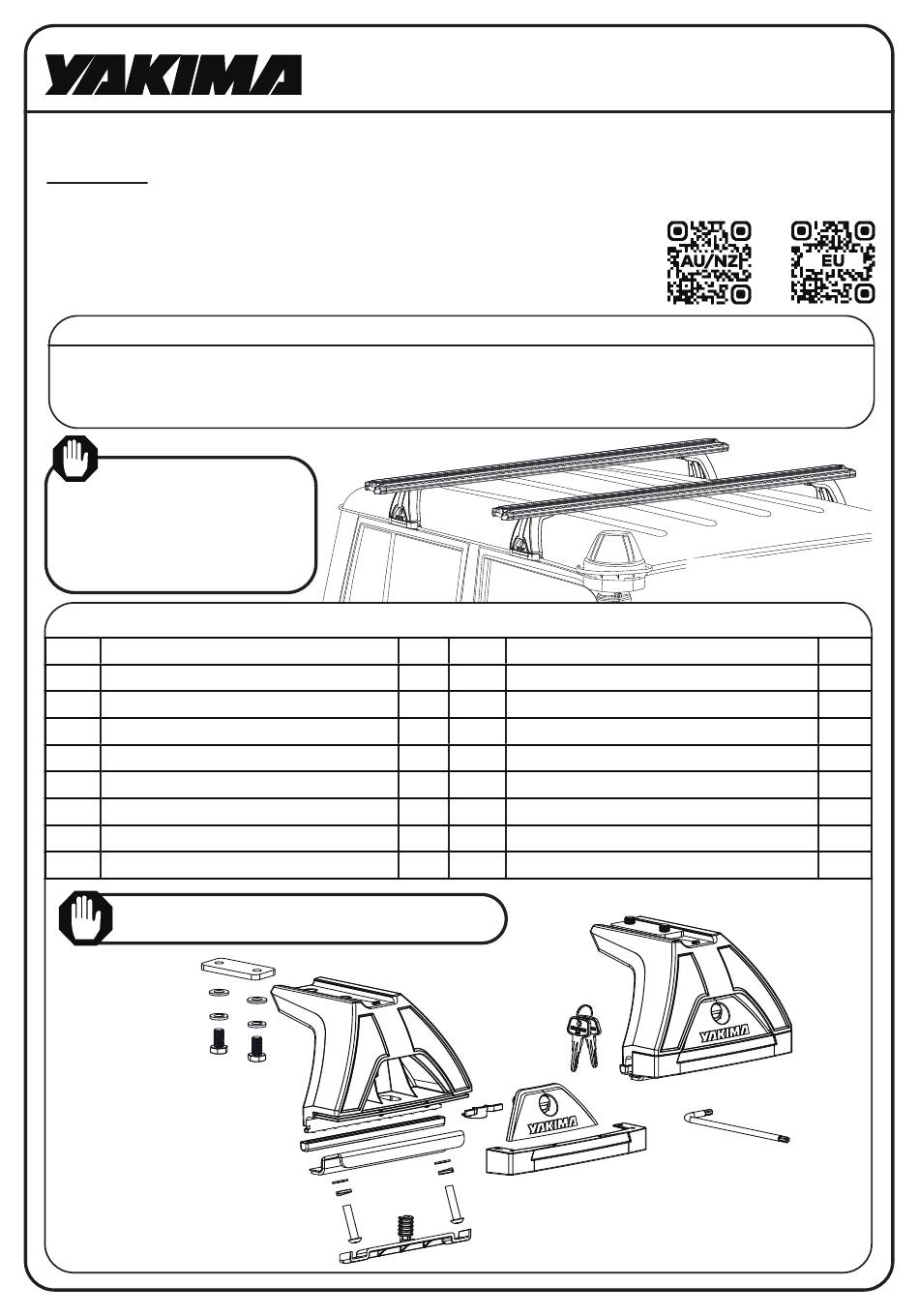

Yakima LockNLoad Gutter Mount Kit Manual

MAXIMUM PRODUCT LOAD RATING: 2 Bars: 100 kg
IMPORTANT:
• LOAD = WEIGHT OF PLATFORM or BARS + MOUNTING SYSTEM + ACCESSORIES + CARGO
• PLEASE REFER TO VEHICLE MANUFACTURER SPECIFICATIONS FOR MAX ROOF
LOAD CAPACITY OF VEHICLE. THE LOWEST LOAD RATING APPLIES.
• OFFROAD RATING: SCAN QR CODE FOR LOCKNLOAD LOAD RATING GUIDE.
REDUCTIONS MAY APPLY.
• Please read instructions carefully before installation.
• Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing, incorrect or damaged.
• Clean your roof thoroughly prior to fitting the LockNLoad Gutter Mount Heavy Duty Roof Rack System.
• Place these instructions in the vehicle's glove box after installation is complete.
TOOLS REQUIRED:
• Tape Measure
• Scissors
• Rubber Mallet (Optional)
• 13 mm Socket Wrench
• 4 mm Hex Key
ITEM COMPONENT
1. Rubber Skirt
2. Nut Plate
3. Leg Cover
4. Washer M8
5. Spring Washer M8
6. Hex Bolt M8
7. Gutter Mount Leg 110/150/210 mm
8. Yakima Key Set
BAR COMPONENTS SOLD SEPARATELY
2
4
5
6
6100001659_8000350_8000351_8000352_Rev6.0
LockNLoad™ Gutter Mount Kit
®
FIRST TIME INSTALLATION
KIT CONTENTS
QTY ITEM COMPONENT
x2
x2
x2
x4
x4
x4
x2
x1
7
16
15
14
13
12
9
GUTTER MOUNT HEAVY DUTY ROOF RACK
3 Bars: 150 kg
9. Locking Clip Base
10. Locking Clip
11. Tamper Proof Torx Key
12. Tamper Proof Torx Button Head Screw x4
13. Spring Washer M6
14. Washer M6
15. Mount Plate
16. Rubber Foot Grip
8
3
1
10
ATTACHMENT SYSTEM
4 Bars: 150 kg
NOTE - 2x Gutter Mount
150 mm Leg Packs shown
11
NOTE - 110 mm Leg shown
QTY
x2
x2
x1
x4
x4
x2
x2
1/10
