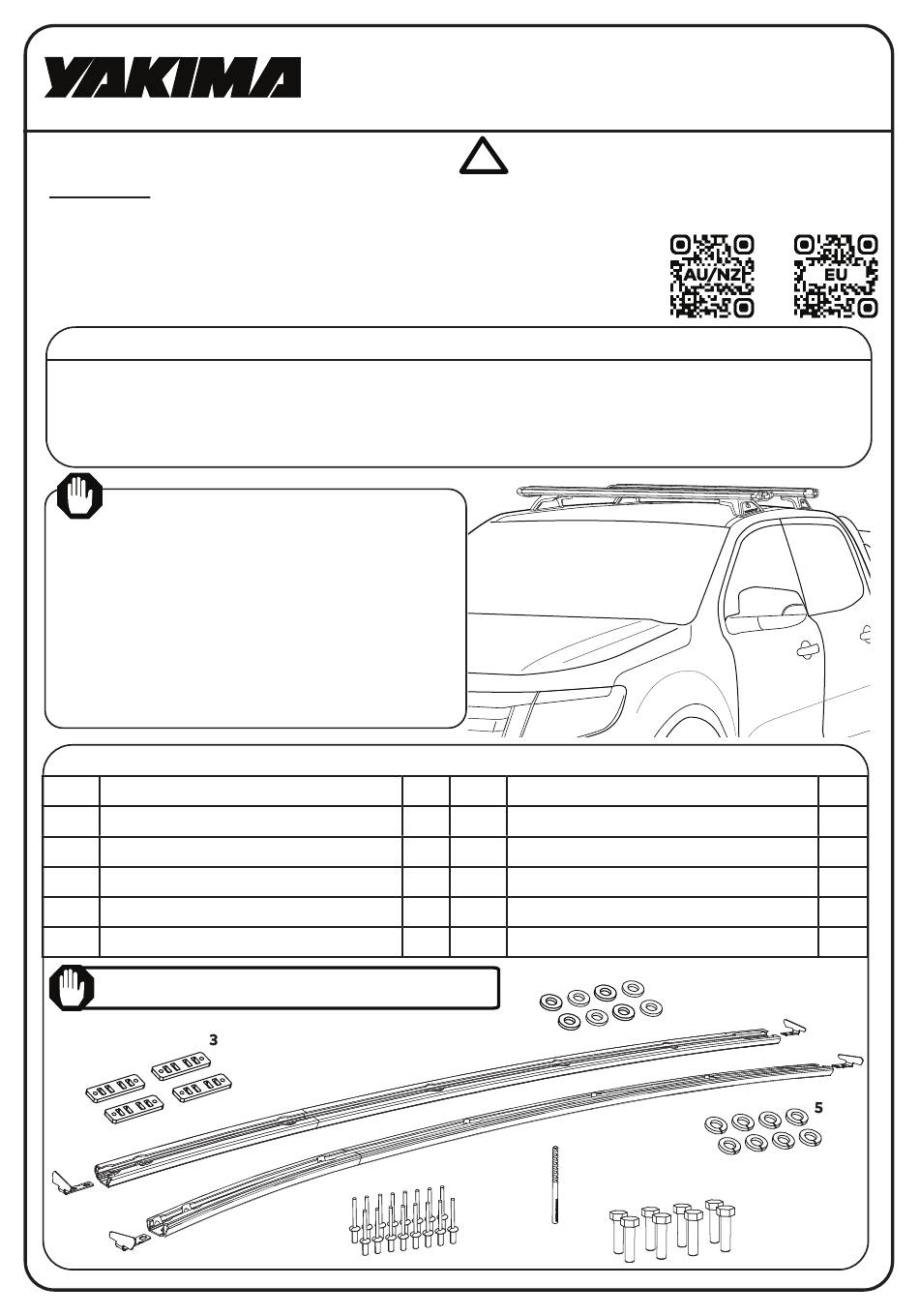

Yakima LockNLoad Track Mounting Kit Manual
  1. Manuals
  2. Brands
  3. Yakima Manuals
  4. Automobile Accessories
  5. LockNLoad Track Mounting Kit
  6. Manual
Yakima LockNLoad Track Mounting Kit Manual

Yakima LockNLoad Track Mounting Kit Manual

For lnl track ford ranger gen3&gen4 / mazda bt-50 gen2, double cab 2011+
Hide thumbs

Advertisement

Quick Links

Download this manual
MAXIMUM PRODUCT LOAD RATING: 100 kg
IMPORTANT:
•
LOAD = WEIGHT OF PLATFORM or BARS + MOUNTING SYSTEM + ACCESSORIES + CARGO
•
PLEASE REFER TO VEHICLE MANUFACTURER SPECIFICATIONS FOR MAX ROOF
LOAD CAPACITY OF VEHICLE. THE LOWEST LOAD RATING APPLIES.
•
OFFROAD RATING: SCAN QR CODE FOR LOCKNLOAD LOAD RATING GUIDE.
REDUCTIONS MAY APPLY.
•
Please read instructions carefully before installation.
•
Check the contents of kit. Each spine has the last four digits of the kit's part number lasered in.
Contact your YAKIMA dealer if any parts appear missing, incorrect or damaged.
•
Clean your roof thoroughly prior to fitting the LockNLoad RuggedLine.
•
Place these instructions in the vehicle's glove box after installation is complete.
TOOLS REQUIRED:
•
Pencil
• Tape Measure
•
Masking Tape
•
Rivet Gun
•
Drill Bit Stop
•
Scissors
•
Knife
•
Mastic Silicone Sealant
•
#2 Phillips Head Screwdriver
•
Zinc Rich Cold Galvanising Coating
ITEM COMPONENT
1.
Track Ranger/BT-50 Right Hand Side
2.
Track Ranger/BT-50 Left Hand Side
3.
Track Nut Plate
4.
M6 Washer
5.
M6 Spring Washer
LEG AND BAR COMPONENTS SOLD SEPARATELY
10
9
28-13-010_8000316_Rev4
®
LNL Track Ford Ranger GEN3&GEN4 / Mazda BT-50 GEN2
FIRST TIME INSTALLATION
• Vacuum Cleaner
•
10 mm Open Ended Spanner
•
13 mm Socket or Spanner
• Thick Cardboard Strips
•
Power or Cordless Drill
•
Rubber Mallet (Optional)
KIT CONTENTS
1
2
LockNLoad Track Mounting Kit
TRACK MOUNT HEAVY DUTY ROOF RACK SYSTEM
!
QTY ITEM COMPONENT
x1
6.
Rivet
x1
7.
4.9 mm Drill Bit
x4
8.
M6 Hex Screw
x8
9.
Track End Cap Front Left & Rear Right x2
x8
10.
Track End Cap Rear Left & Front Right x2
7
6
Double Cab 2011+
QTY
x16
x1
x8
4
9
8
8000316
®
10
1/14
