Yakima LOCKN’LOAD Manual

Yakima LOCKN’LOAD Manual

Track mounting kit, land rover discovery 3 & 4 heavy duty roof rack track system
Hide thumbs Also See for LOCKN’LOAD:

Advertisement

Quick Links

Download this manual
MAX VEHICLE ROOF LOAD RATING*:
FRONT: 35KG
REAR: 75KG
TOTAL LOAD EQUALS WEIGHT OF ROOF RACKS + ACCESSORIES + CARGO
•
Please read instructions carefully before installation.
•
Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
•
Clean your roof thoroughly prior to fitting the LOCKN'LOAD Track Heavy Duty Roof Rack System.
•
Place these instructions in the vehicle's glove box after installation is complete.
TOOLS REQUIRED:
• Marking Pen/Pencil
• Power or Cordless Drill
• #2 Phillips Head Screwdriver
• Vacuum Cleaner
• Mastic Silicone Sealant
• Fine Tooth Hacksaw
• Rivet Gun
• Rubber Mallet (Optional)
• Drill Stop
• Tape Measure
• Zinc Rich Cold Galvanising Coating
ITEM COMPONENT
1.
Track Front Land Rover Disco 3&4
2.
Track Nut Plate
3.
M6 Washer
4.
M6 Spring Washer
5.
M6 Hex Screw
LEG AND BAR COMPONENTS SOLD SEPARATELY
6
28-13-021-Rev1
LOCKN'LOAD
®
FIRST TIME INSTALLATION
• Flat Blade Screwdriver
• 10mm Open Ended Spanner
• 13mm Socket or Spanner
• 4mm Allen Key
• Torque Wrench (Optional)
• Double Sided Tape
• Centre Punch
• Hammer
• Thread Locking Compound

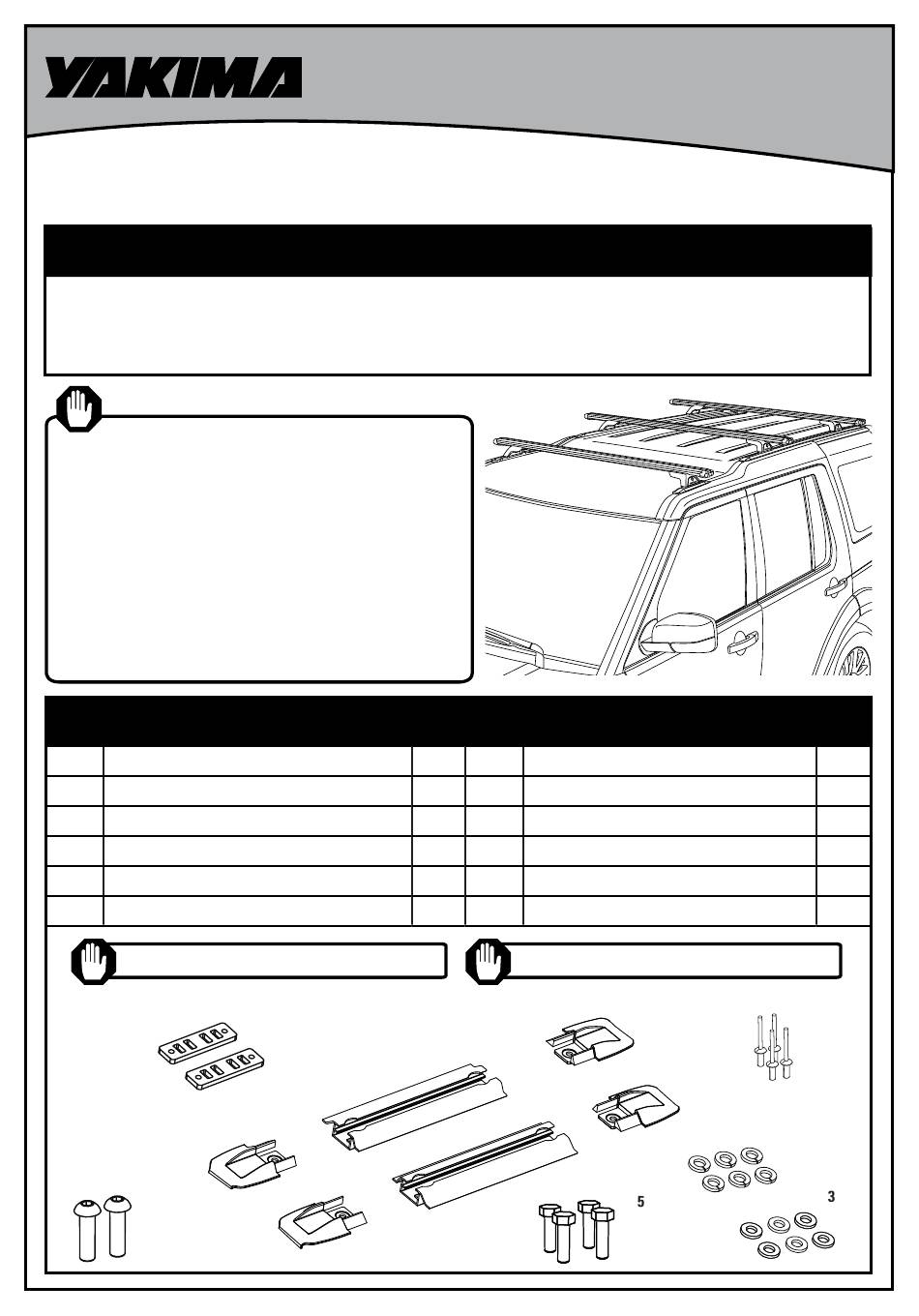

KIT CONTENTS - FRONT TRACKS (see pages 2-5)
QTY
x2
x2
x6
x6
x4
2
9
1
8
TM
TRACK MOUNTING KIT
LAND ROVER DISCOVERY 3 & 4
HEAVY DUTY ROOF RACK TRACK SYSTEM
ITEM COMPONENT
6.
M6 Button Head Capscrew
7.
Rivet 13.5mm
8.
End Cap Front Left & Rear Right
9.
End Cap Front Right & Rear Left
10.
FRONT & REAR TRACK KITS SOLD SEPARATELY
8
*Manufacturer's Rated Maximum
QTY
x2
x4
x2
x2
7
9
4
1/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the LOCKN’LOAD and is the answer not in the manual?

Questions and answers

Related Manuals for Yakima LOCKN’LOAD

Summary of Contents for Yakima LOCKN’LOAD

  • Page 1 • Please read instructions carefully before installation. • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. • Clean your roof thoroughly prior to fitting the LOCKN’LOAD Track Heavy Duty Roof Rack System.

  • Page 2: Before Beginning Installation

    KIT CONTENTS - REAR TRACKS (see pages 6-11) ITEM COMPONENT ITEM COMPONENT Track Rear Land Rover Disco 3&4 RHS x1 Rivet 22mm Track Rear Land Rover Disco 3&4 LHS x1 End Cap Front Left & Rear Right Track Nut Plate End Cap Front Right &...
  • Page 3 TRACK INSTALLATION - FRONT REMOVE ROOF CHANNEL TRIM Lift rubber roof trim up and outwards at rear of vehicle using fingers. Gently twist trim to unhook plastic clips. Do not use excessive force as the clips could break. Store roof trim aside for use in Step 3.
  • Page 4 REFIT ROOF TRIM Return the two pieces of trim cut in the previous step back into roof channel as shown. Ensure trim is hooked back onto the roof channel via the plastic clips. CONNECT END CAPS RIVET END CAPS TO TRACK Insert End Caps into Track ends.

  • Page 5: Track Installation

    Torque Wrench. FRONT TRACK INSTALLATION COMPLETE Check both Tracks are secured to the vehicle as per these installation instructions. For assistance contact your local Yakima dealer. PLEASE SEE NEXT PAGE FOR REAR TRACK INSTALLATION PLEASE SEE PAGES 11-15 FOR BAR INSTALLATION...
  • Page 6 TRACK INSTALLATION - REAR BEFORE BEGINNING INSTALLATION Clean roof thoroughly and allow to dry before beginning installation. It is recommended to install one Track at a time. MEASURE REAR ROOF Vehicle Front 1530mm CHANNEL TRIM 100mm Using a Tape Measure, measure 1530mm forward from the edge of the rear roof channel trim as shown.
  • Page 7 REMOVE PLUGS Using a Flat Blade Screwdriver (wrap tape around end of Screwdriver to prevent paint scratching if you should slip), lever out the 3 plastic plugs in each side of roof channel to expose nutserts. Do not remove the nutserts. PLACE TRACK TRACK ORIENTATION Taking note of the Track orientation...
  • Page 8 REVEAL REAR RIVET FIXING POINT The rear rivet fixing point is covered with sealant. Use a sharp tool to scrape away enough seal so that Mounting Boss can seat correctly. REMOVE SWARF DRILL ROOF Avoid scratching and Using supplied 4.9mm Drill Bit and a Drill Stop, carefully pushing swarf into drill through the roof channel at the marked location.
  • Page 9 REFIT ROOF TRIM ATTACH PLASTIC CLIP TO REAR SMALL TRIM Return the two pieces of trim cut in Apply Double Step 3 back into roof channel as shown. Sided Tape to the underside of small Ensure trim is hooked back onto the rear trim piece cut roof channel via the plastic clips.
  • Page 10 Align rear of Track by inserting a Rivet through End Cap and Track into the previously drilled hole. Secure using a Rivet Gun. TRACK INSTALLATION COMPLETE Check both Tracks are secured to the vehicle as per these installation instructions. For assistance contact your local Yakima dealer. PLEASE SEE NEXT PAGES FOR BAR INSTALLATION 28-13-021-Rev1 10/15...

  • Page 11: Leg Assembly

    BAR INSTALLATION Apply a high strength (red) thread REMOVE LEG COVERS locking compound* to the first half of Using the keys supplied in the thread on each M8 Set Screw 16mm. LOCKN’LOAD Leg Kit (sold separately), remove all Leg Covers. If bars are removed in the future and legs repositioned, thread locking compound...
  • Page 12 BAR LOCATION BAR PLACEMENT IMPORTANT: Before Carefully place a Bar assembly over Track. Take care not beginning Bar installation, to damage vehicle. Slide Legs along Bar until both legs identify where along are securely positioned within Track. Use a Tape Measure the Track you want the to ensure even Bar overhang on each side, re-adjust if Rear Bars fitted.
  • Page 13 INSERT LEGS Slide Leg assemblies into the underside channel of LOCKN’LOAD Bars. Slide in until Leg reaches Slot Cover. Do not compress slot cover. BAR SLOT COVERS (OUTSIDE LEG) SECURE LEGS TO BARS Tighten all M8 Set Screws Measure the Bar channel outside of the Legs and to 7Nm using a 13mm subtract 20mm from this measurement.
  • Page 14 Secure using Plastite Screw SECURE END CAPS TO BARS (from LOCKN’LOAD Leg Kit). Insert the End Caps as shown. A Rubber Mallet Tighten using a #2 Phillips Head can be used to assist installation. Screwdriver. BAR FITMENT INSERT NUT PLATES Run all M6 Hex Slide Nut Plates within Track into position for front and Screws through...
  • Page 15 Write the key number (which is stamped on the key) in the box provided. Replacement keys are available from Yakima stockists, visit www.yakima.com.au or www.yakima.co.nz to find your nearest store or contact us directly on 1800 143 548 (AU) or 0800 4776 722 (NZ).
