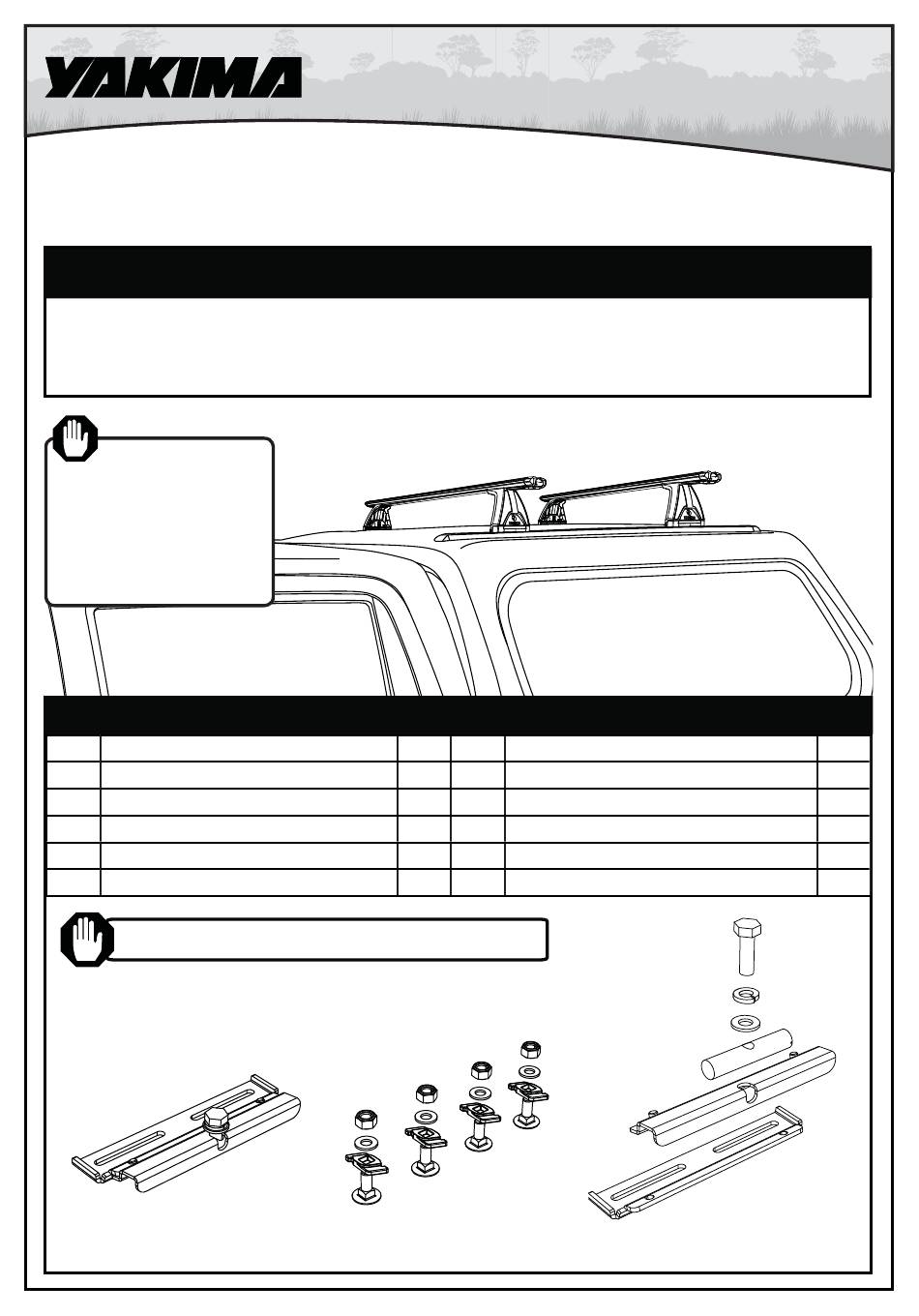

LOAD LIMITS ARE DETERMINED BY CANOPY ROOF STRENGTH.
CONTACT YOUR CANOPY MANUFACTURER FOR DETAILS.
SOME DEFLECTION MAY OCCUR WITH ANY SIGNIFICANT LOAD.
SERIOUS OFF-ROAD DRIVING MAY ALSO CAUSE DEFLECTION.
TOTAL LOAD EQUALS WEIGHT OF ROOF RACKS + ACCESSORIES + CARGO.
•
Please read instructions carefully before installation.
•
Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
•
Clean your tracks thoroughly prior to fi tting the LOCKN'LOAD Track Adapter for Gutter Mount Legs.
•
Place these instructions in the vehicle's glove box after installation is complete.
TOOLS REQUIRED:
• Tape Measure
• Scissors
• #2 Phillips Head Screwdriver
• Rubber Mallet (Optional)
• 13mm Socket Wrench
ITEM COMPONENT
1.
M6 Bolt Housing
2.
Base Plate
3.
M6 Coach Bolt 16mm
4.
M6 Washer
5.
M6 Nylock Nut
LEG, BAR & TRACK COMPONENTS SOLD SEPARATELY
6100002524-Rev1.0
®
LOCKN'LOAD
FIRST TIME INSTALLATION
NOTE - 2x Track Adapters required for 2 Bar set-up
KIT CONTENTS
QTY
ITEM COMPONENT
x4
6.
x2
7.
x4
8.
x4
9.
x4
10.
TRACK ADAPTER FOR
TM
GUTTER MOUNT LEGS
Plate And Pin Assembly
M8 Cross Dowel Nut
M8 Hex Bolt 25mm
M8 Washer
M8 Spring Washer
5
4
1
3
QTY
x2
x2
x2
x2
x2
8
10
9
7
6
2
1/7

Advertisement

loading
Need help?

Need help?

Do you have a question about the LOCKN’LOAD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yakima LOCKN’LOAD

Summary of Contents for Yakima LOCKN’LOAD

  • Page 1 Please read instructions carefully before installation. • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. • Clean your tracks thoroughly prior to fi tting the LOCKN’LOAD Track Adapter for Gutter Mount Legs.

  • Page 2: Installation

    INSTALLATION REMOVE LEG COVERS REMOVE FOOT BASE Using the Keys remove all Leg Remove Locking Covers. Clip to release Locking Clip Base underneath Rubber Skirt. Store parts away. INSTALL HEX BOLT ASSEMBLY From the Track Adapter Kit, assemble 1 x M8 Spring Washer, and 1 x M8 REMOVE GUTTER Washer onto each M8 Hex Bolt MOUNT PLATE...
  • Page 3 ATTACH BASE PLATE TO TRACKS LEG ASSEMBLY Position the Base Plate over Coach From the Gutter Mount Kit, position Nut Bolt assemblies in track and loosely Plates over holes on top of Legs. fi nger tighten with M6 Washer and Nylock Nut.
  • Page 4 BAR LOCATION IMPORTANT: Before beginning Bar installation, identify where along the track you want the Bar(s) fi tted. If installing more than one Bar, we recommend a minimum of 700mm distance between Bars where possible. BAR PLACEMENT Carefully place a Bar assembly over Track. Take care not to damage vehicle. Slide Legs along Bar until both legs are securely positioned within Track.
  • Page 5 SECURE LEGS TO BARS BAR SLOT COVERS Tighten all M8 Hex Bolts Cut Bar Slot Covers as per measurements recorded to 7Nm using a 13mm in the table on Step 13 and push into underside Socket Wrench. channel of front and rear Bar ends as shown. NOTE - Bar Slot Covers to be inserted with fl...
  • Page 6 BAR FITMENT Slide Base Plate assemblies within Track into position for front and rear Bar placement. Place Bar assembly onto Tracks locating the Rubber Foot Grip as shown on the Base Plate. Take care not to damage vehicle. Repeat for any remaining Bars. SECURE LEGS TO BASE PLATE Attach Leg to Base Plate by hooking the Plate and Pin...
  • Page 7 Write the key number (which is stamped on the key) in the box provided. Replacement keys are available from Yakima stockists, visit www.yakima.com.au or www.yakima. co.nz to fi nd your nearest store or contact us directly on 1800 143 548 (AU) or 0800 4776 722 (NZ).
