Yakima LOCKN’LOAD First Time Installation

Platform gas bottle restraint kit

Hide thumbs Also See for LOCKN’LOAD:

•

Please read instructions carefully before installation.

•

Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.

•

Clean your platform prior to fitting the LOCKN'LOAD Gas Bottle Restraint kit.

•

Place these instructions in the vehicle's glove box after installation is complete.

PLATFORM SOLD SEPARATELY

ITEM COMPONENT

Gas Bottle Restraint Strap x1

Ratchet Strap

M10 Eye Bolt

M10 Washer

M10 T-Nut

Baseplate

Protective Tape

09-13-593-Rev2

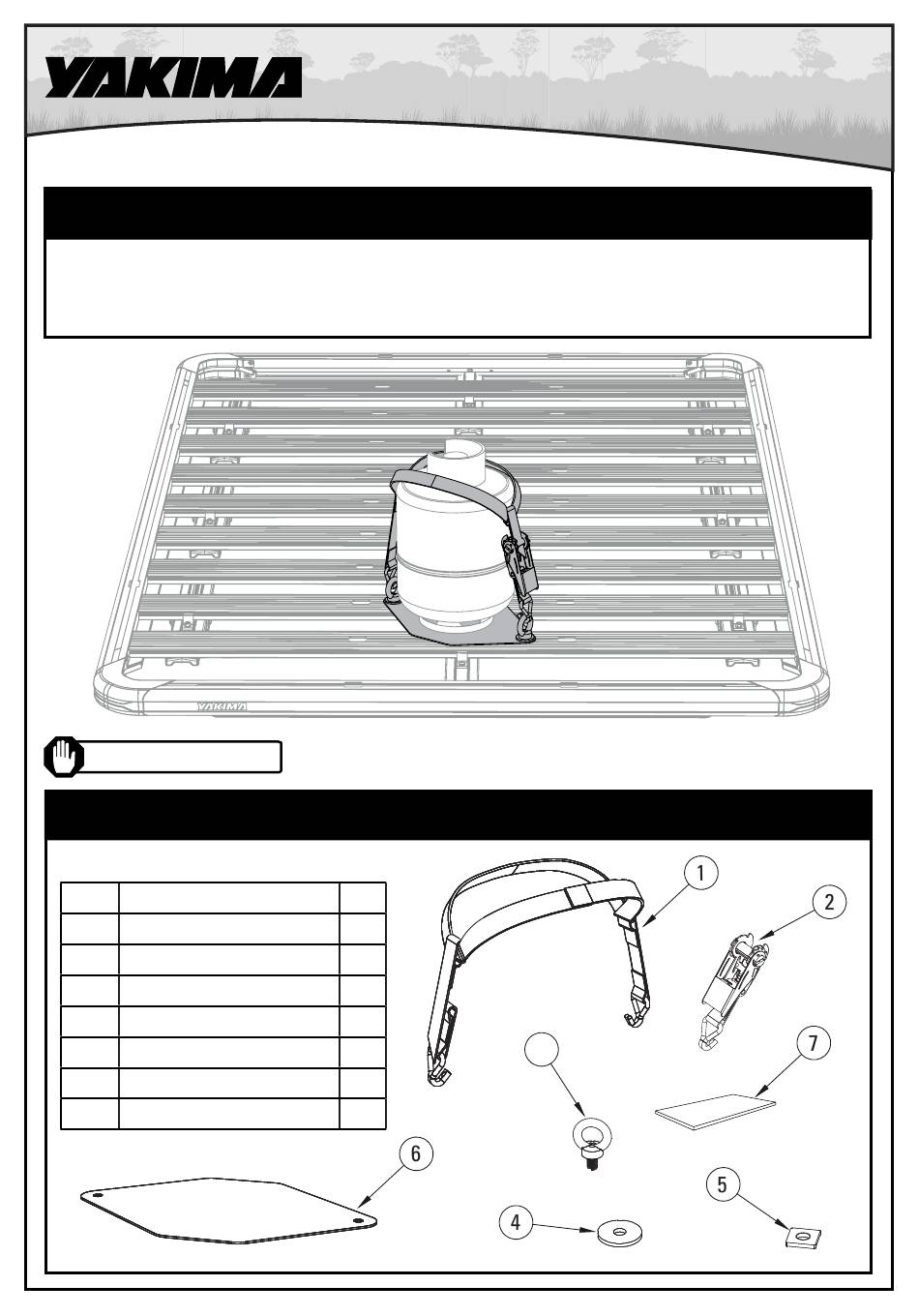

PLATFORM GAS BOTTLE RESTRAINT KIT

FIRST TIME INSTALLATION

KIT CONTENTS

QTY

LOCKN'LOAD

1/4

Table of Contents

Do you have a question about the LOCKN’LOAD and is the answer not in the manual?

Page 1 FIRST TIME INSTALLATION • Please read instructions carefully before installation. • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. • Clean your platform prior to fitting the LOCKN’LOAD Gas Bottle Restraint kit. •...
Page 2 INSTALLATION LOOSELY ASSEMBLE COMPONENTS ONTO BASE PLATE Loosely assemble the Eye Bolts, Washers and T-Nuts to the Baseplate ensuring the T-Nuts are placed under the plate. Ensure there is enough slack between the T-Nuts and the Baseplate to allow the T-Nut to slide under and along the slat channels of the platform. POSITION BASEPLATE Determine where on the platform you wish to install the gas bottle holder.
Page 3 SECURE EYE BOLTS Tighten Eye Bolts. A tool such as a screwdriver, placed through the eye of the bolt, may be used for leverage to tighten the Eye Bolt firmly. APPLY PROTECTIVE TAPE Remove backing off Protective Tape and apply as required to the top surface of the Baseplate to prevent scratching.
Page 4 YAKIMA AUSTRALIA PTY. LTD 17 Hinkler Court Brendale, QLD 4500 Australia 1800 143 548 YAKIMA EUROPE Archimedesbaan 25 3439 ME Nieuwegein The Netherlands +31 2080 81425 YAKIMA PRODUCTS, INC. 4101 Kruse Way Lake Oswego, OR 97035-2541 888 925 4621...
