LockNLoad
Jerry Can Holder
CONTENTS •
CONTENU • CONTENIDO

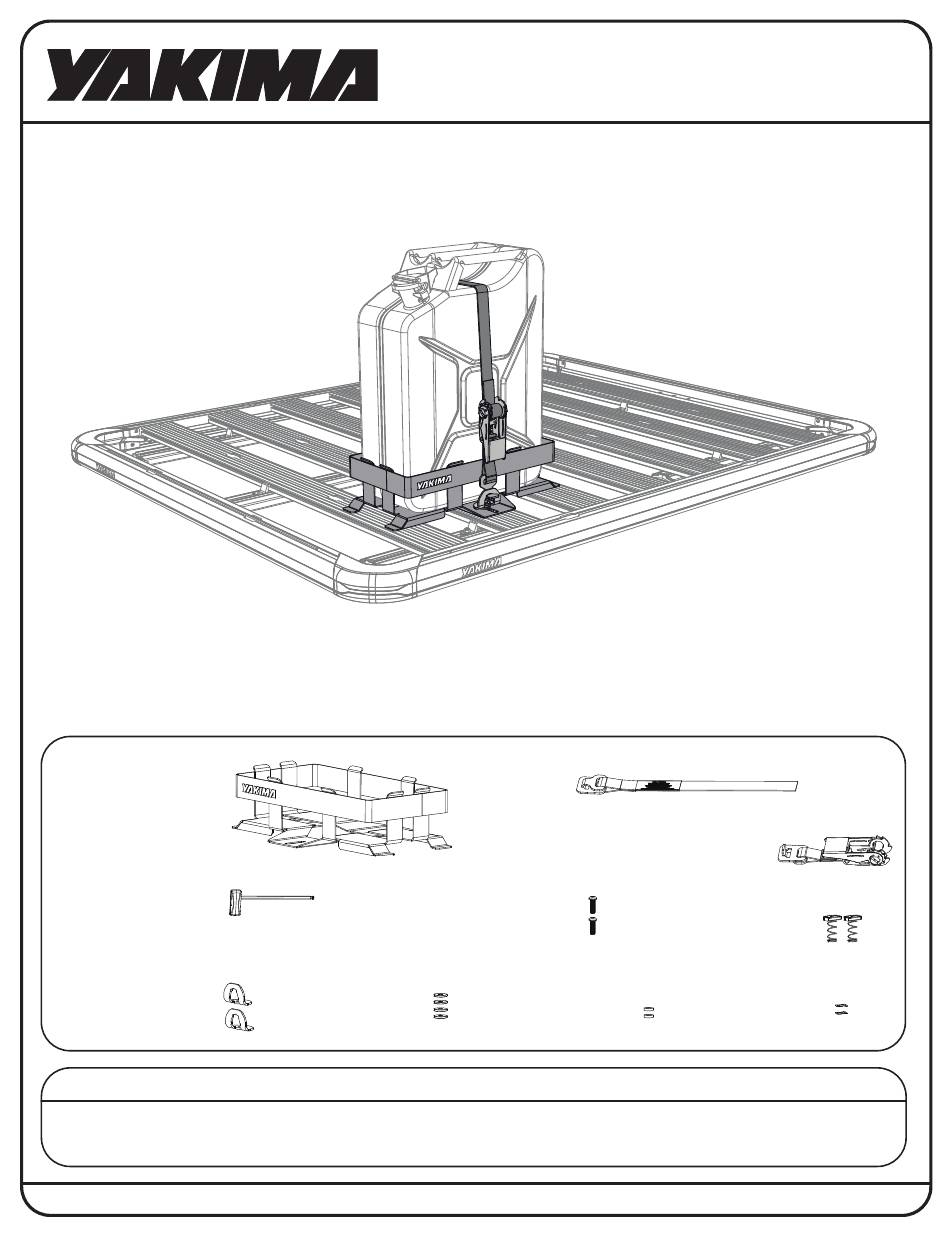

loose strap (1X)
Jerry Can Holder (1X)
sangle (x 1)
porte-bidon (x 1)
correa (1X)
portabidón Jerry Can Holder (1X)
ratchet strap (1X)
sangle à cliquet (x 1)
correa con trinquete (1X)
5mm hex key (1X)
clé hexagonale de 5 mm (x 1)
M8 x 25mm buttonhead capscrew (2X)
M8 spring nut (2X)
llave hexagonal de 5 mm (1X)
boulon à tête ronde M8 x 25 mm (x 2)
plaquette filetée à ressort M8 (x 2)
tornillo de cabeza redonda M8 x 25 mm (2X)
tuerca con resorte M8 (2X)
thrust washer (4X)
swivel spacer (2X)
swivel anchor (2X)
wave washer (2X)
rondelle de butée (x 4)
entretoise (x 2)
rondelle ondulée (x 2)
anneau pivotant (x 2)
arandela de empuje (4X)
espaciador giratorio (2X)
anclaje orientable (2X)
arandela ondeada (2X)
• CHARGE MAXIMALE • CAPACIDAD DE CARGA
LOAD CAPACITY
One 10L or 20L jerry water or fuel can up to 55lbs (25 kg).
Un bidon d'eau ou de carburant de 10  ou 20 litres d'un poids maximal de 25 kg (55 lb).
Un bidón de agua de 10 ó 20 litros o una lata de combustible de hasta 55 lb (25 kg).
Pour le français, aller à la page 5.
Para español ir a la página 5.
Instruction #6100002960-Rev4 - Page 1 of 8
