Please read instructions carefully before installation.
•
Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
•
Clean your Platform prior to fitting the YAKIMA LockNLoad High Lift Jack Holder.
•
Place these instructions in the vehicle's glove box after installation is complete.
PLATFORM SOLD SEPARATELY
ITEM COMPONENT
1.
High Lift Jack Holder
Clamp Bracket
2.
High Lift Jack Holder
Padlock Bracket
3.
Clamp
4.
M8 Spring Nut
5.
M8 Socket Head
Capscrew 25 mm
(Crossbars only)
6.
M8 Spring Washer
7.
M8 Washer
8.
M10 Washer
9.
M10 Spring Washer
10.
M10 x 40 mm
Hex Screw
11.
M10 x 30 mm
Hex Screw
12.
Allen Key 6 mm
13.
M8 Socket Head
Capscrew 20 mm
(Platform only)
09-13-592-Rev2
®

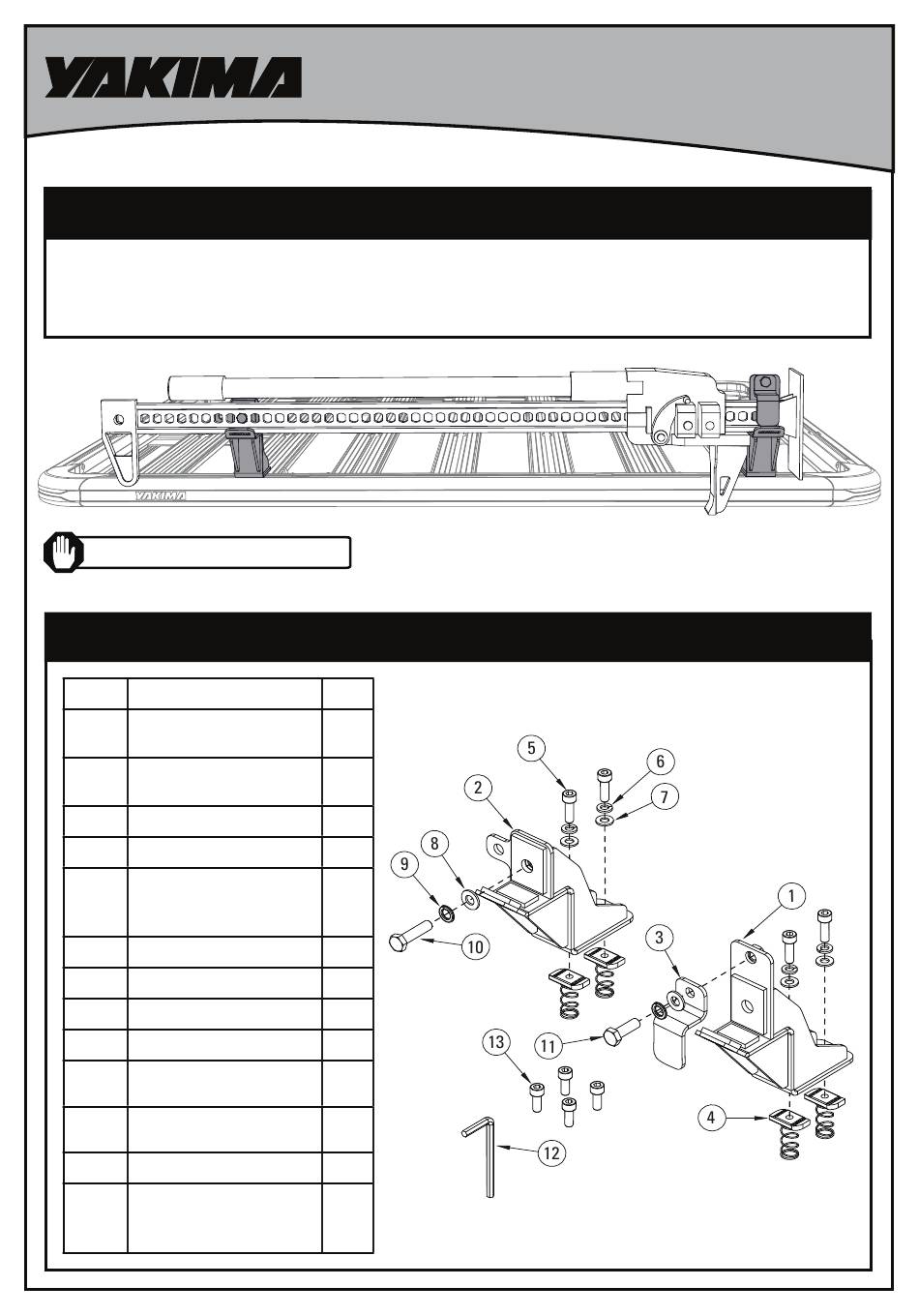

FIRST TIME INSTALLATION

KIT CONTENTS

QTY
x1
x1
x1
x4
x4
x4
x4
x2
x2
x1
x1
x1
x4
LockNLoad
HIGH LIFT JACK HOLDER
™
1/4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LockNLoad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yakima LockNLoad

Summary of Contents for Yakima LockNLoad

  • Page 1 FIRST TIME INSTALLATION • Please read instructions carefully before installation. • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. • Clean your Platform prior to fitting the YAKIMA LockNLoad High Lift Jack Holder. •...
  • Page 2 The Spring Nuts do not need to be rotated into place. INSERT SPRING NUTS - LockNLoad BAR Insert 4x M8 Spring Nuts into crossbar channels as shown. Push Spring Nuts down into crossbar channels and twist to lock into place.
  • Page 3 Spring Washers and 2 x M8 Washers per bracket as shown. Tighten all Capscrews with supplied Allen Key to 4-5 Nm SECURE BRACKETS - LockNLoad BAR Secure both Brackets onto the Platform via the Spring Nuts using 2 x M8 Socket Head Capscrews 25 mm, 2 x M8 Spring Washers and 2 x M8 Washers per bracket as shown.
  • Page 4 YAKIMA AUSTRALIA PTY. LTD 17 Hinkler Court Brendale, QLD 4500 Australia 1800 143 548 YAKIMA PRODUCTS, INC. 4101 Kruse Way Lake Oswego, OR 97035-2541 888 925 4621 09-13-592-Rev2...
