Yakima LockNLoad Crossbar Clamps Manual

2 pack

Download this manual

bracket (2X)

support (x 2)

soporte (2X)

4mm hex or torque wrench

10mm box or spanner wrench

Note: Each 2 pack of adapters is for

one crossbar. Purchase additional sets

depending on the number of crossbars.

Pour le français, allez à la page 3.

Instruction #1035988A - Page 1 of 5

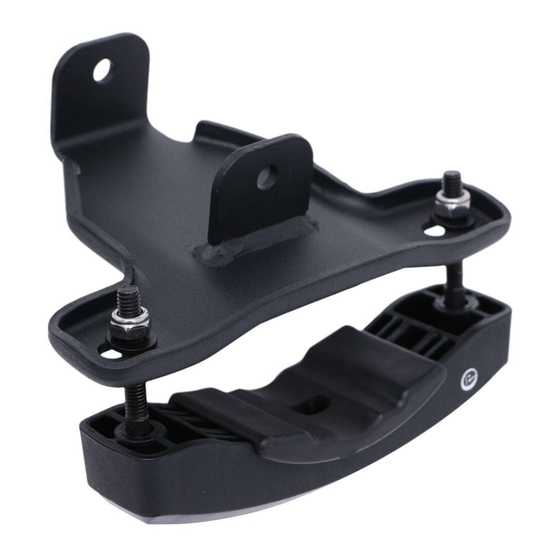

Crossbar Clamps, 2 Pack

M6 nyloc nut (4X)

écrou nyloc M6 (x 4)

tuerca nyloc M6 (4X)

Go to yakimatech.com for your specific vehicle load capacity

OverHaul HD, OutPost HD, BedRock HD - 300 lbs (136 kg)

clamp (2X)

mâchoire (x 2)

abrazadera (2X)

M6 washer (4X)

rondelle M6 (x 4)

arandela M6 (4X)

2 Crossbars (4 Clamps) - up to 220lbs (100 kg)

3 Crossbars (6 Clamps) - up to 330lbs (150 kg)

4 Crossbars (8 Clamps) - up to 440lbs (200 kg)

Para español ir a la página 3.

LockNLoad

Need help?

Do you have a question about the LockNLoad Crossbar Clamps and is the answer not in the manual?

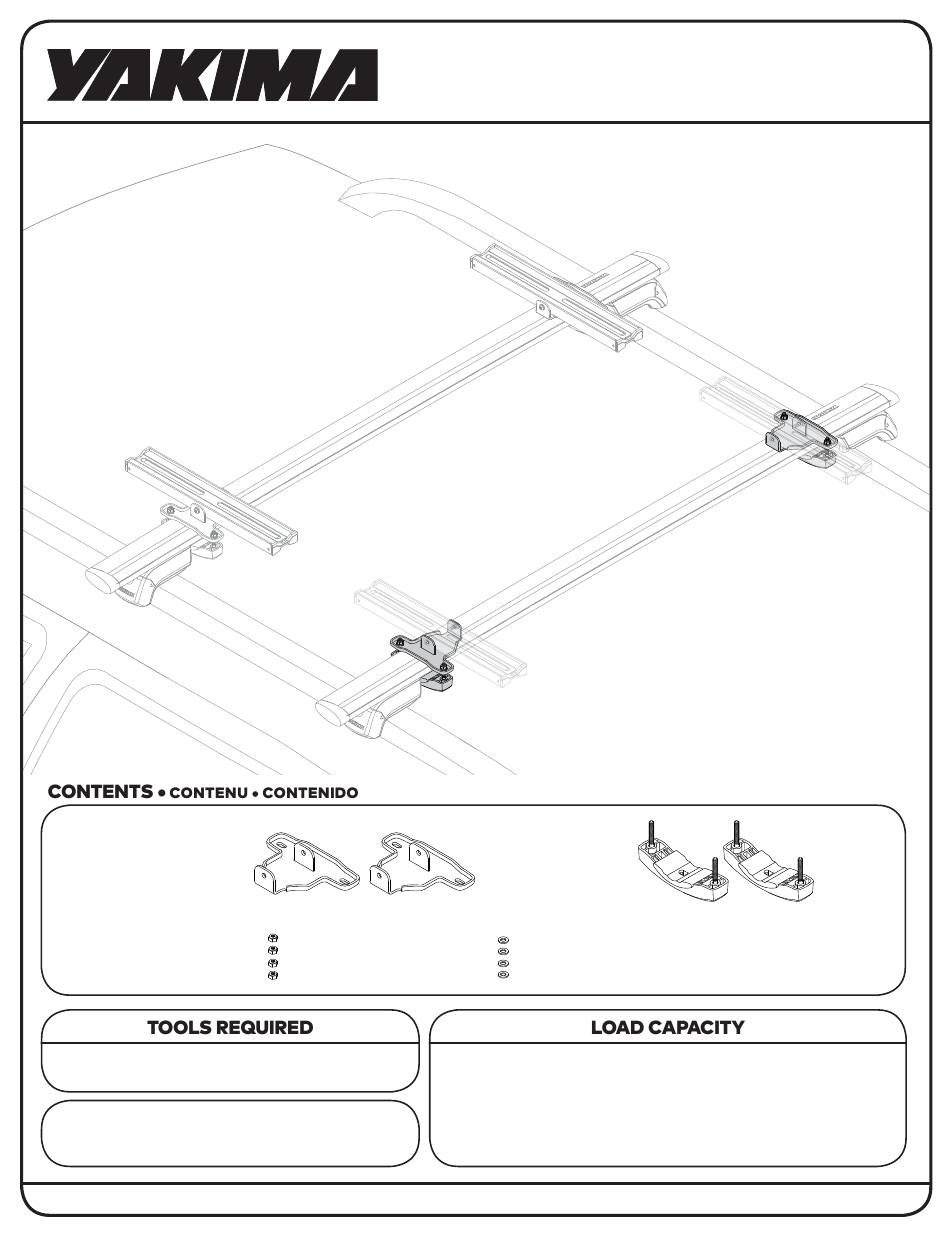

Page 1 LockNLoad Crossbar Clamps, 2 Pack clamp (2X) bracket (2X) mâchoire (x 2) support (x 2) abrazadera (2X) soporte (2X) M6 nyloc nut (4X) M6 washer (4X) écrou nyloc M6 (x 4) rondelle M6 (x 4) tuerca nyloc M6 (4X) arandela M6 (4X) 4mm hex or torque wrench Go to yakimatech.com for your specific vehicle load capacity 10mm box or spanner wrench...
Page 2 ATTACH THE MOUNTING BLOCKS TO YOUR BRACKETS. 4 Nm Then tighten the M6 x 16mm capscrews from your LockNLoad Platform to 4 Nm Align the mounting blocks that came with your with a 4mm hex or torque wrench. LockNLoad Platform with the brackets. ATTACH THE MOUNTING BLOCKS TO YOUR CROSSBARS.
Page 3 ESPAÑOL Français clé hexagonale ou dynamométrique de 4 mm Llave hexagonal o llave de torsión de 4 mm clé plate ou polygonale de 10 mm Llave de anillo o de tubo de 10 mm Remarque : il faut une paire d’adaptateurs par barre Nota: Cada paquete contiene 2 adaptadores para una transversale.
Page 4 In order to replace any lost or defective keys, note the lock and note du numéro de la serrure et des clés ci-dessous et les enregistrer key numbers below and register them at www.yakima.com. à www.yakima.com. Instruction #1035988A - Page 4 of 5...
Page 5 Para reemplazar una llave perdida o defectuosa, anote más abajo los números de la cerradura y de la llave y regístrelos en www.yakima.com. Instruction #1035988A - Page 5 of 5...
