MAX LOAD RATING: 8KG
•
Please read instructions carefully before installation.
•
Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
•
Clean your Platform prior to fitting the LOCKN'LOAD Platform Inboard Light Bracket Kit.
•
Place these instructions in the vehicle's glove box after installation is complete.
PLATFORM AND LIGHT BAR SOLD SEPARATELY
TOOLS REQUIRED:
• Allen Key
• 10mm Socket Wrench/Spanner
ITEM COMPONENT
1.
Inboard Light Bar
Bracket Right Bend
2.
Inboard Light Bar
Bracket Left Bend
3.
Nyloc Nut
4.
Washer
5.
T Bolt
80-13-037-Rev2
®

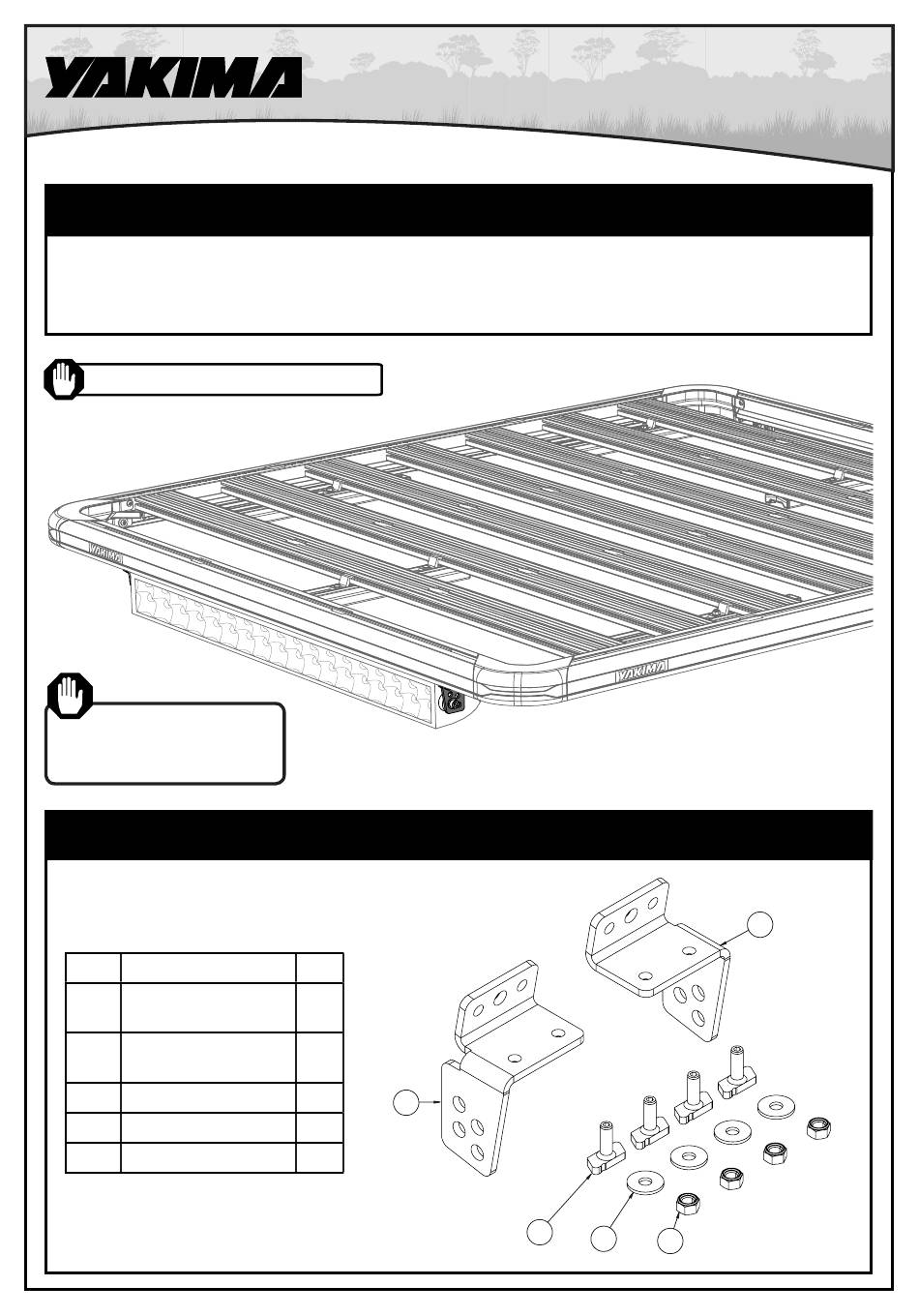

PLATFORM INBOARD LIGHT BRACKET KIT
FIRST TIME INSTALLATION
KIT CONTENTS
QTY
x1
x1
x4
1
x4
x4
LOCKN'LOAD
5
4
3
TM
2
1/4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yakima LOCKN'LOAD
Summary of Contents for Yakima LOCKN'LOAD
- Page 1 FIRST TIME INSTALLATION • Please read instructions carefully before installation. • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. • Clean your Platform prior to fitting the LOCKN’LOAD Platform Inboard Light Bracket Kit. •...
- Page 2 LIGHT BAR INSTALLATION CONFIGURATIONS The Light Bar Brackets can be mounted to the Platform in two different orientations to suit side or top mounted light bars as shown. REMOVE DEFLECTOR OR RUBBER INFILL If mounting to the front of the Platform, remove the deflector. If mounting to the rear of the Platform remove the rubber infill.
- Page 3 LOOSELY ASSEMBLE BRACKETS Loosely assemble the T Bolts, Washers and Nuts to the brackets as shown. POSITION LIGHT BAR INTO PLATFORM Position light bar and bracket assembly into the underside channel of Platform as shown. Once in position, use an Allen Key to ensure the T Bolts are turned all the way to the locked position.
- Page 4 Ensure all screws are regularly checked and tightened to ensure minimal bounce and maximum safety. Ensure all wiring is retained according to Light Bar manufacturer instructions. www.yakima.com.au YAKIMA AUSTRALIA PTY. LTD YAKIMA EUROPE YAKIMA PRODUCTS, INC. 17 Hinkler Court Twentehaven 7 4101 Kruse Way...
