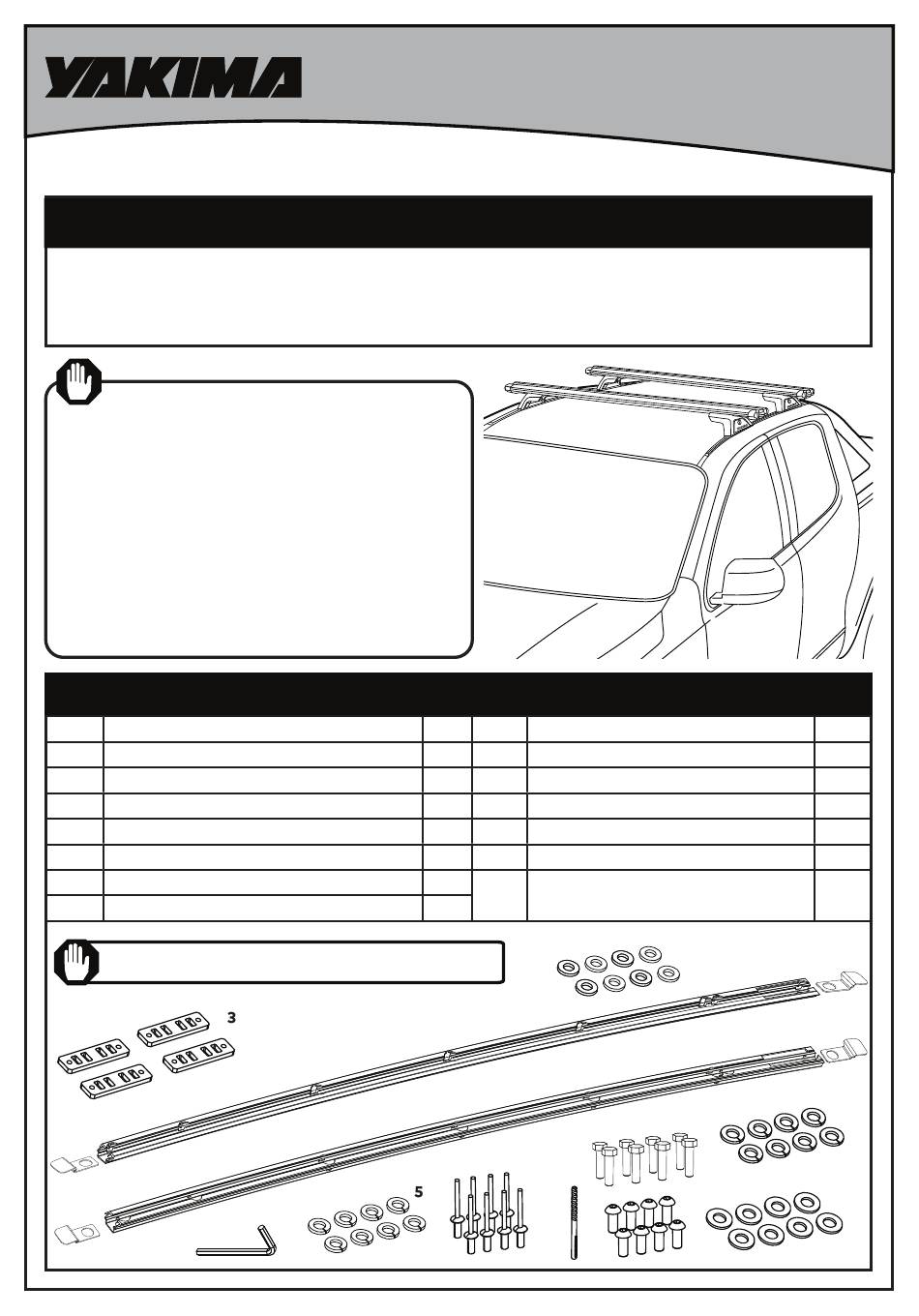

Track mounting kit for holden colorado / isuzu d-max dual cab 2012+ track mount heavy duty roof rack system

Advertisement

Quick Links

MAX VEHICLE ROOF LOAD RATING: 100KG
TOTAL LOAD EQUALS WEIGHT OF ROOF RACKS + ACCESSORIES + CARGO
Please read instructions carefully before installation.
Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
Clean your roof thoroughly prior to fitting the LockNLoad Track Heavy Duty Roof Rack System.
Place these instructions in the vehicle's glove box after installation is complete.
TOOLS REQUIRED:
Marking Pen
• Tape Measure
Masking Tape
Scissors
3 mm Drill Bit
7 mm Drill Bit
Drill Bit Stop
Rivet Gun
• Tin Snips
Flat Blade Screwdriver
#2 Phillips Head Screwdriver
Zinc Rich Cold Galvanising Coating
ITEM
COMPONENT
1.
Track Colorado/D-Max Right Hand Side x1
2.
Track Colorado/D-Max Left Hand Side
3.
Track Nut Plate
4.
M6 Washer
5.
M6 Spring Washer
6.
Rivet
7.
4.9mm Drill Bit
LEG AND BAR COMPONENTS SOLD SEPARATELY
28-13-011-Rev4
LockNLoad Track Mounting Kit
®
HOLDEN COLORADO / ISUZU D-MAX DUAL CAB 2012+
FIRST TIME INSTALLATION
Mastic Silicone Sealant
• Vacuum Cleaner
10mm Open Ended Spanner
13mm Socket or Spanner
Metal File
Die Grinder (D-Max SX only)
Rubber Mallet (Optional)
Power or Cordless Drill

KIT CONTENTS

13
TRACK MOUNT HEAVY DUTY ROOF RACK SYSTEM
QTY ITEM COMPONENT
8.
M6 Hex Screw
x1
9.
Track End Cap
x4
10.
M8 Button Head Screw
x8
11.
M8 Spring Washer
x8
12.
M8 Washer
x8
13.
5mm Allen Key
x1
1
2
6
7
QTY
x8
x4
x8
x8
x8
x1
4
9
11
8
12
10
1/17
