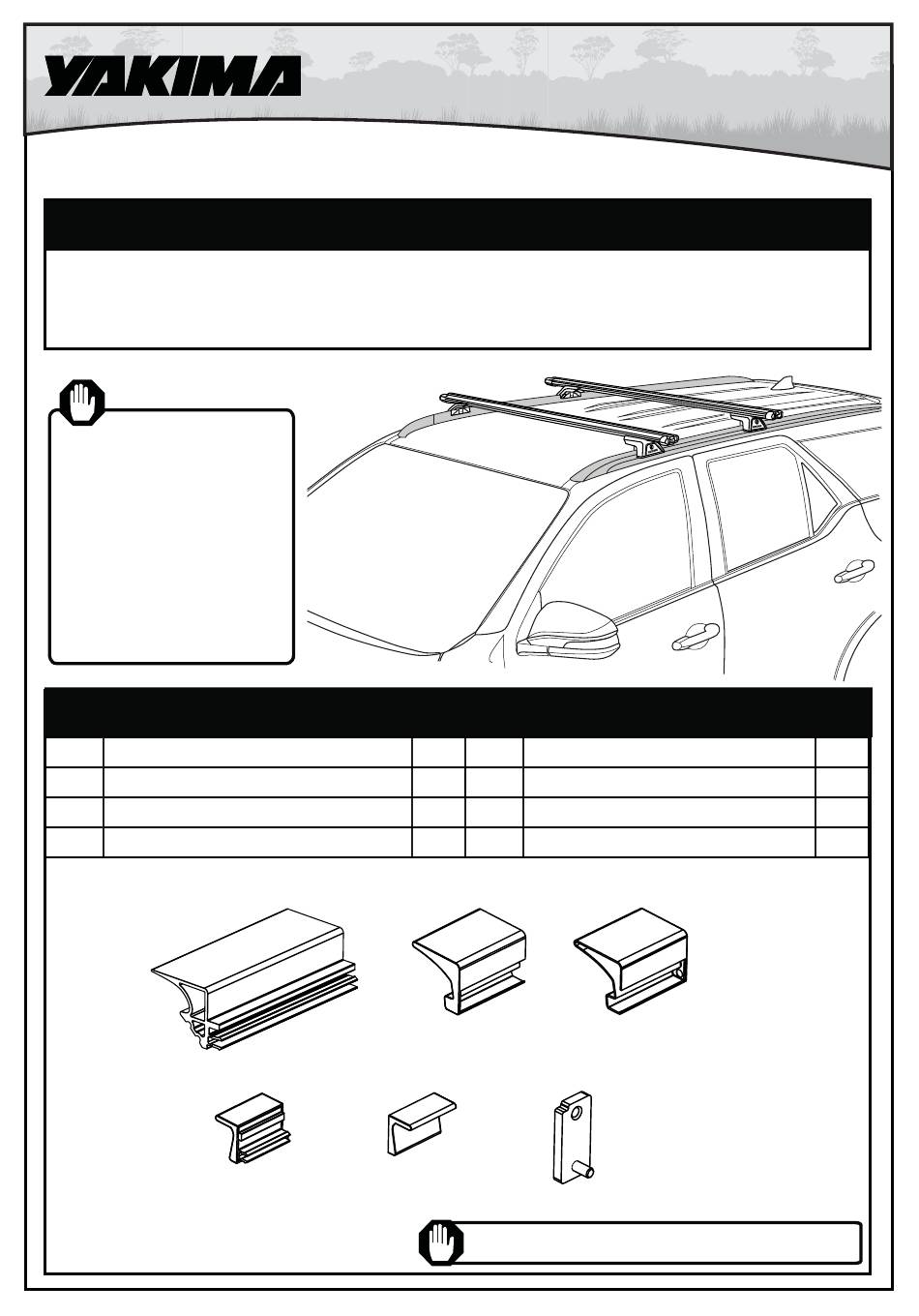

MAX VEHICLE ROOF LOAD RATING:
TOTAL LOAD EQUALS WEIGHT OF ROOF RACKS + ACCESSORIES + CARGO
•
Please read instructions carefully before installation.
•
Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
•
Clean your roof thoroughly prior to fi tting the LOCKN'LOAD Flush Rail Heavy Duty Roof Rack System.
•
Place these instructions in the vehicle's glove box after installation is complete.
TOOLS REQUIRED:
• 4 mm Ball End Allen Key
• 5 mm Allen Key
• 13 mm Ring Spanner
• # 2 Phillips Head Screwdriver
• Scissors
• Tape Measure
• Marking Pen (Optional)
• Torque Wrench (Optional)
ITEM COMPONENT
1.
Foot Extrusion
2.
Rubber Foot Pad
3.
Rubber Foot Pad
4
28-13-356-Rev1.0
LOCKN'LOAD
®
100
KG
FIRST TIME INSTALLATION
KIT CONTENTS
1
5
TM
FLUSH RAIL MOUNTING KIT
MITSUBISHI PAJERO SPORT 2015+
2 BAR FLUSH RAIL HEAVY DUTY ROOF RACK SYSTEM
COMPONENT
QTY
ITEM
x4
4.
Claw Extrusion
x4
5.
Rubber Clamp Pad
x4
6.
Pinned Grip Plate
3
2
6
LEG AND BAR COMPONENTS SOLD SEPARATELY
QTY
x8
x8
x4
1/9
Advertisement
Related Manuals for Yakima LOCKN’LOAD 8000356
Summary of Contents for Yakima LOCKN’LOAD 8000356
- Page 1 Please read instructions carefully before installation. • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. • Clean your roof thoroughly prior to fi tting the LOCKN’LOAD Flush Rail Heavy Duty Roof Rack System.
- Page 2 TABLE OF CONTENTS INSTALLATION OF LOCKN’LOAD CROSSBARS ..........2 INSTALLATION OF LOCKN’LOAD PLATFORM TO FLUSH RAIL LEGS .
-
Page 3: Leg Assembly
LEG ASSEMBLY Push padded Foot Extrusions into the rear cavity of LOCKN’LOAD Legs. (When Slide the Claw assembly into the assembled onto a vehicle these will click LOCKN’LOAD Leg, as shown. into position). Insert the M6 bolt and washer from the Leg kit into the Leg and wind (six revolutions) into the grip plate. - Page 4 BAR PLACEMENT Carefully place Bar assembly onto vehicle. Take care not to damage vehicle. Slide Legs along Bar until foot clamp sits snug against vehicle rail with pins positioned in rail holes. Secure the Claw assembly to the vehicle rail using a 5 mm Allen Key or Torque Wrench. Torque to 4 Nm.
- Page 5 Write the key number (which is stamped on the key) in the box provided. Replacement keys are available from Yakima stockists, visit www.yakima.com.au or www.yakima.co.nz to fi nd your nearest store or contact us directly on 1800 143 548 (AU) or 0800 4776 722 (NZ).
-
Page 6: Foot Assembly
INSTALLATION OF LOCKN’LOAD PLATFORM TO FLUSH RAIL LEGS REMOVE LEG COVERS CLAW ASSEMBLY Using the keys supplied in the Insert a Pinned Grip Plate into each of the LOCKN’LOAD Leg Kit (sold separately), Clamp Claws from the LOCKN’LOAD leg kit. remove all Leg Covers. - Page 7 PIVOT ASSEMBLY Insert an M8 Coach Bolt through each of the Mounting Brackets (from the Platform kit). Place Spherical Bracket onto Leg then insert Mounting Bracket Assembly on top ensuring Coach Bolt slots into the oval hole in the Leg. Place M8 Washer and Bolt onto end of Coach Bolt and loosely fi...
- Page 8 SECURE LEGS Secure Claw assemblies to the vehicle rail using a 5 mm Allen Key or Torque Wrench. Torque to 4 Nm. ASSEMBLE LOCKN’LOAD PLATFORM Assemble Platform according to the LOCKN’LOAD Platform Assembly instructions Steps 1 - 9 (Pages 3 - 6). LIFT PLATFORM ONTO VEHICLE With the help of an assistant, carefully lift assembled Platform up and onto Mounting Blocks on vehicle roof.
- Page 9 Write the key number (which is stamped on the key) in the box provided. Replacement keys are available from Yakima stockists, visit www.yakima.com.au or www.yakima.co.nz to fi nd your nearest store or contact us directly on 1800 143 548 (AU) or 0800 4776 722 (NZ).
