Yakima LockNLoad RuggedLine Manual

MAXIMUM PRODUCT LOAD RATING: 100 kg
IMPORTANT:
• LOAD = WEIGHT OF PLATFORM or BARS + MOUNTING SYSTEM + ACCESSORIES + CARGO
• PLEASE REFER TO VEHICLE MANUFACTURER SPECIFICATIONS FOR MAX ROOF
LOAD CAPACITY OF VEHICLE. THE LOWEST LOAD RATING APPLIES.
• OFFROAD RATING: SCAN QR CODE FOR LOCKNLOAD LOAD RATING GUIDE.
REDUCTIONS MAY APPLY.
• Please read instructions carefully before installation.
• Check the contents of kit. Each spine has the last four digits of the kit's part number lasered in.
Contact your YAKIMA dealer if any parts appear missing, incorrect or damaged.
• Clean your roof thoroughly prior to fitting the LockNLoad RuggedLine.
• Place these instructions in the vehicle's glove box after installation is complete.

TOOLS REQUIRED:

• Small flat bladed screwdriver
• 8mm Socket

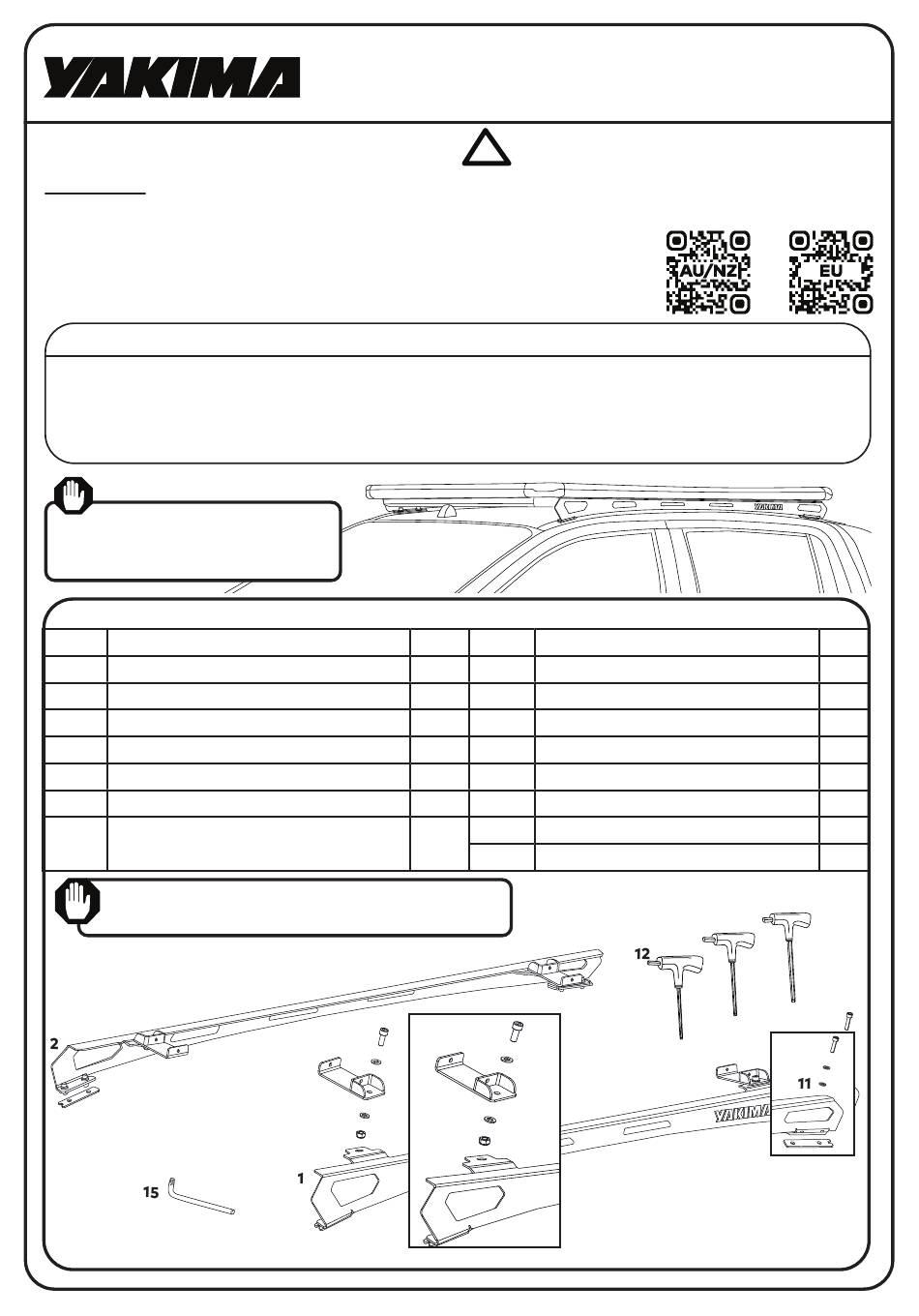

ITEM COMPONENT
1. Wildtrak Left Spine 2176
2. Wildtrak Right Spine 2176
3. Pivot Bracket Assembly
4. Front Spacer
5. Rear Spacer
6. M8 Socket Head Capscrew 20 mm
7. M8 Nyloc Nut 1.25 mm
PLATFORM & COMPONENTS SOLD SEPARATELY
RECOMMENDED PLATFORM SIZE IS 'A' (9820337)
4
6100015154_9812176 _Rev3
®

FIRST TIME INSTALLATION

KIT CONTENTS

QTY
x1
x1
x4
x2
x2
x4
x4
LockNLoad RuggedLine
to suit FORD RANGER WILDTRAK GEN-2
HEAVY DUTY PLATFORM MOUNTING SYSTEM
!
ITEM COMPONENT
8. M8 Washer
9. M6 Sockethead Capscrew 16 mm
10. M6 Spring Washer
11. M6 Washer 16 mm
12. 4 mm T Handle Ball End Allen Key
13. 5 mm T Handle Ball End Allen Key
14. 6 mm T Handle Ball End Allen Key
15. T40 Torx
6 6
8
3
8
7
QTY
x8
x8
x8
x8
x1
x1
x1
x1
14
13
9
10 10
5
1/6
