WPS Configuration — Configures WPS settings for the wireless AP/Router.
• WPS Mode – Selects between methods of broadcasting the WPS beacon to
network clients wanting to join the network:
- PIN: The wireless AP/Router, along with other WPS devices, such as notebook
PCs, cameras, or phones, all come with their own eight-digit PIN code. When
one device, the WPS enrollee, sends a PIN code to the wireless AP/Router, it
becomes the WPS registrar. After configuring PIN-Code information you must
press "Apply" to send the beacon, after which you have up to two minutes to
activate WPS on devices that need to join the network.
- PBC: This has the same effect as pressing the physical WPS button that is
located on the front of the wireless AP/Router. After checking this option and
clicking "Apply" you have up to two minutes to activate WPS on devices that
need to join the network.

Station List

Display the station information which associated to this wireless AP/Router.

Firewall

The wireless AP/Router provides extensive firewall protection by restricting
connection parameters to limit the risk of intrusion and defending against a wide
array of common hacker attacks.

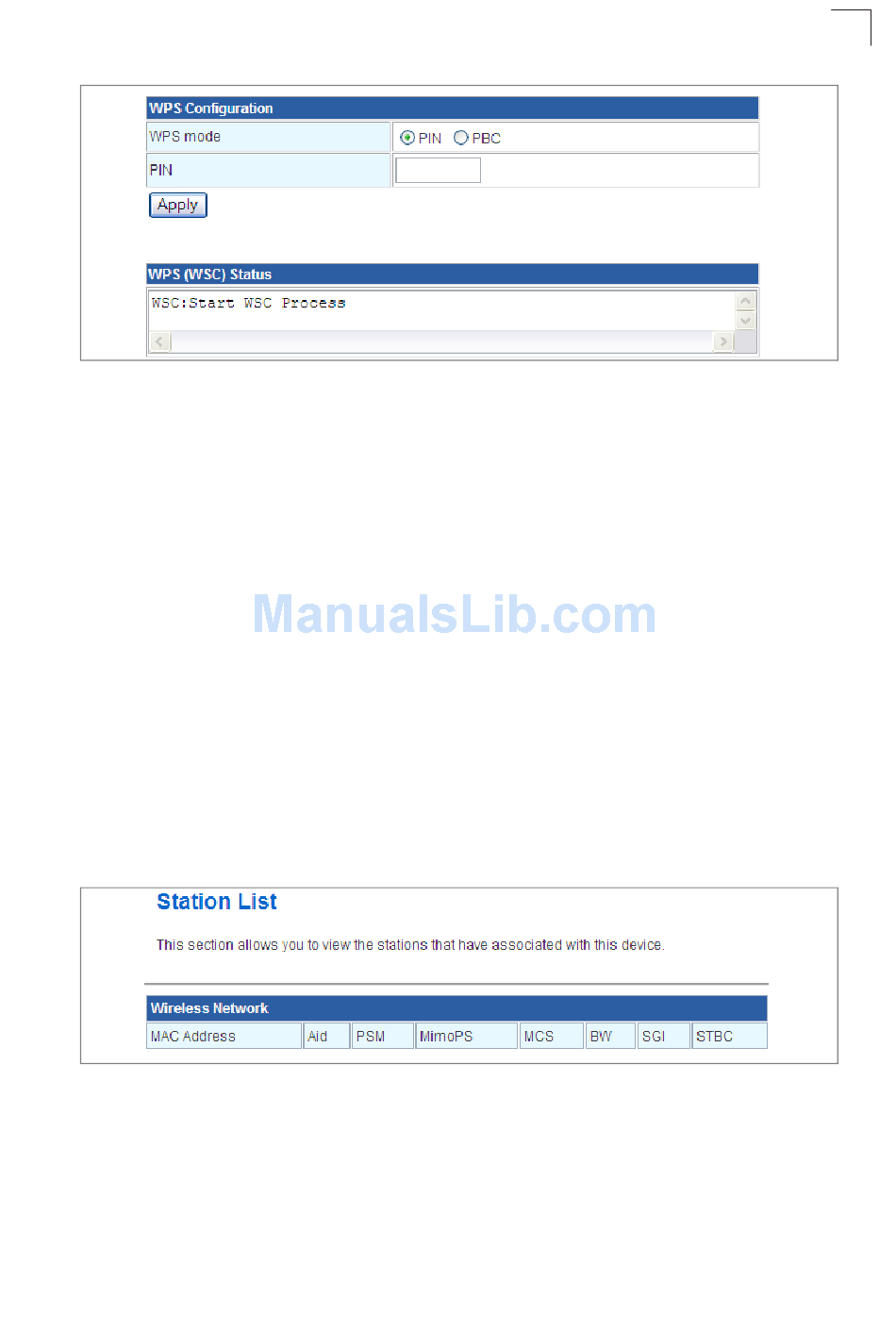

Figure 5-25. WPS Progress Settings
Figure 5-26. Station List
5
Firewall
5-37
