Wireless Bridge

The IEEE 802.11 standard defines a Wireless Distribution System (WDS) for bridge
connections between access points. The wireless AP/Router can use WDS to
forward traffic on links between units.
A single WDS bridge link can be specified for the WLAN1 interface. One end of a
link must be configured as the "WDS Parent" and the other as the "WDS Child."
Note: The network domain of WDS child has to be the same as WDS parent.
Internet
Service
Provider
Cable/DSL
Modem

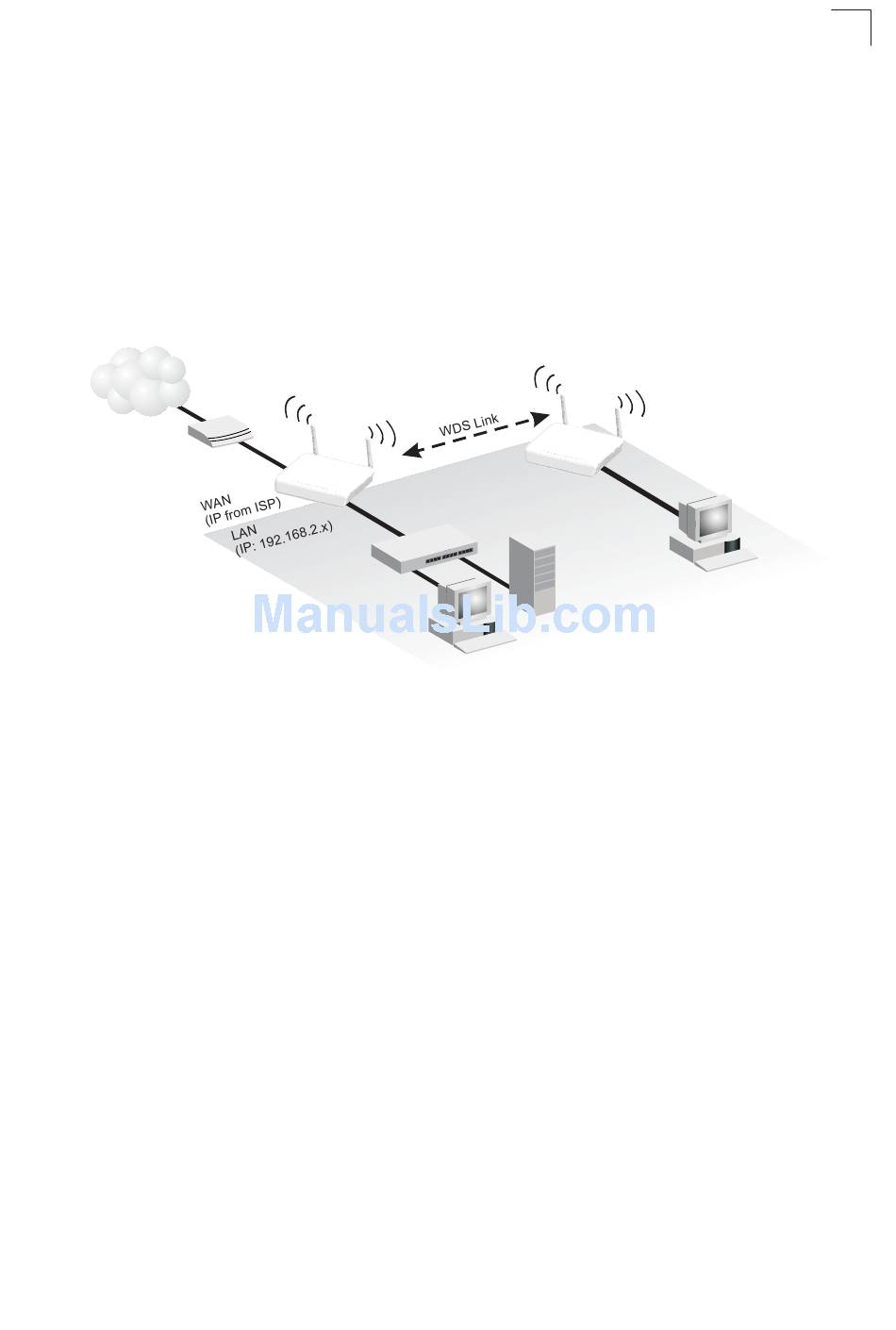

Figure 3-3. Operating as a Wireless Bridge
WDS Parent
Wireless AP/Router
(Gateway Mode)
LAN Switch
Desktop PC
(IP: 192.168.2.x)
WDS Child
Wireless AP/Router
(Bridge Mode)
(IP: 192.168.2.x)
Server
(IP: 192.168.2.x)
3
Wireless Bridge
Desktop PC
3-3
