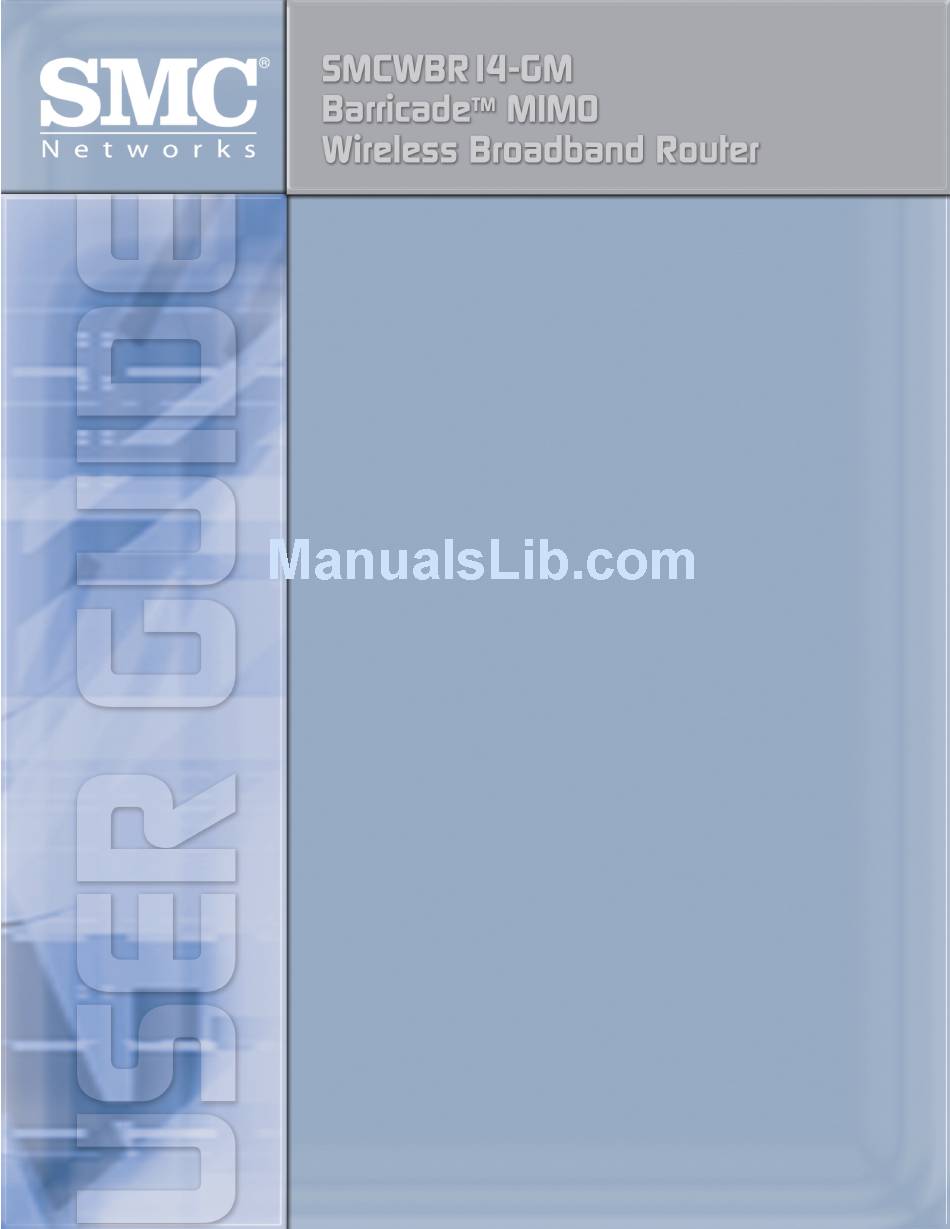

SMC Networks Barricade SMCWBR 14-GM User Manual

Wireless broadband router with mimo technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for SMC Networks Barricade SMCWBR 14-GM

Summary of Contents for SMC Networks Barricade SMCWBR 14-GM

  • Page 2 SMCWBR14-GM Wireless Broadband Router with MIMO Technology User’s Manual...
  • Page 3 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.

  • Page 4: Table Of Contents

    Table of Contents Introduction Features System Requirements Package List Hardware Ports and Buttons LED Indicators Getting Started Configuring Wireless Broadband Router System Settings WAN Settings LAN Settings Wireless Settings Firewall Dynamic DNS Services UPnP System Tools...

  • Page 5: Introduction

    Introduction Congratulations on your purchase of this outstanding Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual.
  • Page 6 Enable you to expose WWW, FTP and other services on your LAN to be accessible to Internet users. User-Definable Application Sensing Tunnel User can define the attributes to support the special applications requiring multiple connections, like Internet gaming, video conferencing, Internet telephony and so on, then this product can sense the application type and open multi-port tunnel for it.

  • Page 7: System Requirements

    VPN Pass-through The router also supports VPN pass-through. 802.1X supported When the 802.1X function is enabled, the Wireless user must authenticate to this router first to use the Network service. Support WPA-PSK and WPA When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service SPI Mode Supported When SPI Mode is enabled, the router will check every incoming packet to detect if this packet...

  • Page 8: Package List

    connection. TCP/IP and NetBIOS network protocol installed. Internet Browser installed. The SMCWBR14-GM requires an external 12V, 1A power supply which is included in the SMCWBR14-GM package. For safe operation, please use only the power adapter provided by SMCWBR14-GM. Package List Wireless broadband router Installation CD-ROM Power adapter...

  • Page 9: Led Indicators

    the port where you will connect your cable (or DSL) modem or Ethernet router. Port 1-4 the ports where you will connect networked computers and other devices. LED Indicators Front Panel Figure 1-2 Front Panel LED: Function Color Power Power Green indication Status...

  • Page 10: Getting Started

    Link. Link status Green Speed 10/100 Data Rate Green Reset Getting Started Procedure for Hardware Installation Decide where to place your Wireless Broadband Router You can place your Wireless Broadband Router on a desk or other flat surface, or you can mount it on a wall.
  • Page 11 Figure 2-1 Setup of LAN and WAN connections for this product. Setup WAN connection Prepare an Ethernet cable for connecting this product to your cable/xDSL modem or Ethernet backbone. Figure 2-3 illustrates the WAN connection. Power on Connecting the power cord to power inlet and turning the power switch on, this product will automatically enter the self-test phase.

  • Page 12: Configuring Wireless Broadband Router

    items in sequence: Is the Ethernet cable correctly connected between this product and your computer? Configuring Wireless Broadband Router This product provides Web based configuration scheme that is, configuring by your Web browser, such as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms.
  • Page 13 Activate your browser, and disable the proxy or add the IP address of this product into the exceptions. Then, type this product’s IP address in the Location (for Netscape) or Address (for IE) field and press ENTER. For example: http://192.168.2.1. After the connection is established, you will see the web user interface of this product.
  • Page 14 This option provides the function for observing this product’s working status: WAN Port Status. If the WAN port is assigned a dynamic IP, there may appear a “Renew” or “Release” button on the Sidenote column. You can click this button to renew or release IP manually. Wizard...
  • Page 15 Setup Wizard will guide you through a basic configuration procedure step by step. Set the basic Wireless Parameters and Press ”Next >” Setup Wizard - Select Time Zone...
  • Page 16 Select the WAN Access Type Set your username and password. You might select from the 3 different connection profiles. Be careful with Always online if you do not have a flatrate-connection!

  • Page 17: System Settings

    System Settings Time Zone Password Settings...
  • Page 18 Enable / Disable Remote Management WAN Setup This option is primary to enable this product to work properly. The setting items and the web...
  • Page 19 appearance depend on the WAN type. Choose correct WAN type before you start. Static IP Address: ISP assigns you a static IP address. WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: enter the proper setting provided by your ISP. Dynamic IP Address: Obtain an IP address from ISP automatically.
  • Page 20 the password, keep it empty. Connection ID: optional. Input the connection ID if your ISP requires it. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to zero or enable Auto-reconnect to disable this feature. If Auto-reconnect is enabled, this product will connect to ISP automatically, after system is restarted or connection is dropped.
  • Page 21 Set the primary and Secondary DNS server(s) as assigned by your ISP. If you are using different DNS servers than your ISP, the Internet response-times might be slower and some sites might become inaccesible.
  • Page 22 LAN & DHCP Server The settings of a TCP/IP environment include host IP, Subnet Mask, Gateway, and DNS configurations. It is not easy to manually configure all the computers and devices in your network. Fortunately, DHCP Server provides a rather simple approach to handle all these settings. This product supports the function of DHCP server.

  • Page 23: Wireless Settings

    Wireless Settings Wireless settings allow you to set the wireless configuration items. Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client stations can roam freely over this product and other Access Points that have the same Network ID.
  • Page 24 RADIUS Server: IP address or the 802.1X server’s domain-name. RADIUS Shared Key Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server. WPA-PSK Select Encryption and Pre-share Key Mode. If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits, if ASCII, the length of Pre-share key is from 8 to 63.
  • Page 25 Check Box was used to switch the function of the WPA. When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server IP address or the 802.1X server’s domain-name. Encryption and RADIUS Shared Key If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits, if ASCII, the length of Pre-share key is from 8 to 63.
  • Page 26 the length of Pre-share key is from 8 to 63. Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server. WPA-PSK /WPA2-PSK Select Encryption and Pre-share Key Mode. If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits, if ASCII, the length of Pre-share key is from 8 to 63.
  • Page 27 Blue Line: Wireless Black Line: Wire If the Settings are ok, the client1 and client2 can get IP from DHCP server. Of AP1.Then Client1 and Client2 can get information each other. AP1 Setting: AP2 (Remote Mac: 00-50-18-00-0f-fd) AP3 (Remote Mac: 00-50-18-00-0f-fc)
  • Page 28 AP2 Setting: AP1 (Remote Mac: 00-50-18-00-0f-fe) AP3 Setting: AP1 (Remote Mac: 00-50-18-00-0f-fe)

  • Page 29: Nat

    Virtual Server This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world. If you wish, you can make some of them accessible by enabling the Virtual Server Mapping. A virtual server is defined as a Service Port, and all requests to this port will be redirected to the computer specified by the Server IP.
  • Page 30 Some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router. The Special Applications feature allows some of these applications to work with this product. If the mechanism of Special Applications fails to make an application work, try setting your computer as the DMZ host instead.

  • Page 31: Firewall

    Firewall Parental Control This option lets you enable / disable web sites / services by setting up rules.
  • Page 32 MAC Filter This option lets you control the Wireless clients connectiong to your MIMO Wireless Router. Each on of them will be checked before letting them connect wirelessly. This option does not work for wired client PCs. You can select from two different policies: Allow: will let all computers access the network, except the ones appearing on the list Block: will not let any computers accessing the network unless they are on the list.
  • Page 33 URL (Website) Blocking URL Blocking will block LAN computers to connect to pre-defined Websites. The major difference between “Domain filter” and “URL Blocking” is Domain filter require user to input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only. In other words, Domain filter can block specific website, while URL Blocking can block hundreds of websites by simply a keyword.
  • Page 34 Advanced Firewall Settings Enable the Advanced Firewall Protection if you want: Hacker attack monitoring and logging Advanced System Log Email Notification Enable the Discard Ping from WAN option if you don’t want to be seen on the Internet. You can also enable / disable VPN protocols to pass through your NAT Firewall Set up your E-Mail address and servers to get the notification emails on the desired account.
  • Page 35 Demilitarized Zone (DMZ) This option lets you open all ports to one workstation behind your Router. Be careful with this option, because it let’s everybody access that particular PC from everywhere.

  • Page 36: Dynamic Dns Services

    Dynamic DNS Services To host your server on a changing IP address, you have to use dynamic domain name service (DDNS). So that anyone wishing to reach your host only needs to know the name of it. Dynamic DNS will map the name of your host to your current IP address, which changes each time you connect your Internet service provider.

  • Page 37: Upnp

    UPnP The Universal Plug and Play architecture offers pervasive peer-to-peer network connectivity of PCs of all form factors, intelligent appliances, and wireless devices. UPnP enables seamless proximity networking in addition to control and data transfer among networked devices in the home, office and everywhere in between.
  • Page 38 Configuration Tools Firmware Upgrade You can upgrade firmware by clicking Apply button.
  • Page 39 Backup Settings You can backup your settings by clicking the Backup Setting button and save it as a bin file. Once you want to restore these settings, please click Firmware Upgrade button and use the bin file you saved. Reset To Factory Defaults You can also reset this product to factory default by clicking the Reset to default button.
  • Page 40 Appendix A TCP/IP Configuration for Windows 95/98 This section introduces you how to install TCP/IP protocol into your personal computer. And suppose you have been successfully installed one network card on your personal computer. If not, please refer to your network card manual. Moreover, the Section B.2 tells you how to set TCP/IP values for working with this NAT Router correctly.
  • Page 41 The TCP/IP protocol shall be listed in the Network window. Click OK to complete the install procedure and restart your PC to enable the TCP/IP protocol. A.2 Set TCP/IP Protocol for Working with NAT Router Click Start button and choose Settings, then click Control Panel. Double click Network icon.
  • Page 42 Click Properties button to set the TCP/IP protocol for this NAT Router. Now, you have two setting methods:...
  • Page 43 Select Obtain an IP address automatically in the IP Address tab. Don’t input any value in the Gateway tab.
  • Page 44 Choose Disable DNS in the DNS Configuration tab. Configure IP manually Select Specify an IP address in the IP Address tab. The default IP address of this product is 192.168.2.1. So please use 192.168.2.xxx (xxx is between 1 and 253) for IP Address field and 255.255.255.0 for Subnet Mask field.
  • Page 45 In the Gateway tab, add the IP address of this product (default IP is 192.168.2.1) in the New gateway field and click Add button. In the DNS Configuration tab, add the DNS values which are provided by the ISP into DNS...
  • Page 46 Server Search Order field and click Add button. Appendix B 802.1x Setting Figure 1: Testing Environment (Use Windows 2000 Radius Server) 1 Equipment Details PC1:...
  • Page 47 Microsoft Windows XP Professional without Service Pack 1. D-Link DWL-650+ wireless LAN adapter Driver version: 3.0.5.0 (Driver date: 03.05.2003) PC2: Microsoft Windows XP Professional with Service Pack 1a. Z-Com XI-725 wireless LAN USB adapter Driver version: 1.7.29.0 (Driver date: 10.20.2001) Authentication Server: Windows 2000 RADIUS server with Service Pack 3 and HotFix Q313664.
  • Page 48 Enable the 802.1X (check the “Enable checkbox“). Enter the RADIUS server IP. Enter the shared key. (The key shared by the RADIUS server and DUT). We will change 802.1X encryption key length to fit the variable test condition. Setup Network adapter on PC 1.
  • Page 49 Figure 2: Enable IEEE 802.1X access control...
  • Page 50 Figure 3: Smart card or certificate properties 4. Windows 2000 RADIUS server Authentication testing: 4.1DUT authenticate PC1 using certificate. (PC2 follows the same test procedures.) Download and install the certificate on PC1. (Fig 4) PC1 choose the SSID of DUT as the Access Point. Set authentication type of wireless client and RADIUS server both to EAP_TLS.
  • Page 51 Figure 4: Certificate information on PC1 Figure 5: Authenticating...
  • Page 52 Figure 6: Authentication success 4.2 DUT authenticate PC2 using PEAP-TLS. PC2 choose the SSID of DUT as the Access Point. Set authentication type of wireless client and RADIUS server both to PEAP_TLS. Disable the wireless connection and enable again. The DUT will send the user's certificate to the RADIUS server, and message of authentication result to PC2.
  • Page 53 Appendix C WPA-PSK and WPA Wireless Router: LAN IP: 192.168.2.1 WAN IP: 192.168.122.216 Radius Server: 192.168.122.1 UserA : XP Wireless Card:Ti-11g Tool: Odyssey Client Manager Refer to: www.funk.com Download: http://www.funk.com/News&Events/ody_c_wpa_preview_pn.asp...
  • Page 54 Or Another Configuration: WPA-PSK In fact, it is not necessary for this function to authenticate by Radius Server, the client and wireless Router authenticate by themselves. Method1: 1. Go to the Web manager of Wireless Router to configure, like below: 2.
  • Page 55 Open “Adapters” 3. Add and edit some settings:...
  • Page 56 4. Back to Connection: Then Select “Connect to network” You will see: Method2:...
  • Page 57 1. First, patch windows XP and have to install “Service package 1” Patch: http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=5039ef4a-61e0-4c44-9 4f0-c25c9de0ace9 2. Then reboot. 3. Setting on the router and client: Router: Client: Go to “Network Connection” and select wireless adapter. Choose “View available Wireless Networks” like below: Advanced choose “123kk”...
  • Page 59 WPA: For this function, we need the server to authenticate. This function is like 802.1x. The above is our environment: Method 1: 1. The UserA or UserB have to get certificate from Radius, first. http://192.168.122.1/certsrv account : fae1 passwd : fae1...
  • Page 60 2. Then, Install this certificate and finish. 3. Go to the Web manager of Wireless Router to configure, like below: 4. Go to Odyssey Client Manager, choose “Profiles” and Setup Profile name as “1”...
  • Page 61 Login name and password are fae1 and fae1. Remember that you get certificate from Radius in Step1. 5. Then Choose “certificate” like above.
  • Page 63 6. Then go to Authentication and first Remove EAP/ TLS and Add EAP/TLS again.
  • Page 64 7. Go “Network” and Select “1” and ok...
  • Page 65 8. Back to Connection and Select “123kk. If successfully, the wireless client has to authenticate with Radius Server, like below: 9.Result: Method 2: 1. The UserA or UserB have to get certificate from Radius,first.
  • Page 66 http://192.168.122.1/certsrv account:fae1 passwd:fae1 2. Then Install this certificate and finish. 3. Setting on the router and client: Router:...
  • Page 67 Client: Go to “Network Connection” and select wireless adapter. Choose “View available Wireless Networks” like below: Advanced choose “123kk” Select “WirelessCA and Enable” in Trusted root certificate authority:...
  • Page 68 Then, if the wireless client wants to associate, it has to request to authenticate. Appendix D FAQ and Troubleshooting Reset to factory Default There are 2 methods to reset to default. Restore with RESET button First, turn off the router and press the RESET button in. And then, power on the router and push the RESET button down until the Status LED start flashing, then remove the finger.
  • Page 69 TECHNICAL SUPPORT From U.S.A. and Canada (24 hours a day, 7 days a week) (800) SMC-4-YOU Phn: (949) 679-8000 Fax: (949) 679-1481 ENGLISH Technical Support information available at www.smc.com FRENCH Informations Support Technique sur www.smc.com DEUTSCH Technischer Support und weitere Information unter www.smc.com SPANISH En www.smc.com Ud.
