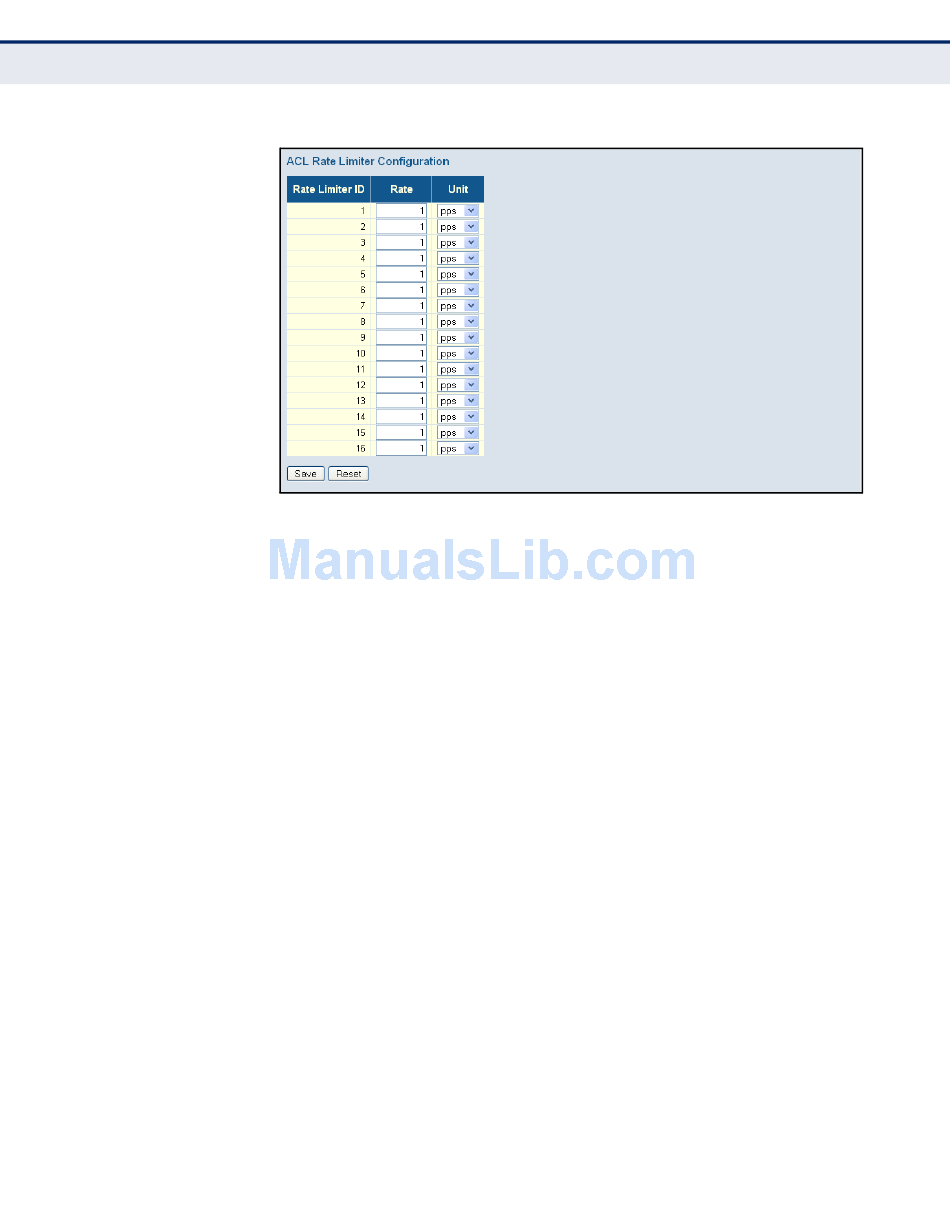

Figure 30: ACL Rate Limiter Configuration

C A
ONFIGURING CCESS
Use the Access Control List Configuration page to define filtering rules for
an ACL policy, for a specific port, or for all ports. Rules applied to a port
take effect immediately, while those defined for a policy must be mapped
to one or more ports using the ACL Ports Configuration menu
P
ATH
Configuration, Security, Network, ACL, Access Control List
U G
SAGE UIDELINES
Rules within an ACL are checked in the configured order, from top to
◆
bottom. A packet will be accepted as soon as it matches a permit rule,
or dropped as soon as it matches a deny rule. If no rules match, the
frame is accepted.
The maximum number of ACL rules that can be configured on the
◆
switch is 128.
The maximum number of ACL rules that can be bound to a port is 10.
◆
ACLs provide frame filtering based on any of the following criteria:
◆
Any frame type (based on MAC address, VLAN ID, VLAN priority)
■
Ethernet type (based on Ethernet type value, MAC address, VLAN
■
ID, VLAN priority)
ARP (based on ARP/RARP type, request/reply, sender/target IP,
■
hardware address matches ARP/RARP MAC address, ARP/RARP
hardware address length matches protocol address length, matches
this entry when ARP/RARP hardware address is equal to Ethernet,
– 91 –
C
HAPTER
C L
ONTROL ISTS
| Configuring the Switch
4
Configuring Security
(page 88).
