Use the QoS Egress Port Shapers page to show an overview of the QoS
Egress Port Shapers, including the rate for each queue and port. Click on
any of the entries in the Port field to configure egress queue mode, queue
shaper (rate and access to excess bandwidth), and port shaper
P
ATH
Configuration, QoS, Port Shaper
P
ARAMETERS
These parameters are displayed:
Displaying QoS Egress Port Schedulers
Port – Port identifier.
◆
Shapers – Shows the queue shaper rate and port shaper rate.
◆
Configuring QoS Egress Port Scheduler, Queue Scheduler and Port Shapers
This configuration page can be access from the Port Scheduler or Port
Shaper page. Refer to the description of these parameters under
"Configuring Egress Port
W I
EB NTERFACE
To show an overview of the rate for each queue and port:
Click Configuration, QoS, Port Shaper.
1.
Click on any enter under the Port field to configure the Port Scheduler
2.
and Shaper.

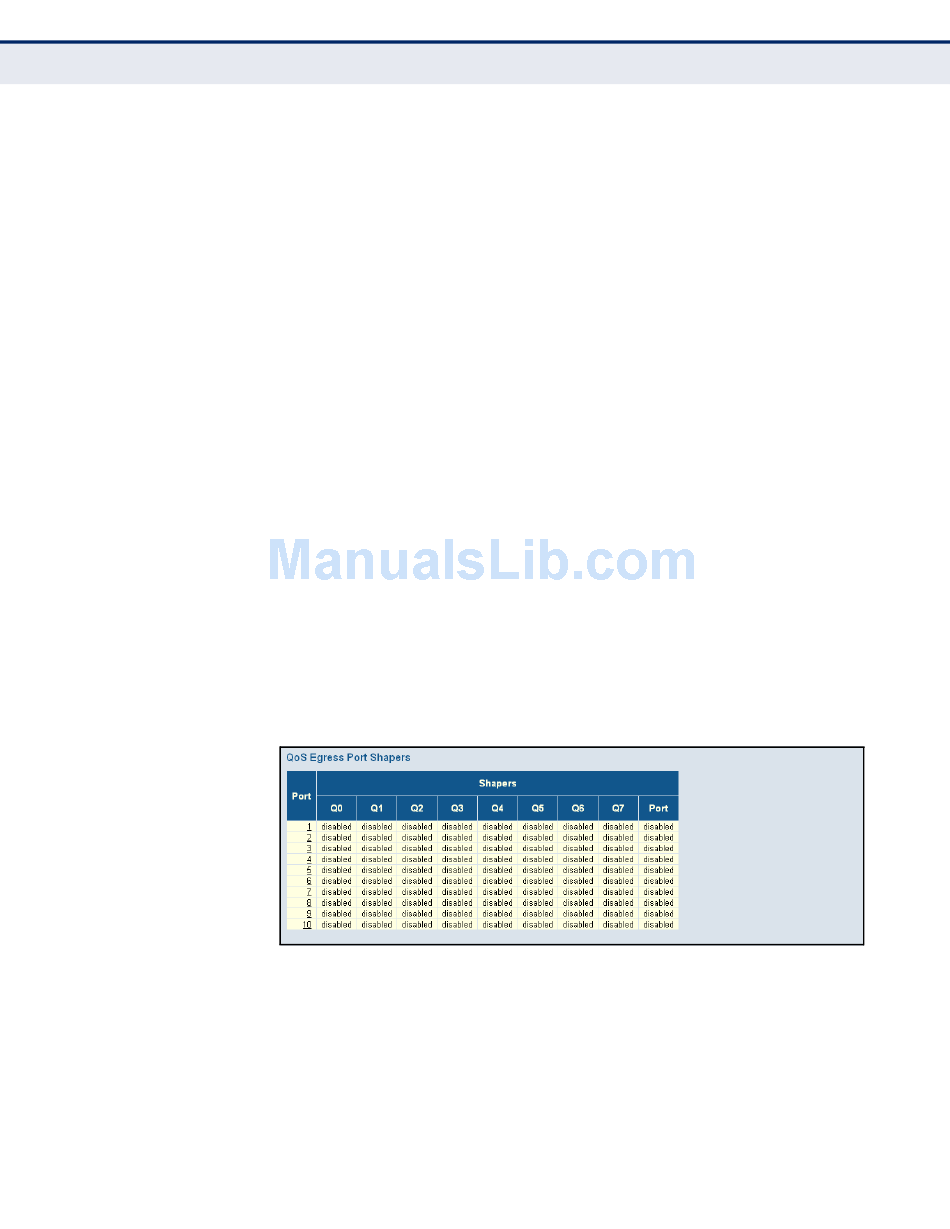

Figure 74: Displaying Egress Port Shapers

Use the QoS Egress Port Tag Remarking page to show an overview of QoS
Egress Port Tag Remarking mode. Click on any of the entries in the Port
field to configure the remarking mode using classified PCP/DEI values,
default PCP/DEI values, or mapped versions of QoS class and drop priority.
P
ATH
Configuration, QoS, Port Tag Remarking
– 181 –
C
HAPTER
Scheduler".
