| Monitoring the Switch
C 5
HAPTER

Displaying Information About Ports

D I
ISPLAYING NFORMATION
D P
ISPLAYING ORT
S O
TATUS N THE
F P
RONT ANEL
W I
EB NTERFACE
To display the current chip temperature, click Monitor, Thermal Protection.

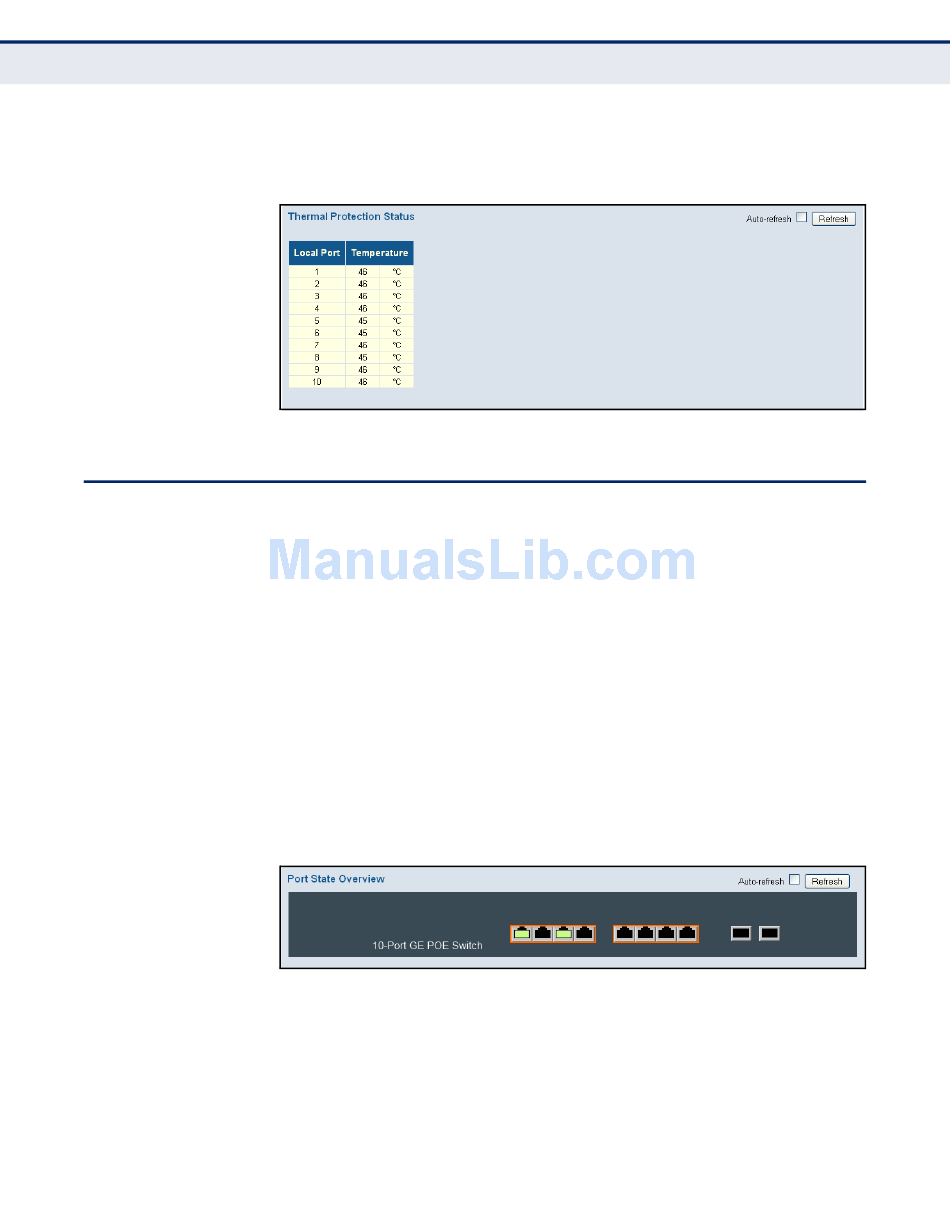

Figure 89: Thermal Protection Status

A P
BOUT ORTS
You can use the Monitor/Port menu to display a graphic image of the front
panel which indicates the connection status of each port, basic statistics on
the traffic crossing each port, the number of packets processed by each
service queue, or detailed statistics on port traffic.
Use the Port State Overview page to display an image of the switch's ports.
Clicking on the image of a port opens the Detailed Port Statistics page as
described on page 207.
P
ATH
Monitor, Ports, State
W I
EB NTERFACE
To display an image of the switch's ports, click Monitor, Ports, State.

Figure 90: Port State Overview

– 204 –
