V2 Leaves Received – The number of IGMP V2 leaves received.
◆
W I
EB NTERFACE
To display information for MVR statistics, click Monitor, MVR, Statistics.

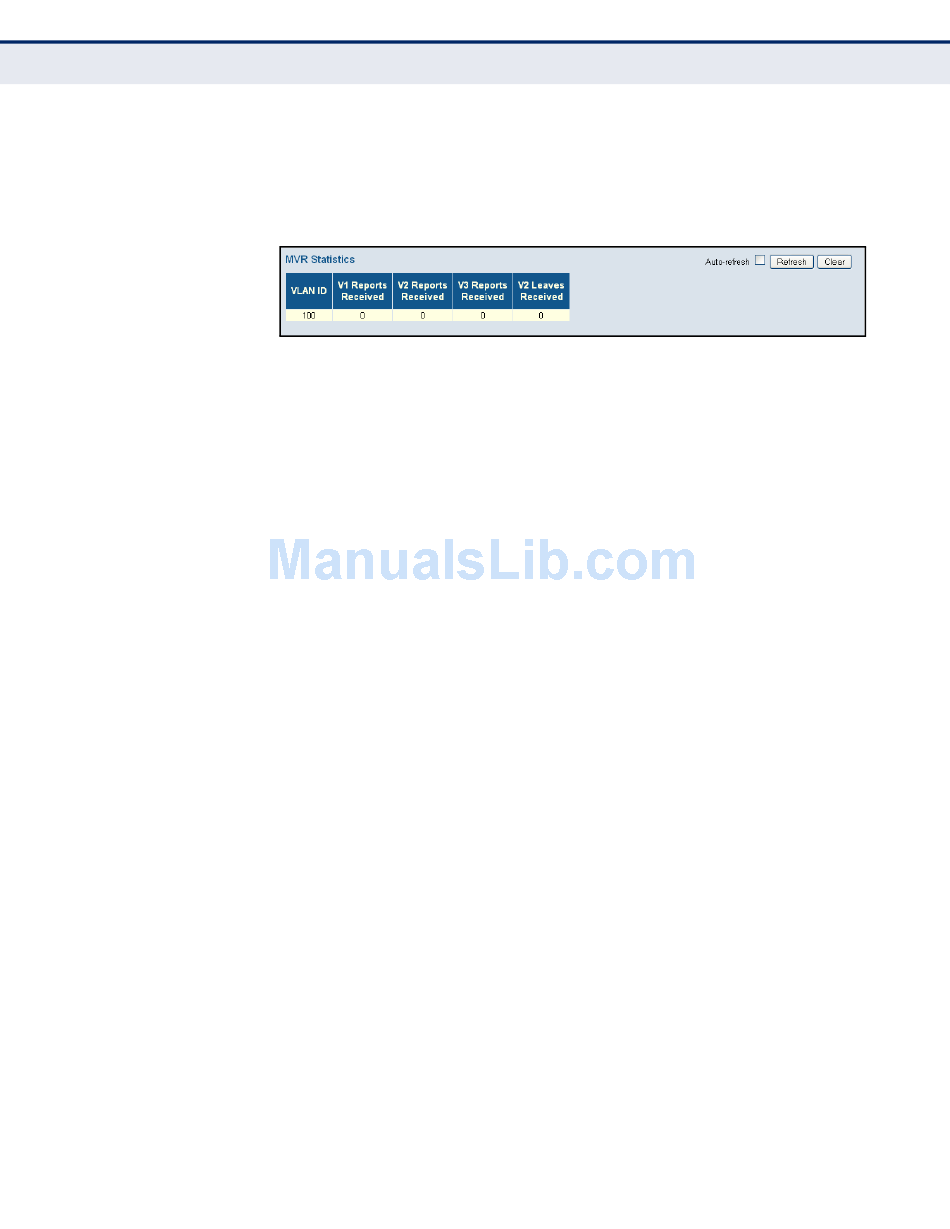

Figure 114: MVR Statistics

Use the MVR Group Information page to display statistics for IGMP protocol
messages used by MVR; and to shows information about the interfaces
associated with multicast groups assigned to the MVR VLAN.
P
ATH
Monitor, MVR, Group Information
P
ARAMETERS
These parameters are displayed:
Statistics
VLAN ID – Identifier of the VLAN that serves as the channel for
◆
streaming multicast services using MVR.
V1 Reports Received – The number of IGMP V1 reports received.
◆
◆ V2 Reports Received – The number of IGMP V2 reports received.
V3 Reports Received – The number of IGMP V3 reports received.
◆
V2 Leaves Received – The number of IGMP V2 leaves received.
◆
Multicast Groups
◆ VLAN ID – Identifier of the VLAN that serves as the channel for
streaming multicast services using MVR.
Groups – The present multicast groups. A maximum of 128 groups are
◆
allowed in the multicast VLAN.
Port Members – The ports that are members of the entry.
◆
