PVID – The native VLAN assigned to untagged frames entering this
◆
port.
VLAN Aware - Configures whether or not a port processes the
◆
VLAN ID in ingress frames. (Default: Disabled)
If a port is not VLAN aware, all frames are assigned to the default VLAN
(as specified by the Port VLAN ID) and tags are not removed.
If a port is VLAN aware, each frame is assigned to the VLAN indicated in
the VLAN tag, and the tag is removed.
◆
Ingress Filtering – If ingress filtering is enabled and the ingress port
is not a member of the classified VLAN of the frame, the frame is
discarded.
Frame Type – Shows whether the port accepts all frames or only
◆
tagged frames. If the port only accepts tagged frames, untagged
frames received on that port are discarded.
Tx Tag – Shows egress filtering frame status, indicating whether
◆
frames are transmitted as tagged or untagged.
◆
UVID – Shows the untagged VLAN ID. A port's UVID determines the
packet's behavior at the egress side. If the VID of Ethernet frames
leaving a port match the UVID, these frames will be sent untagged.
Conflicts – Shows whether conflicts exist or not. When a software
◆
module requests to set VLAN membership or VLAN port configuration,
the following conflicts can occur:
Functional conflicts between features.
■
Conflicts due to hardware limitations.
■
Direct conflicts between user modules.
■
W
I
EB
NTERFACE
To display VLAN port status, click Monitor, VLANs, VLAN Port.
1.
Select a software module from the drop-down list on the right side of
2.
the page.

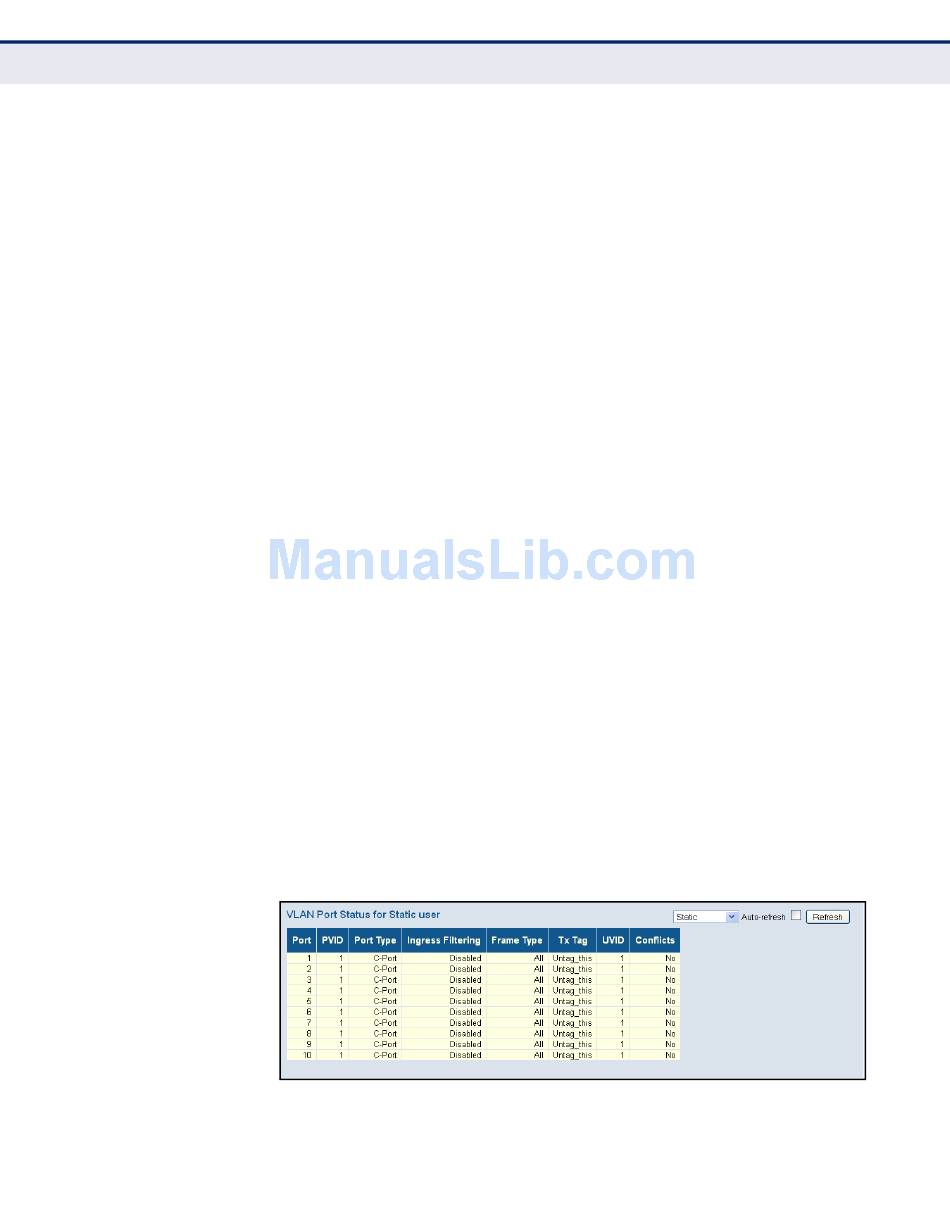

Figure 130: Showing VLAN Port Status
– 255 –
| Monitoring the Switch
C
5
HAPTER
Displaying Information About VLANs
