Thank you for purchasing our product. Before installing/operating the product, read the instructions carefully and retain them
for future reference.
Attention!
● For installation, follow the steps described. Any damage caused by wrong installation shall be imputed to the users.
● To avoid a short circuit from occurring do not pull or modify the wires during installation.
● Do not disassemble or change any parts. Opening and dissassembling this unit will void any warranty.
● Maintenance and repairs should be executed by our professionals only.
Symbol description:
NOTE
Some procedures must be followed to avoid damages to the product.
WARNING!
Certain procedure must be followed to avoid damages to yourself, to the vehicle or to others.

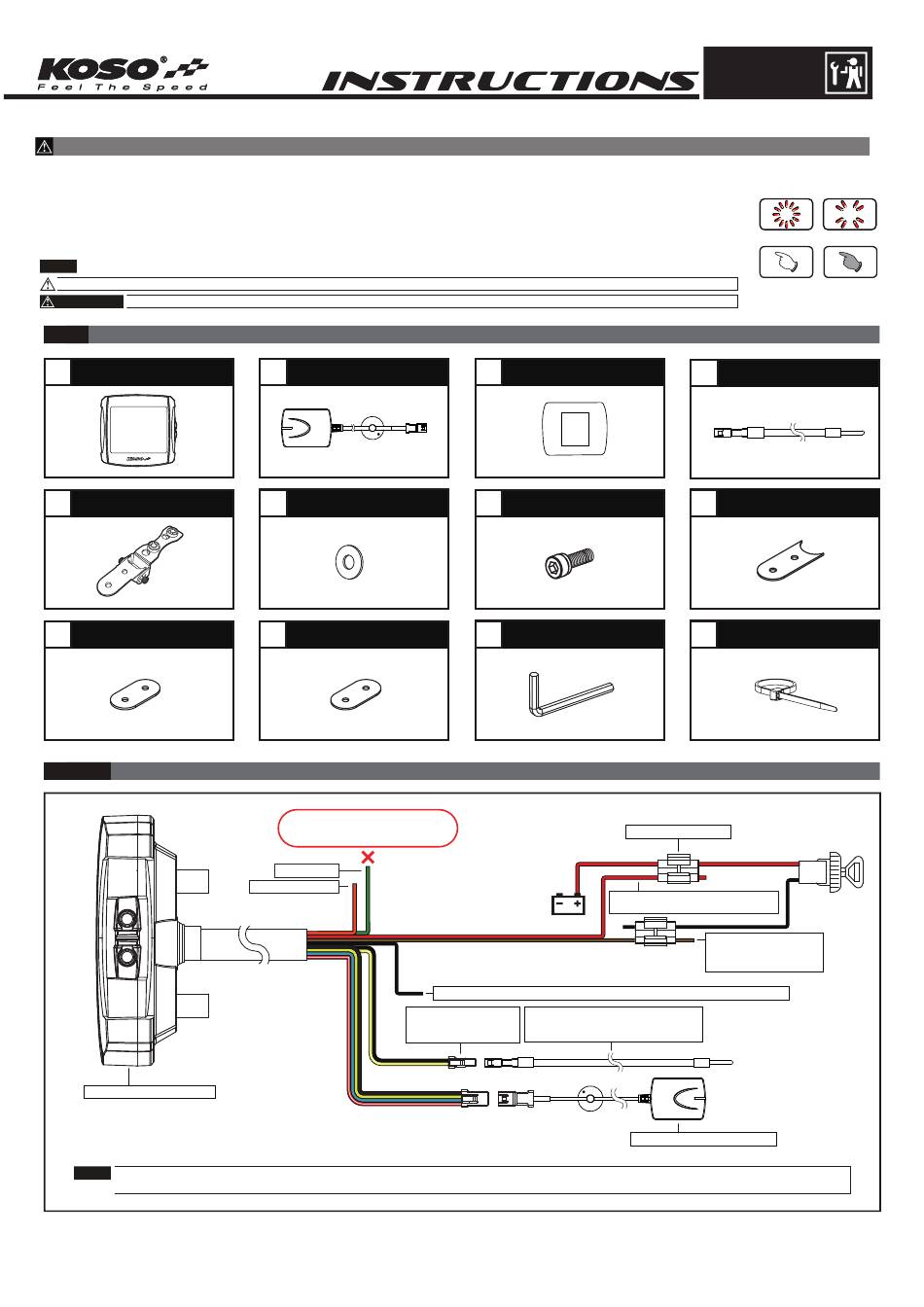

1-1
Accessories
1
LCD Meter X1
5
Meter bracket X1
9
Rubber Gasket X1
2-1-1
Wiring Installation Instructions (electric vehicle )
LCD Meter
(Accessory 1)
NOTE
When connecting the power wire, carefully follow the instructions. If the red & brown wires are connected in parallel, the meter won't
work properly.
2
GPS Module X1
6
M5 washer X2
10
Steel gasket X 1
Electric vehicles do not need
to connect fuel gauge wiring
Green-Fuel
Orange-SOC (+)
Yellow-white/black
-Temperature sensor
terminal
3
3M Adhesive Tape X1
7
M4x10xP0.7 screw X2
11
3mm Allen Key X1
Red / Postive pole
(Connect to the battery DC 12V)
Black / Ground wire connect to the negative pole of the battery.
Temperature sensor(Accessory 4)
Install the temp sensor
to the position.
Flash
Hold the
Button
1 second
4
Temperature sensor X1
8
Rubber Gasket X1
Zip Tie
12
(2.5x300 mm) X2
Midway connector
Brown - Positive wire
should be connected
to main power switch
GPS Module
(Accessory 2)
wh026bb13a(P10-1)
Light on
Hold the
Button
3 seconds

Advertisement

loading
Need help?

Need help?

Do you have a question about the XR-01G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Koso XR-01G

  • Page 1 Thank you for purchasing our product. Before installing/operating the product, read the instructions carefully and retain them for future reference. Attention! ● For installation, follow the steps described. Any damage caused by wrong installation shall be imputed to the users. ●...
  • Page 2: Installation Instructions

    2-1-2 Wiring Installation Instructions(gas vehicle) Gas vehicles do not need to be connected electric vehicle battery wiring Midway connector Orange-SOC (+) Green-Fuel Red / Postive pole (Connect to the battery DC 12V) Brown - Positive wire should be connected to main power switch Black / Ground wire connect to the negative pole of the battery.
  • Page 3: Meter Size

    Meter Size 24.0 mm 9.5 mm 79.2 mm Basic Function Instructions Clock Fuel meter ●Display range : 00:00~23:59 (24H) (When fuel function is enabled) GPS positioning success ●Display range : 6 Levels(0 ~ 100%) indicator Voltmeter ●Display unit : 1 Level(16.6 %) (When fuel gauge function is enabled) ●Display range : DC 8.0~24.0 V...
  • Page 4 Up button (Select) function switching instructions ●In the clock screen, press the Up button ●In the temperature screen, press the enter the volt screen. button to go back to the clock screen. ●Press Up button for 3 seconds ●Press Up button for 3 seconds to enter the fast setting for clock.
  • Page 5: Clock Settings

    Setting Screen Switching Description ●Press the Up + Down buttons for 3 seconds on the main screen(ODO) to switch to the setting screen. ●Press the Down button to select ❶Clock ❷Unit(Speed & Temp.) ❸Backlight(Brightness & Color) ❹Motor Oil Maintenance ❺Fuel resistance (Ω) ❻ LCD bar ❼Internal and External ODO. NOTE During setting, if button is not pressed in 30 seconds, it will automatically return to the startup screen.
  • Page 6 Unit (Speed & Temp.) Settings ●In the unit screen, press the Up button ●Example : To set temp. unit to ˚F. ●Press the button to choose Down to enter the speed unit setting. the setting options. Now the setting value is flashing. NOTE Setting range : ˚C (Celsius) ˚F (Fahrenheit).
  • Page 7 Motor Oil Maintenance Settings ●In the motor oil maintenance screen, ●EX : The motor oil maintenance setting press the Up button to enter the motor is changed from 300 mile to 800 mile. oil maintenance setting. ●Press the Up button to go back to the motor oil maintenance screen.
  • Page 8 ●EX : Auto Detection the highest fuel level resistance value is 10 Ω. ●Press the Up button 5 times to go back to the The highest position fuel gauge resistance screen. ●When the fuel surface sensor floats in the highest position then press the button, it will detect the resistance around 10 Ω.
  • Page 9 LCD bar Settings ●In the LCD bar screen, press the Up button ●EX : Set LCD bar from 48V to 72V. ●Press the Up button to go back to the to enter the LCD bar setting. LCD bar screen. NOTE Battery bar, when the fuel gauge function is selected OFF, it can be set to 48V or 72V by parameter setting.
  • Page 10: Troubleshooting

    5 Troubleshooting The following situations do not indicate malfunctions of the product. Check the following before taking it in for repair. Trouble Check item Trouble Check item The meter doesn't work ●The power isn't supplied to the meter. Fuel meter doesn't display ●Check your fuel tank.
