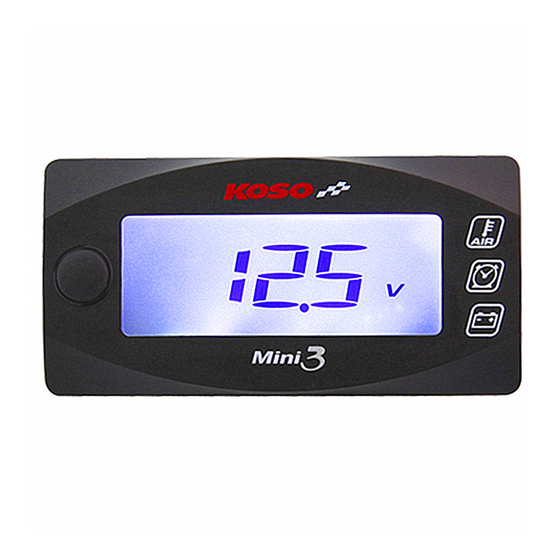

installation instruction
3
Functions
30 mm
60 mm
11.5 mm
Design and specifications are subject to change without notice!
Red positive wire should be
connected to the main power
switch (12v DC)
AMP meter
Display range 0~ 30.0A
Display unit 0.1A
Volt meter
Display range DC 6.0~19.9 V
Display unit 0.1 V
Low Voltage warning
Setting range DC 8.0~13.0 V
Setting unit 0.1 V
Voltage warning
When the voltage is below DC 11.5V or over 15.5V, the LCD display will flash to warn.
Effective voltage
Effective temperature range
Meter standard
Meter size
Meter weight
DC12V
o
-10~+60
C
JIS D 0203 S2
60 X 30 X 11.5 mm
+ - 22g
Advertisement
Table of Contents
Related Manuals for Koso MINI 3
Summary of Contents for Koso MINI 3

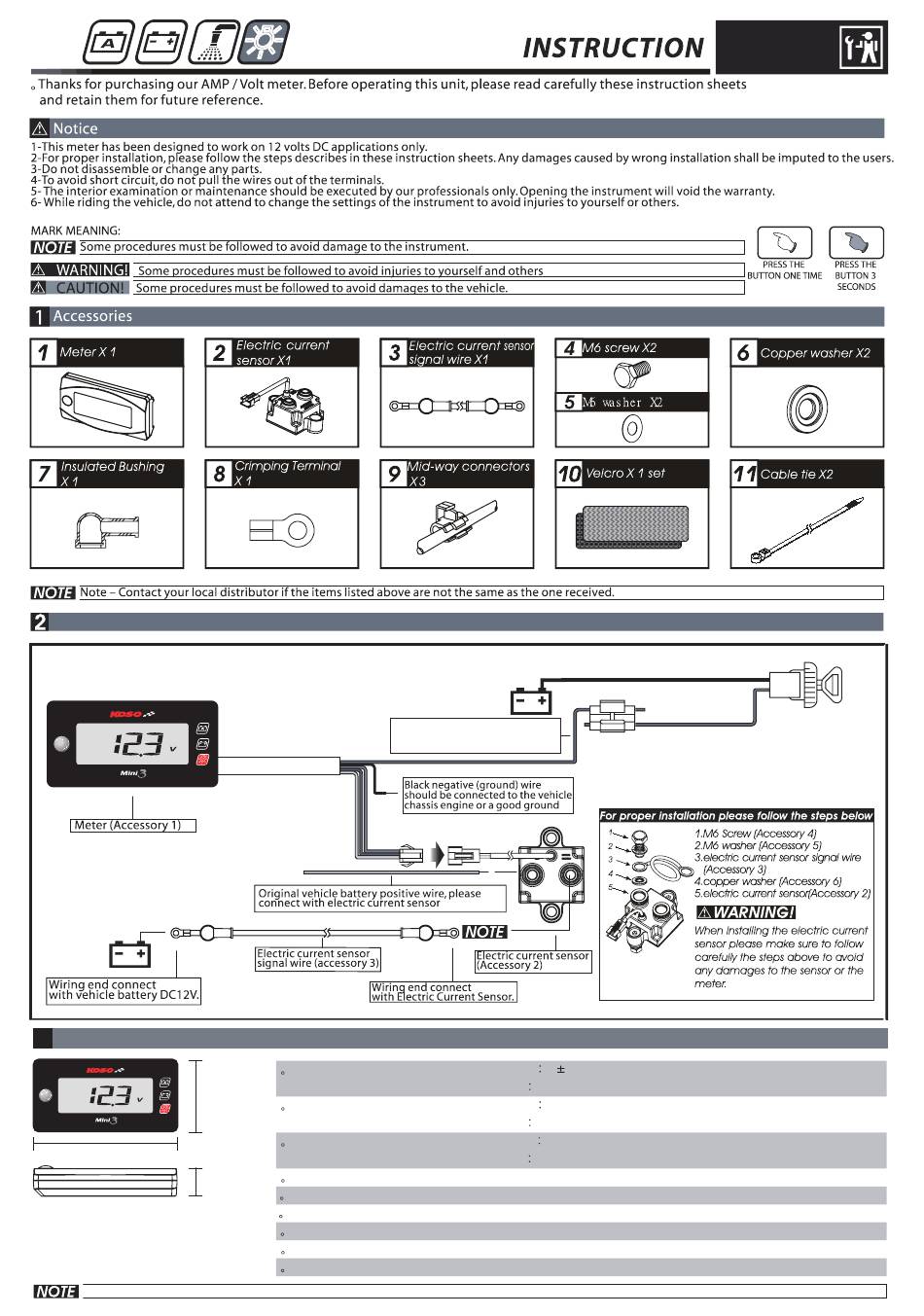

- Page 1 installation instruction Red positive wire should be connected to the main power switch (12v DC) Functions AMP meter Display range 0~ 30.0A Display unit 0.1A 30 mm Volt meter Display range DC 6.0~19.9 V Display unit 0.1 V Low Voltage warning Setting range DC 8.0~13.0 V 60 mm Setting unit 0.1 V...
