Installation of the Handle (Optional)
If you are not installing a panel over the door frame and would
like to use the provided handle on the stainless steel door trim,
follow the instructions below:

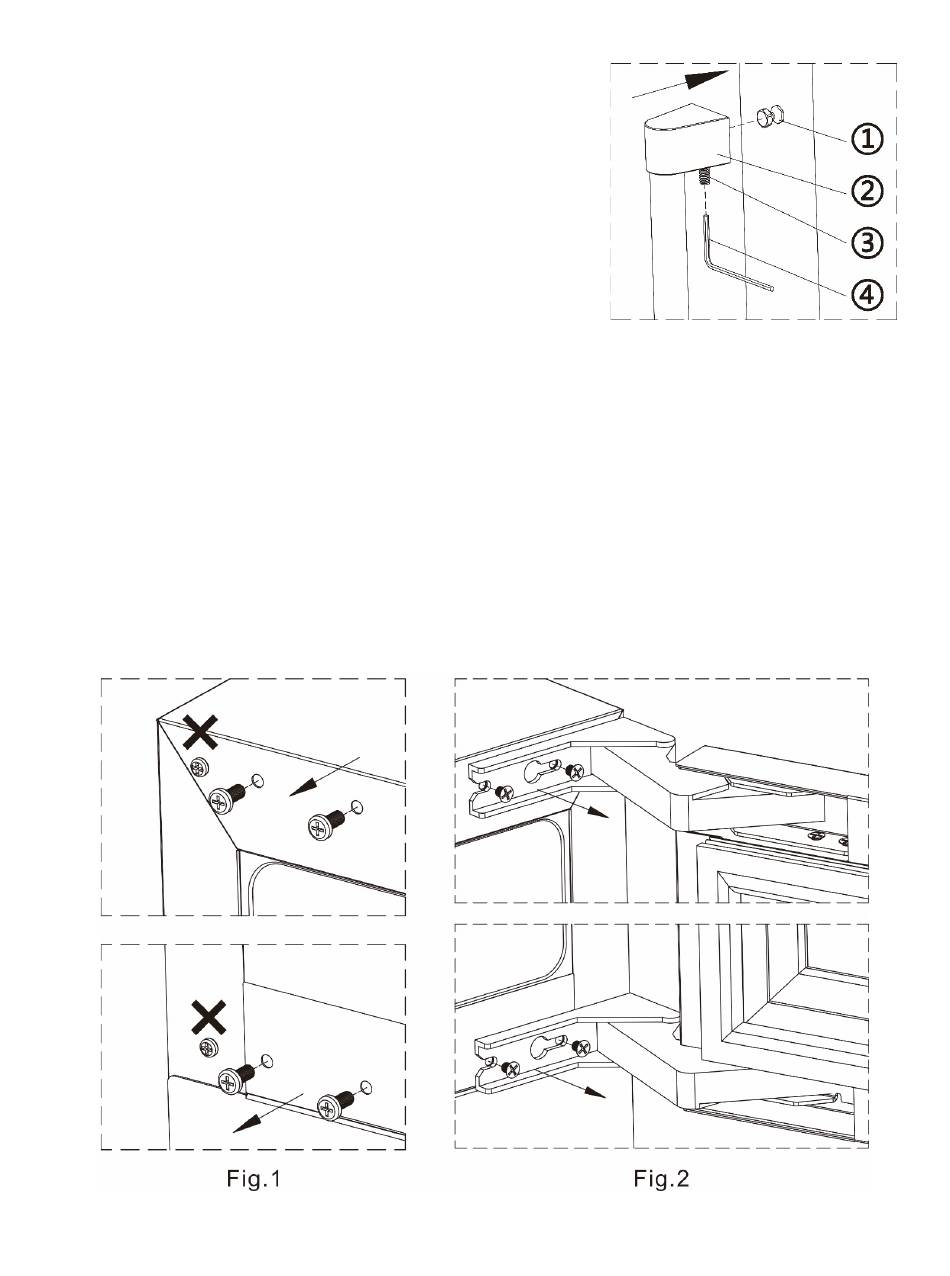

1. Place the handle② over the 2 mounting studs① on the
door frame with the set screws③ pointing down.
2.
Push the handle tightly against the door and tighten both of the
③
2 set screws
3.
Keep the Allen key in a safe place for future use.

Reversing the Door Swing

This appliance has the capability of the door opening from either the left or right side. The unit is delivered to
you with the door opening from the left side. Should you desire to reverse the opening direction, please
follow the instructions below:
1. Open the door.
2. Remove the screws from the upper and lower left corners of the unit using a Philips screwdriver. (Fig.1)
3. Remove the two screws of top and bottom hinge using a Philips screwdriver. (Fig.2)
WARNING: To prevent the door from falling off, it must be held by one person before the screws
are loosened by a second person.
4. Rotate the door 180°, align the hinge over screw hole and slide into position. Tighten screws on top and
bottom.
5. Remove the lock latch from the top of the door and reinstall it in the center mounting hole at the bottom
of the door.
6. Reinstall the previously removed screws back into the upper and lower right corners of the unit.
with the Allen key④.
9
