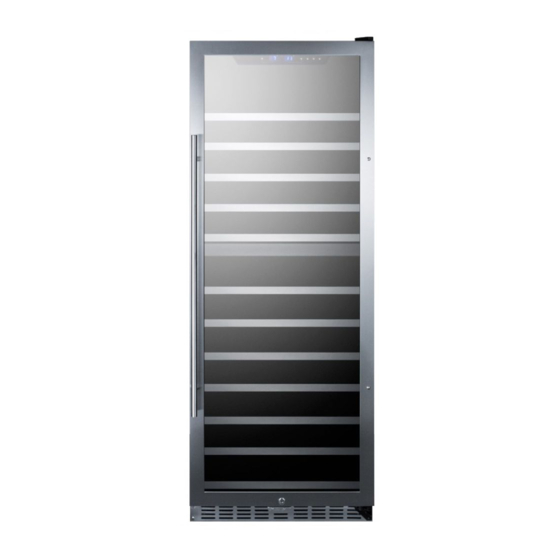

Summit SWC1380D Owner's Manual

Two-zone wine coolers
Hide thumbs
Table of Contents

Advertisement

Quick Links

TWO-ZONE WINE COOLERS
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Write Model and Serial
Numbers here:
_________________________
_________________________
Models SWC902D
SWC1380D
Owner's Manual
BEFORE USE, PLEASE READ AND FOLLOW
Felix Storch, Inc.
Summit Appliance Division
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWC1380D and is the answer not in the manual?

Questions and answers

Related Manuals for Summit SWC1380D

Summary of Contents for Summit SWC1380D

  • Page 1 SWC1380D Owner’s Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS Felix Storch, Inc. Write Model and Serial Summit Appliance Division Numbers here: An ISO 9001:2015 registered company _________________________ 770 Garrison Avenue Bronx, NY 10474 _________________________...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions  Read all instructions before using the wine cooler.  Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and do not use an extension cord.
  • Page 3  Although the unit has been tested at the factory, due to transit and storage, you should clean the appliance before use.  Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior. ...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ..............1 – 2 Location of Parts ....................4 Installation Instructions ................. 5 - 7 Before using your wine cooler ..............5 Installation of your wine cooler ..............5 Reversing the door swing of your appliance ........5 - 7 Operating Your Wine Cooler ..............

  • Page 5: Location Of Parts

    LOCATION OF PARTS Upper hinge Upper zone Glass door Control panel Full-size wooden shelves Handle Lower zone Baffle plate Short wooden shelf Key lock Ventilation grille Door seal (gasket) (kickplate) Adjustable legs NOTE: Each zone has a Ventilation fan and a Sensor located on the rear wall. An Active carbon filter is installed in the rear wall of the upper zone.

  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler Remove the exterior and interior packing. Before connecting the wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
  • Page 8 NOTE: All parts removed must be saved to allow the door swing to be reversed. 1. Carefully use a sharp tool to pry up the decorative cap at the top of the cabinet and also the cap of the door hinge (Fig.1). 2.

  • Page 9: Operating Your Wine Cooler

    OPERATING YOUR WINE COOLER The wine cooler should be placed where the ambient temperature is between 61 ° and 95 degrees Fahrenheit (16-35 C). If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extremely cold or hot conditions may cause interior temperatures to fluctuate.

  • Page 10: Door Lock

    ● LIGHT Button: This controls the LED cabinet light. NOTE: Once the light is turned on, it will shut off automatically after 10 minutes. ● °C/°F Button: Converts the temperature display to Celsius or Fahrenheit. ● ON/OFF Button: This turns the unit on or off. Press once to start the unit; press again to turn it off.

  • Page 11: To Remove Or Change The Position Of A Shelf

    Storage of Wine Bottles Your wine cooler was designed to store wine bottles in total security. Model SWC902D can hold up to 76 standard wine bottles, and model SWC1380D can hold up to 144. We recommend that you observe the following tips to optimize loading: ...

  • Page 12: Care And Maintenance

    CARE AND MAINTENANCE Cleaning Your Wine Cooler 1. Turn off the power, unplug the appliance, and remove all items including shelves and racks. 2. Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. 3.

  • Page 13: Problems With Your Wine Cooler

    PROBLEMS WITH YOUR WINE COOLER You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling a service technician. TROUBLESHOOTING GUIDE Problem Possible Cause...
  • Page 14 NOTES...
  • Page 15 NOTES...

  • Page 16: Limited Warranty

    LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
