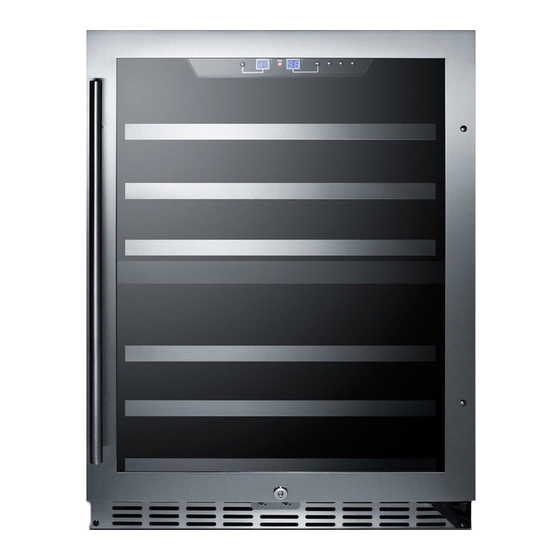

Summit SWC532LBIST Owner's Manual

Built-in two-zone wine cooler
Hide thumbs
Table of Contents

Advertisement

Quick Links

BUILT-IN TWO-ZONE WINE COOLER
Model SWC532LBIST
Owner's Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Felix Storch, Inc.
Summit Appliance Division
Write the Serial Number here:
770 Garrison Avenue
_________________________
Bronx, NY 10474
www.summitappliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWC532LBIST and is the answer not in the manual?

Questions and answers

Related Manuals for Summit SWC532LBIST

Summary of Contents for Summit SWC532LBIST

  • Page 1 BUILT-IN TWO-ZONE WINE COOLER Model SWC532LBIST Owner’s Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS Felix Storch, Inc. Summit Appliance Division Write the Serial Number here: 770 Garrison Avenue _________________________ Bronx, NY 10474 www.summitappliance.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ..............2 – 3 Location of Parts ................... 4 Installation Instructions ................5 – 7 Before Using Your Wine Cooler ............5 Installation of Your Wine Cooler ............. 5 - 6 Reversing the Door Swing .............. 6 - 7 Operating Your Wine Cooler ..............

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions • Read all instructions before using the wine cooler. • Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and do not use an extension cord.
  • Page 4 the appliance before use. • Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior. • Do not use this apparatus for other than residential purposes. • This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is environmentally friendly, but flammable.

  • Page 5: Location Of Parts

    LOCATION OF PARTS 7. Front vent 1. Control panel 8. Adjustable feet 2. Large shelf in upper zone 3. Air-duct board 9. Upper hinge 4. Large shelf in lower zone 10. Door (with handle and gasket) 5. Small shelf in lower zone 11.

  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler Remove the exterior and interior packing. Before connecting the wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

  • Page 7: Reversing The Door Swing

    temperatures may also cause the unit to perform improperly. Avoid locating the unit in moist areas. Do not use an extension cord. Plug the wine cooler into an exclusive, properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.
  • Page 8 NOTE: All parts removed must be saved to allow the door swing to be reversed 1. Carefully use a sharp tool to pry up the decorative cap on the top of the cabinet and the cap of the door spindle. (Fig 1) 2.

  • Page 9: Operating Your Wine Cooler

    OPERATING YOUR WINE COOLER The wine cooler should be placed where the ambient temperature is between 61 ° and 95 degrees Fahrenheit (16-35 C). If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extremely cold or hot conditions may cause interior temperatures to fluctuate and the range of 41-72 degrees Fahrenheit (5-22°C) may not be reached.

  • Page 10: Interior Light

    the internal cabinet temperature. The SET temperature is automatically saved. ° ° Upper chamber: Temperature setting can be adjusted from 41 to 54 F (5 to 12 ° Lower chamber : Temperature setting can be adjusted from 54 to 72 F (12 to °...

  • Page 11: Storage Of Wine Bottles

    Storage of Wine Bottles Your wine cooler was designed to store a maximum of 44 bottles in total security. We recommend that you observe the tips below to optimize loading: • Each of the four large shelves can hold 8 bottles, and the two smaller shelves can each hold 6 bottles, arranged as shown here: rear wall rear wall...

  • Page 12: To Remove A Sliding Shelf

    To Remove a Sliding Shelf 1. Remove all bottles from the shelf. 2. Pull the shelf out as far as it will go. 3. Adjust the lever on each side of the shelf, as shown below (down on the left, up on the right) and at the same time, pull the shelf out completely.

  • Page 13: Energy-Saving Tip

    Energy-Saving Tip The wine cooler should be located in the coolest area of the room, away from heat producing appliances and out of direct sunlight. TECHNICAL INFORMATION Model Number SWC532LBIST Volume 5.43 cu.ft. (154 liters) Bottle Capacity Rated Voltage 110V AC Rated Current 0.5A...

  • Page 14: Problems With Your Wine Cooler

    PROBLEMS WITH YOUR WINE COOLER You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling a service technician. TROUBLESHOOTING GUIDE Problem Possible Cause...
  • Page 15 NOTES...

  • Page 16: Limited Warranty

    LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
